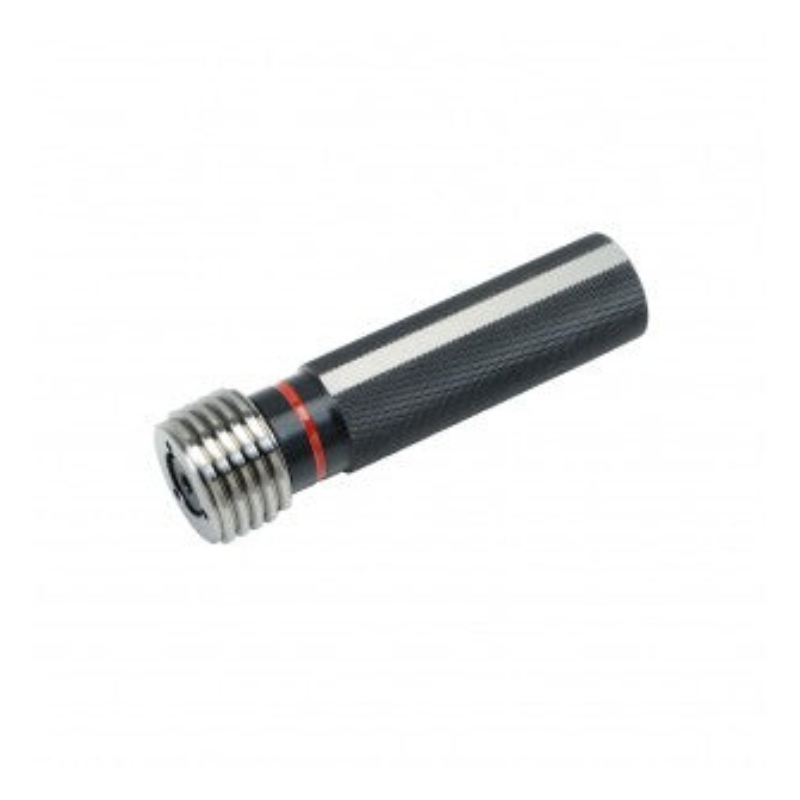

VCOIL Plug Gauge (NoGo) - UNF (STI) - Heli Coil Gauge - Right Hand - 3B - 1.3/8 x 12
| Thread Form | UNF (STI) |
| Size | 1.3/8 |
| Pitch | 12 |
| Gauge Type | Plug Gauge (NoGo) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
Introducing the VCOIL Plug Gauge NoGo for UNF (STI) – a precise, combined go/no-go gauge designed for Helicoil insert applications. Built for right-hand UNF threads at 1-3/8 x 12 with a 3B tolerance, it helps shops verify thread quality quickly and consistently.
- Combined Go/No-Go design: A single gauge that tests both the go condition (hand-screws into the thread) and the no-go condition (scrap side limits how far it can be turned).
- UNF (STI) thread form: Specifically calibrated for right-hand UNF threads, 1-3/8 x 12, with a 3B class tolerance to match Helicoil insert specifications.
- ANSI/ASME compliant: Manufactured and assessed according to relevant ANSI/ASME threading standards for reliable, repeatable measurements.
- Scrap marking with red ring: The scrap side is clearly identified by a red ring to prevent misreads during inspection.
- Right-hand orientation: Optimized for right-hand threads to support standard machining and assembly workflows.
- 20°C reference temperature: Measurements reference at 20°C to ensure consistency across parts and gauges in production environments.
This plug gauge supports efficient quality control by quickly confirming thread adherence and preventing misfits in Helicoil installations. Its knurled exterior and precision threading provide reliable handling and longevity, making it a dependable choice for manufacturing, assembly, and maintenance operations that rely on precise UNF threads.
Part Numbers
- Protool Part Number
- TC-19941
- Brand
- VCOIL
- Category
- Gauge
