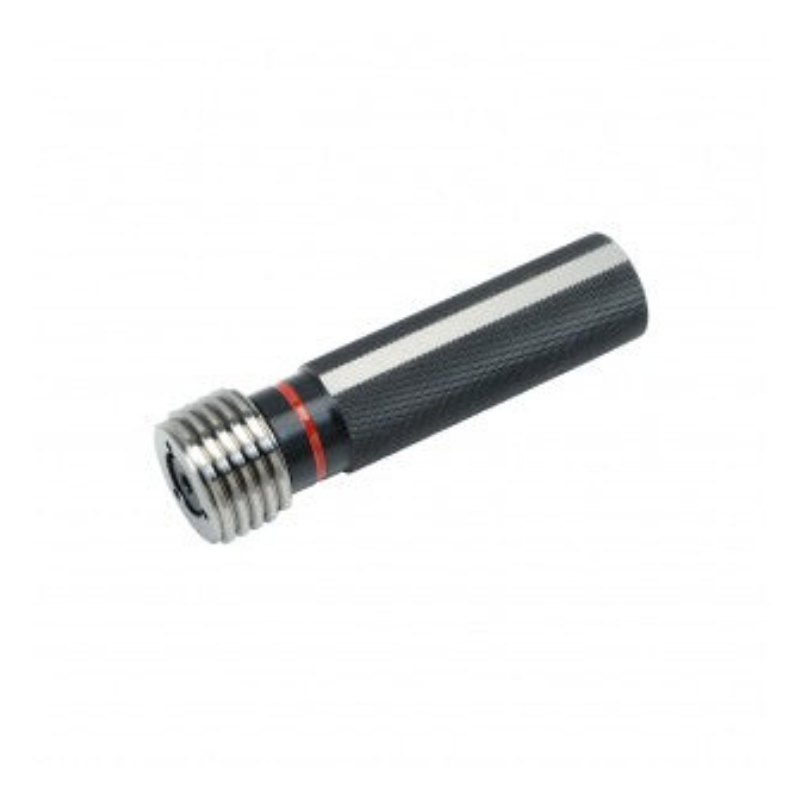

VCOIL Plug Gauge (NoGo) - UNF (STI) - Heli Coil Gauge - Right Hand - 2B - 1.1/2 x 12
| Thread Form | UNF (STI) |
| Size | 1.1/2 |
| Pitch | 12 |
| Gauge Type | Plug Gauge (NoGo) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
The VCOIL Plug Gauge (NoGo) is a UNF thread go/no-go gauge designed for precise inspection of internal threads. Built as a Right Hand Helicoil gauge, it provides quick, reliable verification of ANSI/ASME thread standards.
- Thread Standard: UNF (STI) per ANSI/ASME threading system
- Gauge Type: Go/No-Go thread plug gauge (combines go and scrap checks)
- Handedness: Right Hand configuration
- Size / Thread: 1.1/2 x 12
- Grade: 2B
- Scrap Ring Marking: Scrap side is marked with a red ring
- Compliance: Manufactured and assessed to ANSI standards for thread gauges
- Reference Temperature: 20° Celsius
The go end must screw into the threaded cut in a part by hand, without using excessive force. If it cannot, the thread does not meet the required standard (scrap). The scrap end should not be able to be screwed in more than two full turns into the cut thread, without using excessive force. This ensures accurate conformance checks and helps prevent misfits in assembly. The 20° Celsius reference temperature provides consistent results across measurement conditions.
Part Numbers
- Protool Part Number
- TC-19843
- Brand
- VCOIL
- Category
- Gauge
