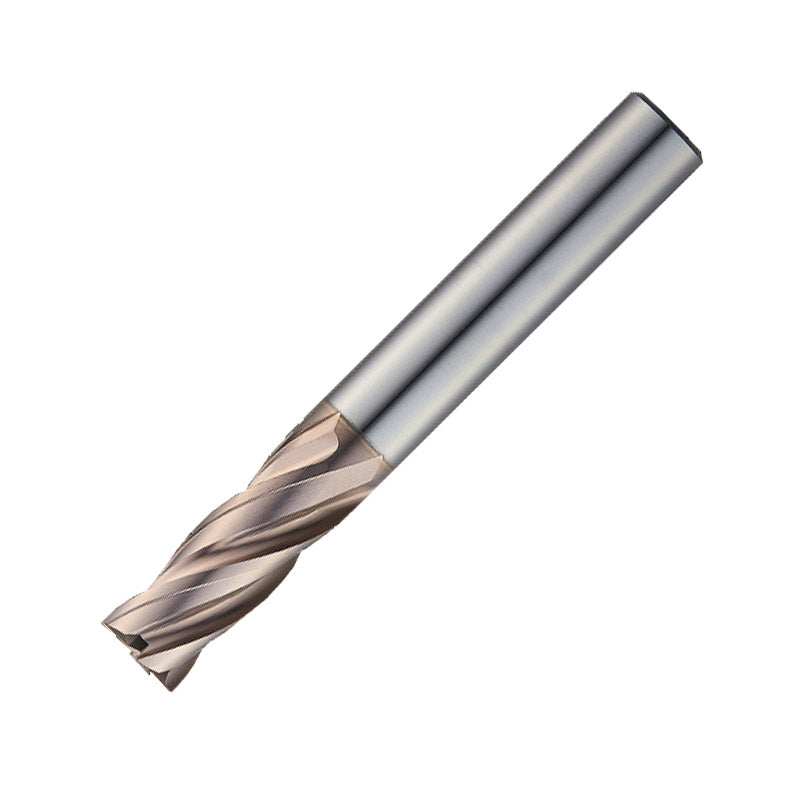

Widin Carbide Square End Mill For Mold & Die - 4 Flute Variable - 1mm
| Cutter Diameter | 1 |
| Number of Flutes | 4 |
| Flute Length | 2.5 |
| Overall Length | 50 |
Learn more about Klarna
Description
The Widin Carbide Square End Mill for Mold & Die is a high-performance cutting tool built for precision mold and die work. It covers a wide cutting diameter range from 0.8mm to 25.0mm and maintains a tight tolerance of +0/-0.03mm, ensuring accurate and repeatable cuts across intricate features.
Featuring a variable-index flute design and a durable coating, this end mill combats chatter and vibration while boosting overall tool life. Its 4-flute geometry, with a 29° helix on the first flute and 31° on the second, delivers smooth cutting and reliable performance on demanding materials.
- Wide diameter range with tight tolerance: Versatile for many mold and die features, providing precise results from 0.8mm up to 25.0mm with a +0/-0.03mm tolerance for dependable accuracy.
- Variable-index 4-flute design for stability: Reduces chatter and vibration, extending tool life and delivering consistent finishes even in tough materials thanks to the tailored helix angles on the initial flutes.
- Durable carbide with W coating: Combines premium carbide with a W coating to boost wear resistance, heat management, and overall longevity for reliable production on pre-hardened steel, alloy steel, and carbon steel below 55 HRc.
Designed for reliability and efficiency, this end mill helps you maintain tight tolerances, improve surface finishes, and reduce tool changes across a variety of mold and die applications. It supports faster, more consistent machining workflows, giving you confidence in every cut from detailed cavities to broader shoulders.
Part Numbers
- Protool Part Number
- UE504010
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 4 Flute Variable (WME504)
View full collection →You are viewing UE504010. Click any other SKU to view its full details.

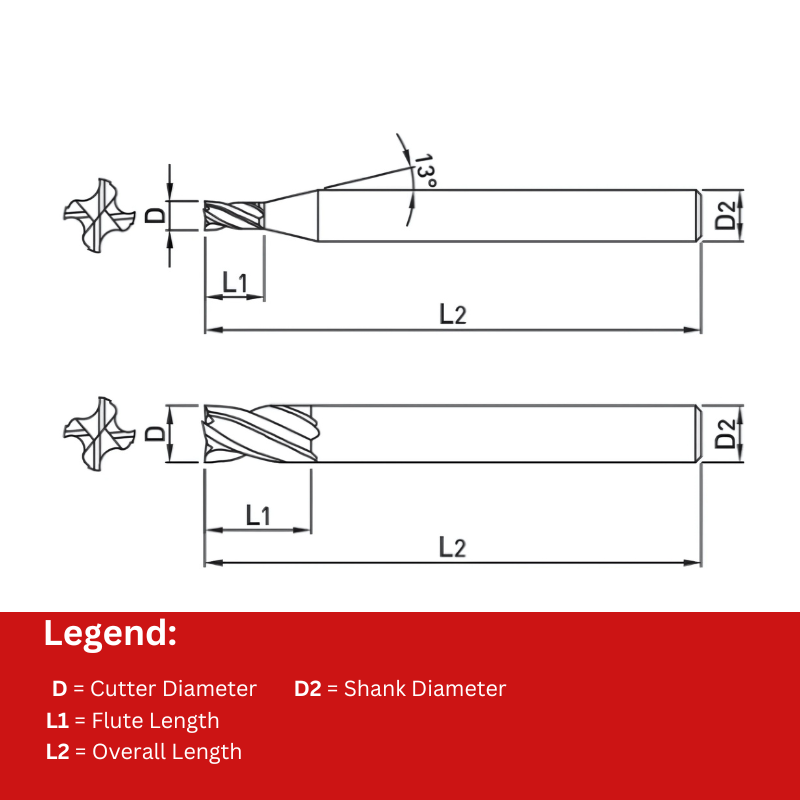

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE504009 | 0.9 | 4 | 1.8 | 40 | 4 | £22.65 | 5 days | |
| UE504008 | 0.8 | 4 | 1.6 | 40 | 4 | £22.65 | 5 days | |
| UE504010 Viewing | 1 | 4 | 2.5 | 50 | 6 | £23.33 | 5 days | |
| UE504015 | 1.5 | 4 | 4 | 50 | 6 | £23.33 | 5 days | |
| UE504012 | 1.2 | 4 | 3 | 50 | 6 | £23.33 | 5 days | |
| UE504020 | 2 | 4 | 6 | 50 | 6 | £23.33 | 5 days | |
| UE504025 | 2.5 | 4 | 7 | 50 | 6 | £23.33 | 5 days | |
| UE504030 | 3 | 4 | 8 | 50 | 6 | £23.33 | 5 days | |
| UE504035 | 3.5 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UE504040 | 4 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UE504045 | 4.5 | 4 | 14 | 50 | 6 | £23.33 | 5 days | |
| UE504050 | 5 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504055 | 5.5 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504060 | 6 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504065 | 6.5 | 4 | 18 | 60 | 8 | £41.73 | 5 days | |
| UE504070 | 7 | 4 | 20 | 60 | 8 | £41.73 | 5 days | |
| UE504075 | 7.5 | 4 | 20 | 60 | 8 | £41.73 | 5 days | |
| UE504080 | 8 | 4 | 20 | 70 | 8 | £43.50 | 5 days | |
| UE504085 | 8.5 | 4 | 22 | 70 | 10 | £60.23 | 5 days | |
| UE504095 | 9.5 | 4 | 24 | 70 | 10 | £60.23 | 5 days | |
| UE504090 | 9 | 4 | 22 | 70 | 10 | £60.23 | 5 days | |
| UE504100 | 10 | 4 | 25 | 75 | 10 | £61.50 | 5 days | |
| UE504105 | 10.5 | 4 | 26 | 75 | 12 | £88.85 | 5 days | |
| UE504110 | 11 | 4 | 30 | 75 | 12 | £88.85 | 5 days | |
| UE504120 | 12 | 4 | 30 | 80 | 12 | £89.20 | 5 days | |
| UE504115 | 11.5 | 4 | 30 | 80 | 12 | £89.20 | 5 days | |
| UE504130 | 13 | 4 | 35 | 100 | 12 | £173.20 | 5 days | |
| UE504140S14 | 14 | 4 | 35 | 100 | 14 | £255.30 | 5 days | |
| UE504140 | 14 | 4 | 35 | 100 | 16 | £301.55 | 5 days | |
| UE504140S12 | 14 | 4 | 35 | 100 | 12 | £199.23 | 5 days | |
| UE504150 | 15 | 4 | 38 | 100 | 16 | £301.55 | 5 days | |
| UE504180 | 18 | 4 | 45 | 100 | 18 | £415.00 | 5 days | |
| UE504160 | 16 | 4 | 40 | 100 | 16 | £301.55 | 5 days | |
| UE504170 | 17 | 4 | 42 | 100 | 16 | £369.38 | 5 days | |
| UE504180S16 | 18 | 4 | 45 | 100 | 16 | £381.80 | 5 days | |
| UE504190 | 19 | 4 | 45 | 100 | 20 | £463.00 | 5 days | |
| UE504200 | 20 | 4 | 45 | 100 | 20 | £463.00 | 5 days | |
| UE504210 | 21 | 4 | 45 | 100 | 20 | £606.25 | 5 days | |
| UE504220 | 22 | 4 | 45 | 100 | 20 | £606.25 | 5 days | |
| UE504230 | 23 | 4 | 50 | 120 | 25 | £735.75 | 5 days | |
| UE504240 | 24 | 4 | 50 | 120 | 25 | £735.75 | 5 days | |
| UE504250 | 25 | 4 | 50 | 120 | 25 | £735.75 | 5 days |
