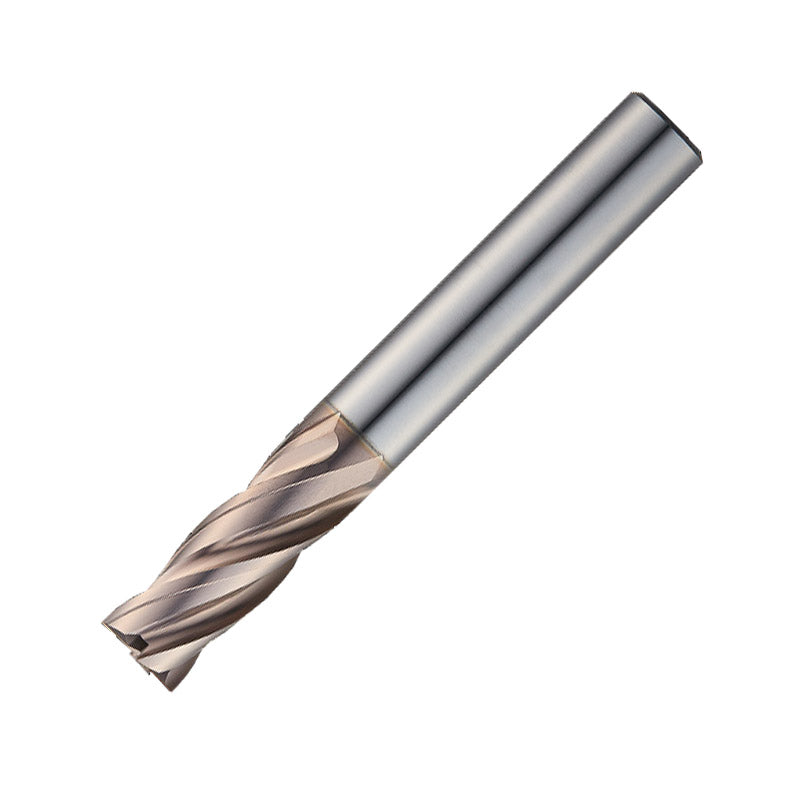

Widin Carbide Square End Mill For Mold & Die - 4 Flute Variable - 9mm
| Cutter Diameter | 9 |
| Number of Flutes | 4 |
| Flute Length | 22 |
| Overall Length | 70 |
Learn more about Klarna
Description
Meet the Widin Carbide Square End Mill for Mold & Die—a high‑performance cutting tool designed for precision mold and die work. This 9mm, 4‑flute end mill covers a versatile diameter range (0.8 mm to 25.0 mm) with a tight tolerance of +0/−0.03 mm, delivering accurate, repeatable results for a wide variety of features and materials. Designed for mold and die applications below 55 HRc, it also handles pre‑hardened steel, alloy steel, and carbon steel with reliability and consistent performance.
- Variable-index flutes for smoother cutting: The first flute at 29°, the second at 31°, reduce chatter and resonance to extend tool life and produce steadier finishes on hard materials.
- W coating for durability: A robust coating that enhances wear resistance and thermal stability, helping the tool last longer and maintain stable performance during demanding cuts.
- Wide diameter range with tight tolerance: 0.8–25.0 mm cutting range and +0/−0.03 mm tolerance allow multiple features with one tool, reducing setup time and tool changes while preserving precision.
This end mill helps you streamline your workflow by delivering reliable, precise results across a broad set of mold and die tasks. Its combination of durable materials, specialized coating, and optimized flute geometry supports faster setup, cleaner surfaces, and longer tool life—giving you confidence to tackle complex components in steels below 55 HRc and related alloys without compromising quality.
Part Numbers
- Protool Part Number
- UE504090
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 4 Flute Variable (WME504)
View full collection →You are viewing UE504090. Click any other SKU to view its full details.

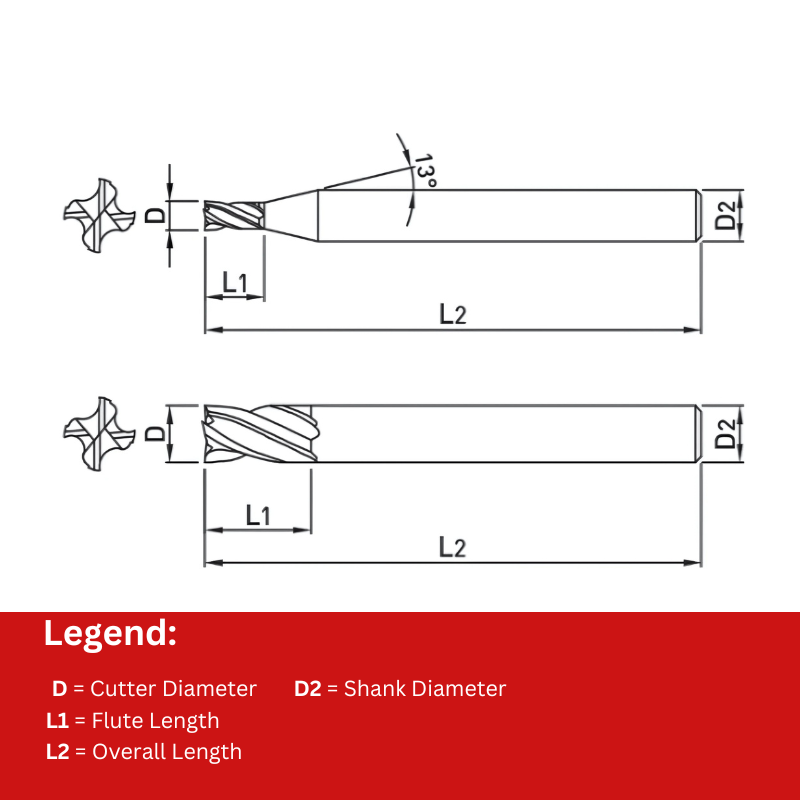

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE504009 | 0.9 | 4 | 1.8 | 40 | 4 | £22.65 | 5 days | |
| UE504008 | 0.8 | 4 | 1.6 | 40 | 4 | £22.65 | 5 days | |
| UE504010 | 1 | 4 | 2.5 | 50 | 6 | £23.33 | 5 days | |
| UE504015 | 1.5 | 4 | 4 | 50 | 6 | £23.33 | 5 days | |
| UE504012 | 1.2 | 4 | 3 | 50 | 6 | £23.33 | 5 days | |
| UE504020 | 2 | 4 | 6 | 50 | 6 | £23.33 | 5 days | |
| UE504025 | 2.5 | 4 | 7 | 50 | 6 | £23.33 | 5 days | |
| UE504030 | 3 | 4 | 8 | 50 | 6 | £23.33 | 5 days | |
| UE504035 | 3.5 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UE504040 | 4 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UE504045 | 4.5 | 4 | 14 | 50 | 6 | £23.33 | 5 days | |
| UE504050 | 5 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504055 | 5.5 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504060 | 6 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504065 | 6.5 | 4 | 18 | 60 | 8 | £41.73 | 5 days | |
| UE504070 | 7 | 4 | 20 | 60 | 8 | £41.73 | 5 days | |
| UE504075 | 7.5 | 4 | 20 | 60 | 8 | £41.73 | 5 days | |
| UE504080 | 8 | 4 | 20 | 70 | 8 | £43.50 | 5 days | |
| UE504085 | 8.5 | 4 | 22 | 70 | 10 | £60.23 | 5 days | |
| UE504095 | 9.5 | 4 | 24 | 70 | 10 | £60.23 | 5 days | |
| UE504090 Viewing | 9 | 4 | 22 | 70 | 10 | £60.23 | 5 days | |
| UE504100 | 10 | 4 | 25 | 75 | 10 | £61.50 | 5 days | |
| UE504105 | 10.5 | 4 | 26 | 75 | 12 | £88.85 | 5 days | |
| UE504110 | 11 | 4 | 30 | 75 | 12 | £88.85 | 5 days | |
| UE504120 | 12 | 4 | 30 | 80 | 12 | £89.20 | 5 days | |
| UE504115 | 11.5 | 4 | 30 | 80 | 12 | £89.20 | 5 days | |
| UE504130 | 13 | 4 | 35 | 100 | 12 | £173.20 | 5 days | |
| UE504140S14 | 14 | 4 | 35 | 100 | 14 | £255.30 | 5 days | |
| UE504140 | 14 | 4 | 35 | 100 | 16 | £301.55 | 5 days | |
| UE504140S12 | 14 | 4 | 35 | 100 | 12 | £199.23 | 5 days | |
| UE504150 | 15 | 4 | 38 | 100 | 16 | £301.55 | 5 days | |
| UE504180 | 18 | 4 | 45 | 100 | 18 | £415.00 | 5 days | |
| UE504160 | 16 | 4 | 40 | 100 | 16 | £301.55 | 5 days | |
| UE504170 | 17 | 4 | 42 | 100 | 16 | £369.38 | 5 days | |
| UE504180S16 | 18 | 4 | 45 | 100 | 16 | £381.80 | 5 days | |
| UE504190 | 19 | 4 | 45 | 100 | 20 | £463.00 | 5 days | |
| UE504200 | 20 | 4 | 45 | 100 | 20 | £463.00 | 5 days | |
| UE504210 | 21 | 4 | 45 | 100 | 20 | £606.25 | 5 days | |
| UE504220 | 22 | 4 | 45 | 100 | 20 | £606.25 | 5 days | |
| UE504230 | 23 | 4 | 50 | 120 | 25 | £735.75 | 5 days | |
| UE504240 | 24 | 4 | 50 | 120 | 25 | £735.75 | 5 days | |
| UE504250 | 25 | 4 | 50 | 120 | 25 | £735.75 | 5 days |
