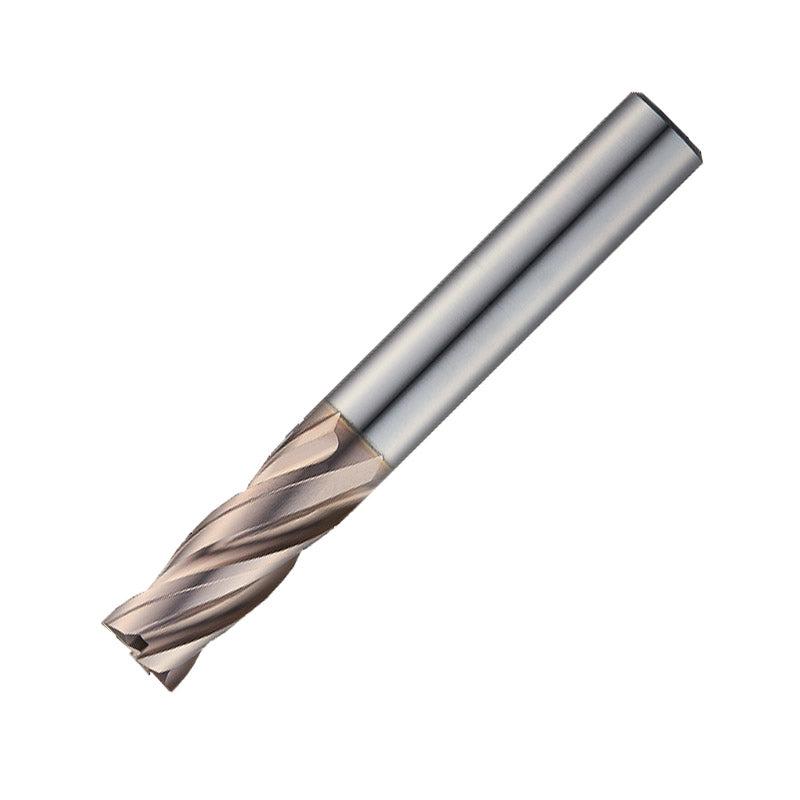

Widin Carbide Square End Mill For Mold & Die - 4 Flute Variable - 17mm

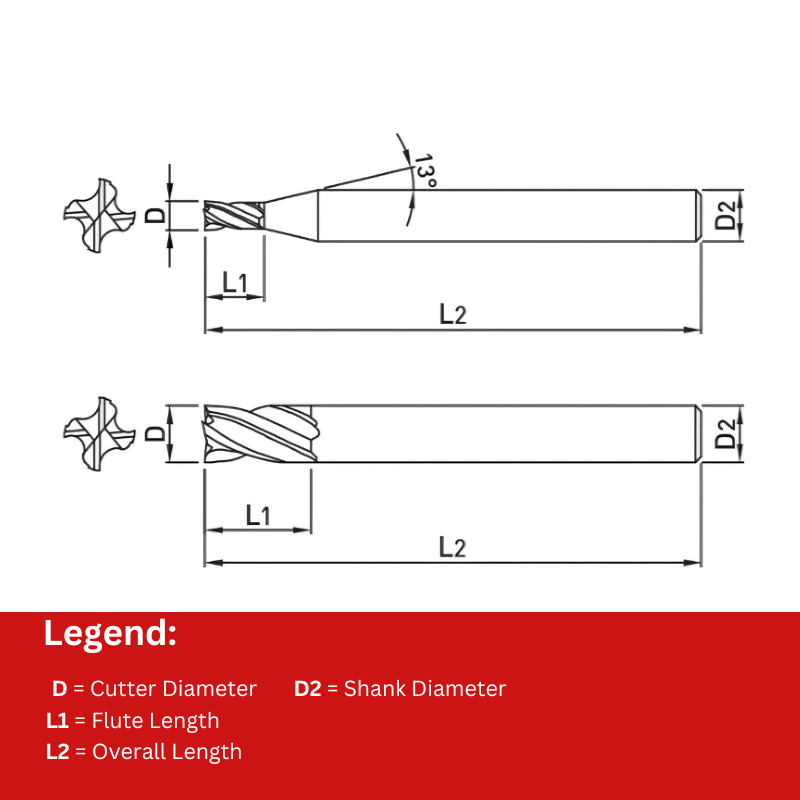

| Cutter Diameter | 17 |
| Number of Flutes | 4 |
| Flute Length | 42 |
| Overall Length | 100 |
Learn more about Klarna
Description
The Widin Carbide Square End Mill for Mold & Die - 4 Flute Variable - 17mm is a high-performance cutting tool engineered for precision mold and die work. With a cutting diameter range from 0.8 mm to 25.0 mm, it covers a wide spectrum of pockets, slots, and shoulders, making it a versatile choice for both prototyping and production. This tool is designed for engineers, machinists, and shop floors seeking consistent, repeatable results.
It features a tight diameter tolerance of +0/-0.03 mm for precise cuts and reliable interchangeability. The 4-flute, variable-index design uses a 29° helix for the first flute and 31° for the second, reducing chatter and extending tool life. A robust W coating enhances wear resistance and machining stability, supporting mold and die work on materials below 55 HRc, including pre-hardened steel, alloy steel, and carbon steel.
- Versatile diameter range from 0.8 mm to 25.0 mm: Enables a wide variety of pockets, slots, and contours with a single tool, reducing tool changes and downtime while delivering consistent, accurate results.
- Chatter-reducing variable-index flutes: The staggered 29° and 31° helix angles minimize vibrations, improve surface finish, and extend tool life in demanding mold-and-die applications.
- Durable carbide with W coating: Provides superior wear resistance and machining stability for tough steels, delivering longer tool life and dependable performance across multiple jobs.
This end mill is designed to provide reliable, high-quality results in mold and die operations, from delicate pockets to aggressive shoulder cuts. Its combination of broad versatility, vibration control, and durable construction supports faster workflows, fewer tool changes, and improved overall performance across a range of materials and production environments.
Part Numbers
- Protool Part Number
- UE504170
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 4 Flute Variable (WME504)
View full collection →You are viewing UE504170. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE504009 | 0.9 | 4 | 1.8 | 40 | 4 | £22.65 | 5 days | |
| UE504008 | 0.8 | 4 | 1.6 | 40 | 4 | £22.65 | 5 days | |
| UE504010 | 1 | 4 | 2.5 | 50 | 6 | £23.33 | 5 days | |
| UE504015 | 1.5 | 4 | 4 | 50 | 6 | £23.33 | 5 days | |
| UE504012 | 1.2 | 4 | 3 | 50 | 6 | £23.33 | 5 days | |
| UE504020 | 2 | 4 | 6 | 50 | 6 | £23.33 | 5 days | |
| UE504025 | 2.5 | 4 | 7 | 50 | 6 | £23.33 | 5 days | |
| UE504030 | 3 | 4 | 8 | 50 | 6 | £23.33 | 5 days | |
| UE504035 | 3.5 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UE504040 | 4 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UE504045 | 4.5 | 4 | 14 | 50 | 6 | £23.33 | 5 days | |
| UE504050 | 5 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504055 | 5.5 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504060 | 6 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UE504065 | 6.5 | 4 | 18 | 60 | 8 | £41.73 | 5 days | |
| UE504070 | 7 | 4 | 20 | 60 | 8 | £41.73 | 5 days | |
| UE504075 | 7.5 | 4 | 20 | 60 | 8 | £41.73 | 5 days | |
| UE504080 | 8 | 4 | 20 | 70 | 8 | £43.50 | 5 days | |
| UE504085 | 8.5 | 4 | 22 | 70 | 10 | £60.23 | 5 days | |
| UE504095 | 9.5 | 4 | 24 | 70 | 10 | £60.23 | 5 days | |
| UE504090 | 9 | 4 | 22 | 70 | 10 | £60.23 | 5 days | |
| UE504100 | 10 | 4 | 25 | 75 | 10 | £61.50 | 5 days | |
| UE504105 | 10.5 | 4 | 26 | 75 | 12 | £88.85 | 5 days | |
| UE504110 | 11 | 4 | 30 | 75 | 12 | £88.85 | 5 days | |
| UE504120 | 12 | 4 | 30 | 80 | 12 | £89.20 | 5 days | |
| UE504115 | 11.5 | 4 | 30 | 80 | 12 | £89.20 | 5 days | |
| UE504130 | 13 | 4 | 35 | 100 | 12 | £173.20 | 5 days | |
| UE504140S14 | 14 | 4 | 35 | 100 | 14 | £255.30 | 5 days | |
| UE504140 | 14 | 4 | 35 | 100 | 16 | £301.55 | 5 days | |
| UE504140S12 | 14 | 4 | 35 | 100 | 12 | £199.23 | 5 days | |
| UE504150 | 15 | 4 | 38 | 100 | 16 | £301.55 | 5 days | |
| UE504180 | 18 | 4 | 45 | 100 | 18 | £415.00 | 5 days | |
| UE504160 | 16 | 4 | 40 | 100 | 16 | £301.55 | 5 days | |
| UE504170 Viewing | 17 | 4 | 42 | 100 | 16 | £369.38 | 5 days | |
| UE504180S16 | 18 | 4 | 45 | 100 | 16 | £381.80 | 5 days | |
| UE504190 | 19 | 4 | 45 | 100 | 20 | £463.00 | 5 days | |
| UE504200 | 20 | 4 | 45 | 100 | 20 | £463.00 | 5 days | |
| UE504210 | 21 | 4 | 45 | 100 | 20 | £606.25 | 5 days | |
| UE504220 | 22 | 4 | 45 | 100 | 20 | £606.25 | 5 days | |
| UE504230 | 23 | 4 | 50 | 120 | 25 | £735.75 | 5 days | |
| UE504240 | 24 | 4 | 50 | 120 | 25 | £735.75 | 5 days | |
| UE504250 | 25 | 4 | 50 | 120 | 25 | £735.75 | 5 days |
