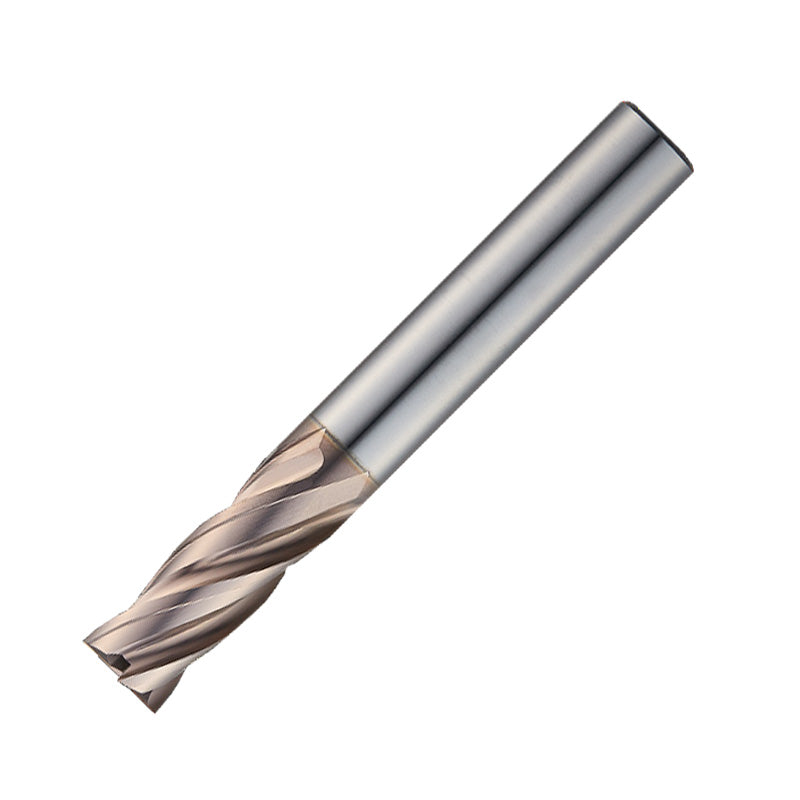

Widin Carbide Square End Mill For Mold & Die - Variable Index 4 Flute For Powerful Cutting - 4mm x 10mm

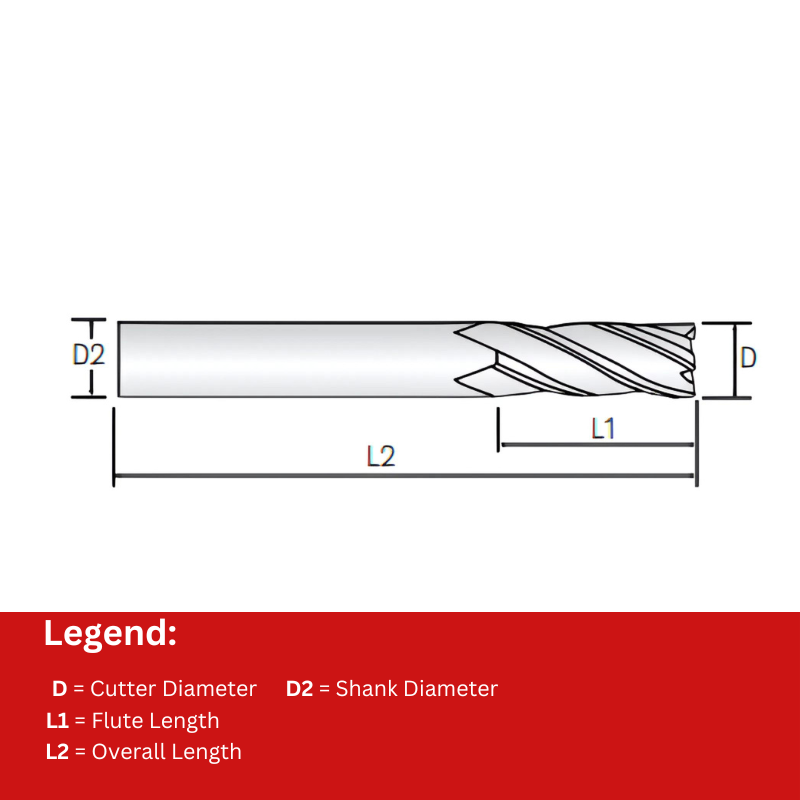

| Cutter Diameter | 4 |
| Number of Flutes | 4 |
| Flute Length | 10 |
| Overall Length | 50 |
Learn more about Klarna
Description
Widin Carbide Square End Mill for Mold & Die is a high‑performance milling tool designed for demanding mold and die work. Sized at 4 mm x 10 mm, it features a 4‑flute, variable‑index design to deliver powerful cutting across a range of workpieces. Its cutting diameter range spans 1.0 mm to 20.0 mm with a tight tolerance of +0/−0.03 mm, giving you precise results across different applications.
The tool uses variable index flutes with dual helix angles of 29° and 31°, which help reduce chatter and resonance, extending tool life and providing stable, consistent cuts. A gash tooth shape is incorporated to prevent flute chipping, enhancing durability and reliability. The W coating further boosts wear resistance and longevity, making it well suited for challenging mold and die operations on materials below 55 HRc, including pre‑hardened steel, alloy steel, and carbon steel.
- Wide cutting range with tight tolerance: Delivers precise, repeatable cuts from 1.0 mm to 20.0 mm diameter with +0/−0.03 mm accuracy for versatile mold and die applications.
- Variable index 4‑flute design with dual helix: 29° and 31° helix angles reduce chatter and resonance, improving stability and extending tool life during heavy or continuous cutting.
- Gash tooth and W coating for durability: Gash geometry minimizes flute chipping while the W coating strengthens wear resistance, enabling reliable performance on steels below 55 HRc, including pre‑hardened, alloy, and carbon steels.
This end mill is built for professionals who value consistent performance, reduced downtime, and dependable results in demanding mold and die projects. Its combination of precise sizing, chatter‑mitigating geometry, and wear‑resistant coating helps you finish parts faster with fewer reworks, supporting smoother workflows and improved overall machining outcomes.
Part Numbers
- Protool Part Number
- UXE504040
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - Variable Index 4 Flute For Powerful Cutting (WXE504)
View full collection →You are viewing UXE504040. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UXE504010 | 1 | 4 | 2.5 | 50 | 6 | £23.33 | 5 days | |
| UXE50401001 | 1 | 4 | 1 | 40 | 6 | £22.38 | 5 days | |
| UXE50401002 | 1 | 4 | 2 | 40 | 6 | £22.38 | 5 days | |
| UXE50401004 | 1 | 4 | 4 | 50 | 6 | £23.33 | 5 days | |
| UXE50401006 | 1 | 4 | 6 | 50 | 6 | £23.33 | 5 days | |
| UXE50401003 | 1 | 4 | 3 | 50 | 6 | £23.33 | 5 days | |
| UXE504012 | 1.2 | 4 | 3 | 50 | 6 | £23.33 | 5 days | |
| UXE50401202 | 1.2 | 4 | 2 | 40 | 6 | £22.38 | 5 days | |
| UXE50401204 | 1.2 | 4 | 4 | 50 | 6 | £23.33 | 5 days | |
| UXE504015 | 1.5 | 4 | 4 | 50 | 6 | £23.33 | 5 days | |
| UXE50401206 | 1.2 | 4 | 6 | 50 | 6 | £23.33 | 5 days | |
| UXE50401503 | 1.5 | 4 | 3 | 40 | 6 | £22.38 | 5 days | |
| UXE50401506 | 1.5 | 4 | 6 | 50 | 6 | £23.33 | 5 days | |
| UXE504015015 | 1.5 | 4 | 1.5 | 40 | 6 | £22.38 | In Stock | |
| UXE50401508 | 1.5 | 4 | 8 | 50 | 6 | £23.33 | 5 days | |
| UXE50401510 | 1.5 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UXE504020 | 2 | 4 | 6 | 50 | 6 | £23.33 | 5 days | |
| UXE50402002 | 2 | 4 | 2 | 40 | 6 | £22.38 | 5 days | |
| UXE50402004 | 2 | 4 | 4 | 40 | 6 | £22.38 | In Stock | |
| UXE50402008 | 2 | 4 | 8 | 50 | 6 | £23.33 | 5 days | |
| UXE50402010 | 2 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UXE50402012 | 2 | 4 | 12 | 50 | 6 | £23.33 | 5 days | |
| UXE504025025 | 2.5 | 4 | 2.5 | 40 | 6 | £22.38 | In Stock | |
| UXE504025 | 2.5 | 4 | 7 | 50 | 6 | £23.33 | In Stock | |
| UXE50402505 | 2.5 | 4 | 5 | 40 | 6 | £22.38 | In Stock | |
| UXE50402510 | 2.5 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UXE504030 | 3 | 4 | 8 | 50 | 6 | £23.33 | 5 days | |
| UXE50403003 | 3 | 4 | 3 | 40 | 6 | £22.38 | In Stock | |
| UXE50403006 | 3 | 4 | 6 | 40 | 6 | £22.38 | 5 days | |
| UXE50402512 | 2.5 | 4 | 12 | 50 | 6 | £23.33 | 5 days | |
| UXE50403012 | 3 | 4 | 12 | 50 | 6 | £23.33 | 5 days | |
| UXE50403010 | 3 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UXE50403014 | 3 | 4 | 14 | 50 | 6 | £23.33 | 5 days | |
| UXE504040 Viewing | 4 | 4 | 10 | 50 | 6 | £23.33 | In Stock | |
| UXE50404004 | 4 | 4 | 4 | 40 | 6 | £22.38 | In Stock | |
| UXE50404008 | 4 | 4 | 8 | 40 | 6 | £22.38 | In Stock | |
| UXE50404012 | 4 | 4 | 12 | 50 | 6 | £23.33 | 5 days | |
| UXE50404014 | 4 | 4 | 14 | 50 | 6 | £23.33 | 5 days | |
| UXE50404016 | 4 | 4 | 16 | 50 | 6 | £23.33 | In Stock | |
| UXE504050 | 5 | 4 | 15 | 60 | 6 | £24.83 | In Stock | |
| UXE50405005 | 5 | 4 | 5 | 50 | 6 | £23.33 | In Stock | |
| UXE50405010 | 5 | 4 | 10 | 50 | 6 | £23.33 | 5 days | |
| UXE50405020 | 5 | 4 | 20 | 60 | 6 | £24.83 | 5 days | |
| UXE504060 | 6 | 4 | 15 | 60 | 6 | £24.83 | 5 days | |
| UXE50405025 | 5 | 4 | 25 | 60 | 6 | £24.83 | In Stock | |
| UXE50406006 | 6 | 4 | 6 | 50 | 6 | £23.33 | In Stock | |
| UXE50406012 | 6 | 4 | 12 | 50 | 6 | £23.33 | 5 days | |
| UXE50406020 | 6 | 4 | 20 | 60 | 6 | £24.83 | 5 days | |
| UXE50406025 | 6 | 4 | 25 | 60 | 6 | £24.83 | 5 days | |
| UXE50408016 | 8 | 4 | 16 | 60 | 8 | £41.88 | In Stock | |
| UXE504080 | 8 | 4 | 20 | 70 | 8 | £43.50 | 5 days | |
| UXE50408025 | 8 | 4 | 25 | 70 | 8 | £43.50 | 5 days | |
| UXE50408030 | 8 | 4 | 30 | 70 | 8 | £43.50 | In Stock | |
| UXE504100 | 10 | 4 | 25 | 75 | 10 | £61.50 | 5 days | |
| UXE50410022 | 10 | 4 | 22 | 65 | 10 | £59.13 | 5 days | |
| UXE50410035 | 10 | 4 | 35 | 75 | 10 | £61.50 | 5 days | |
| UXE50410030 | 10 | 4 | 30 | 75 | 10 | £61.50 | 5 days | |
| UXE504120 | 12 | 4 | 30 | 80 | 12 | £89.20 | 5 days | |
| UXE50412026 | 12 | 4 | 26 | 70 | 12 | £85.95 | 5 days | |
| UXE50412040 | 12 | 4 | 40 | 80 | 12 | £89.20 | 5 days | |
| UXE504140 | 14 | 4 | 35 | 100 | 16 | £301.55 | 5 days | |
| UXE504160 | 16 | 4 | 40 | 100 | 16 | £301.55 | 5 days | |
| UXE50412035 | 12 | 4 | 35 | 80 | 12 | £89.20 | 5 days | |
| UXE504180 | 18 | 4 | 45 | 100 | 20 | £463.00 | 5 days | |
| UXE50416032 | 16 | 4 | 32 | 100 | 16 | £301.55 | 5 days | |
| UXE504200 | 20 | 4 | 45 | 100 | 20 | £463.00 | In Stock |
