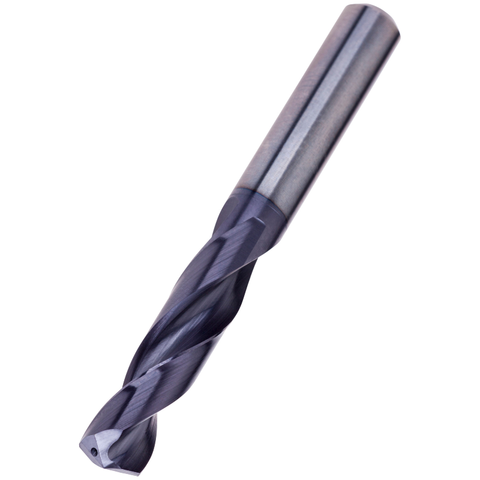

Dormer Pramet R467 12.50 mm CARBIDE TIALN FORCE-M STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K

The Dormer Pramet R467 12.50 mm carbide drill is a high-performance cutting tool designed for stainless steel and other heat‑resistant alloys. Built from premium carbide and finished with a Titanium Aluminium Nitride (TiAlN) coating, it delivers long tool life and dependable results in demanding applications. Its short stepped shank (X3D) fits DIN 6537 K holders for compact setups, while delivering high-precision, H9-tolerance holes.

The 140° four‑facet split point provides self‑centering starts with reduced push force, helping you begin holes cleanly and minimize wandering in tough materials.

• 140° Four-Facet Split Point: Self‑centering start with less push force, improving initial hole accuracy and reducing wander in stainless steel and other hard alloys.
• TiAlN Coating for Extended Life: Increases wear resistance and edge retention, delivering longer tool life and reliable performance under demanding cutting conditions.
• CTW Flute Design with Coolant Feed: Enhanced flute geometry and coolant delivery support higher cutting speeds and feeds, better chip evacuation, and stronger overall drill performance.

Designed for consistency and efficiency, this drill helps you achieve precise, high-quality holes quickly while standing up to repeated use in challenging materials. The combination of a robust carbide core, TiAlN coating, and advanced flute geometry translates to reliable performance, reduced tooling costs per hole, and greater confidence during production runs.
