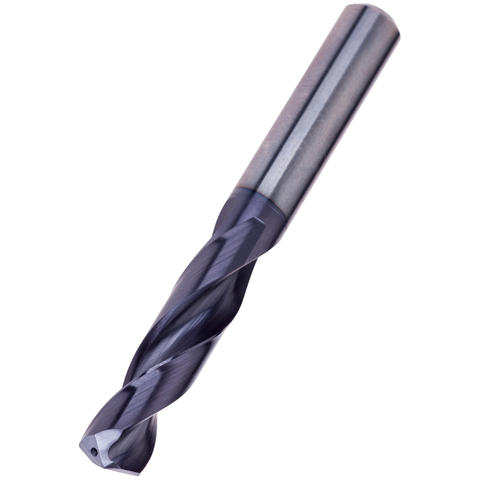

Dormer Pramet R467 19/32 Inch CARBIDE TIALN FORCE-M STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K
SKU:DOR-R46719/32
This carbide drill bit is engineered for machinists and fabricators who need reliable, accurate holes in stainless steel and heat-resistant alloys. Its stepped shank, short overall length, and co...
Read more ↓
Material Compatibility
M
S
Specifications at a glance
View all specifications ↓
| Type | Short Series |
| Drill Diameter | 19/32 |
| Flute Length | 65 |
| Overall Length | 115 |
£207.53
Prices shown ex. VAT
2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description
This carbide drill bit is engineered for machinists and fabricators who need reliable, accurate holes in stainless steel and heat-resistant alloys. Its stepped shank, short overall length, and coolant-through design make it a practical choice for production drilling where speed, consistency, and hole quality matter.
- Reduced Drilling Force: The 140-degree 4-facet split point centers itself on contact and lowers the push force required, helping operators start holes accurately without pilot drilling.
- Extended Service Life in Hard Materials: Titanium aluminum nitride coating shields the cutting edges during high-speed work, allowing the drill to maintain performance longer when cutting stainless and super alloys.
- Higher Cutting Speeds with Strength: The coolant-through flute profile adds rigidity while delivering fluid directly to the tip, supporting faster feeds and producing holes to h9 tolerance without deflection.
By combining durable carbide construction with efficient coolant delivery and a self-centering point, this drill supports consistent results at elevated speeds and feeds, helping users complete jobs faster with fewer tool changes and secondary finishing steps.
Part Numbers
- Protool Part Number
- DOR-R46719/32
- Brand
- Dormer Pramet
- Category
- Drill
No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: Dormer Pramet R467 CARBIDE TIALN FORCE-M STEPPED SHANK SHORT SERIES (X3D) DRILLS DIN 6537 K
View full collection →You are viewing DOR-R46719/32. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| DOR-R4673.0 | 3.00 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.1 | 3.10 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4671/8 | 1/8 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.2 | 3.20 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.3 | 3.30 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.4 | 3.40 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R467N29 | 3.45 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.5 | 3.50 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4679/64 | 9/64 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.6 | 3.60 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.7 | 3.70 | 20 | 62 | 6 | £64.11 | 2 days | |
| DOR-R4673.8 | 3.80 | 24 | 66 | 6 | £64.11 | 2 days | |
| DOR-R4673.9 | 3.90 | 24 | 66 | 6 | £64.11 | 2 days | |
| DOR-R4675/32 | 5/32 | 24 | 66 | 6 | £64.11 | 2 days | |
| DOR-R4674.0 | 4.00 | 24 | 66 | 6 | £64.11 | 2 days | |
| DOR-R4674.05 | 4.05 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.1 | 4.10 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.2 | 4.20 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.3 | 4.30 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R46711/64 | 11/64 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.4 | 4.40 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.5 | 4.50 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.6 | 4.60 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.7 | 4.70 | 24 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4673/16 | 3/16 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.8 | 4.80 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4674.9 | 4.90 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.0 | 5.00 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.05 | 5.05 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.1 | 5.10 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R467N7 | 5.11 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R46713/64 | 13/64 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.2 | 5.20 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R467N5 | 5.22 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.3 | 5.30 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.4 | 5.40 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.5 | 5.50 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4677/32 | 7/32 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.6 | 5.60 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.7 | 5.70 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.8 | 5.80 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4675.9 | 5.90 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R46715/64 | 15/64 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4676.0 | 6.00 | 28 | 66 | 6 | £65.80 | 2 days | |
| DOR-R4676.05 | 6.05 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.1 | 6.10 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.2 | 6.20 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.3 | 6.30 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4671/4 | 1/4 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.4 | 6.40 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.5 | 6.50 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.6 | 6.60 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.7 | 6.70 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R46717/64 | 17/64 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.8 | 6.80 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4676.9 | 6.90 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.0 | 7.00 | 34 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.1 | 7.10 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4679/32 | 9/32 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.2 | 7.20 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.3 | 7.30 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.4 | 7.40 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.5 | 7.50 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R46719/64 | 19/64 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.6 | 7.60 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.7 | 7.70 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4677.8 | 7.80 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4675/16 | 5/16 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4678.0 | 8.00 | 41 | 79 | 8 | £75.92 | 2 days | |
| DOR-R4678.05 | 8.05 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.1 | 8.10 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.2 | 8.20 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.3 | 8.30 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.4 | 8.40 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.5 | 8.50 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.6 | 8.60 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.7 | 8.70 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R46711/32 | 11/32 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.8 | 8.80 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4678.9 | 8.90 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.0 | 9.00 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.1 | 9.10 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R46723/64 | 23/63 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.3 | 9.30 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.4 | 9.40 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.5 | 9.50 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4673/8 | 3/8 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.6 | 9.60 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.7 | 9.70 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.8 | 9.80 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R4679.9 | 9.90 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R46725/64 | 25/64 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R46710.0 | 10.00 | 47 | 89 | 10 | £85.48 | 2 days | |
| DOR-R46710.05 | 10.05 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46710.1 | 10.10 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46710.2 | 10.20 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46710.3 | 10.30 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46713/32 | 13/32 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46710.4 | 10.40 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46710.5 | 10.50 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46710.6 | 10.60 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46727/64 | 27/64 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46710.9 | 10.90 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46711.0 | 11.00 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R4677/16 | 7/16 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46711.2 | 11.20 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46711.4 | 11.40 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46711.5 | 11.50 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46729/64 | 29/64 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46711.8 | 11.80 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46715/32 | 15/32 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46712.0 | 12.00 | 55 | 102 | 12 | £124.29 | 2 days | |
| DOR-R46712.05 | 12.05 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46712.1 | 12.10 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46712.2 | 12.20 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46731/64 | 31/64 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46712.5 | 12.50 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46712.7 | 12.70 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R4671/2 | 1/2 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46713.0 | 13.00 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46733/64 | 33/64 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46717/32 | 17/32 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46713.5 | 13.50 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46735/64 | 35/64 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46714.0 | 14.00 | 60 | 107 | 14 | £161.41 | 2 days | |
| DOR-R46714.25 | 14.25 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R4679/16 | 9/16 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46714.5 | 14.50 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46737/64 | 37/64 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46715.0 | 15.00 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46719/32 Viewing | 19/32 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46715.1 | 15.10 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46715.3 | 15.30 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46715.5 | 15.50 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R4675/8 | 5/8 | 65 | 115 | 16 | £207.53 | 2 days | |
| DOR-R46716.0 | 16.00 | 65 | 115 | 16 | £207.53 | 2 days |
