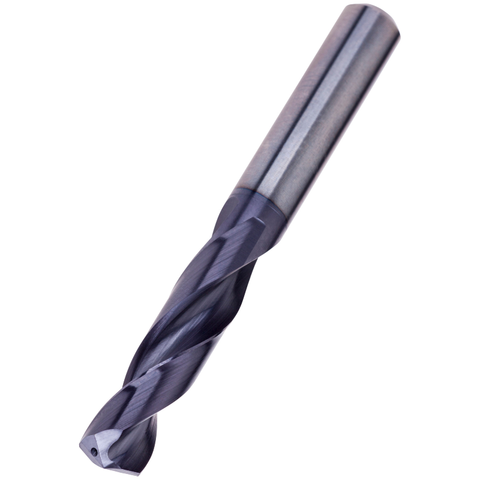

Dormer Pramet R467 5/32 Inch CARBIDE TIALN FORCE-M STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K

The Dormer Pramet R467 5/32 Inch Carbide TiAlN FORCE-M Stepped Shank Short Series Drill is built for demanding hole-making in stainless steel and other heat-resistant alloys. At 5/32" diameter with a DIN 6537 K stepped shank, it fits standard tool holders while delivering precise, repeatable results in tight workspaces.

This high-performance drill starts true with a 140° 4-facet split point, features Titanium Aluminium Nitride coating for longer service life, and employs a CTW flute design with coolant feed to maintain strength and enable higher cutting speeds and feeds.

• 140° 4-Facet Split Point: Self-centering start reduces wandering and lowers the push force required, delivering cleaner holes right from the first cut.
• TiAlN Coating for Extended Life: Coating enhances wear resistance and allows higher speeds, increasing drill life when working with stainless steel and hard alloys.
• CTW Flute Design with Coolant Feed: Optimized flute geometry and coolant delivery provide greater rigidity and enable faster, more productive drilling with reliable chip evacuation.

Together, these features support consistent hole quality, faster cycle times, and reliable performance across challenging materials. The compact short-shank design and DIN 6537 K compatibility make it a dependable choice for production runs, maintenance tasks, and precision projects alike, helping you finish jobs with confidence and minimal rework.
