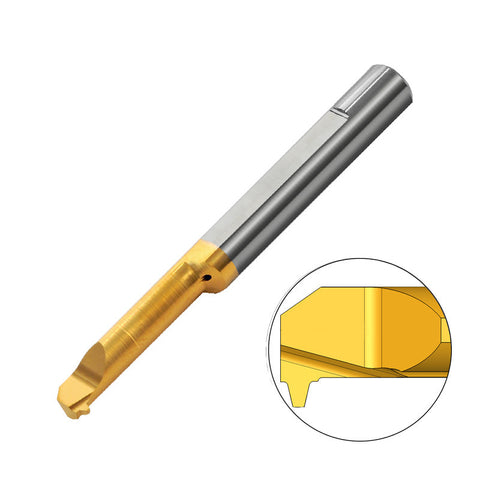

Carmex Carbide Tiny Tool - Threading - MIL - 60° Partial - BXC Grade - 5.1mm Minimum Diameter x 22mm Reach (Left Hand)
SKU:MIL5L22A60BXC
The Carmex Carbide Tiny Tool is a left-hand, 60° partial-threading bar designed for precise work in tight spaces. With a 5.1 mm minimum diameter and a 22 mm reach, it handles small bores and deep...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Threading (MIL) |
| Thread Form | 60° Partial |
| Pitch or Pitch Range | (1.0-1.25mm) (24-20 TPI) |
| Minimum Diameter | 5.1 |
| Reach | 22 |
| Grade | BXC |
£26.68
Prices shown ex. VAT
In Stock— only 1 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool is a left-hand, 60° partial-threading bar designed for precise work in tight spaces. With a 5.1 mm minimum diameter and a 22 mm reach, it handles small bores and deep pockets with dependable, repeatable thread forms. Coated for longevity, this carbide tool is optimized for controlled cutting speeds and reliable performance on stainless steels and a broad range of materials.
- 60° partial threading geometry (left-hand): Delivers precise, repeatable thread forms in restricted spaces, tailored for left-hand threading tasks.
- BXC Grade with PVD TiN coating for low cutting speeds: Reduces wear and heat buildup, promoting smoother cuts and longer tool life on stainless steels and a wide range of materials.
- Small-bore reach with 1.2 mm minimum bore capability: 1.2 mm (0.05 in) minimum bore diameter and a 22 mm reach enable threading in compact bores and deep holes without frequent repositioning.
Designed to deliver consistent results in challenging applications, this tool helps streamline workflows, improve hole quality, and extend tool life. Its carbide core and protective TiN coating provide durable performance across common materials, giving you confidence in every threaded result.
| Application | Threading (MIL) |
| Thread Form | 60° Partial |
| Pitch or Pitch Range | (1.0-1.25mm) (24-20 TPI) |
| Minimum Diameter | 5.1 |
| Reach | 22 |
| Grade | BXC |
| Holder | SIM****H6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Small Threading Partial Profile 60° Tool (MIR)
View full collection →You are viewing MIL5L22A60BXC. Click any other SKU to view its full details.
| Product SKU | Pitch or Pitch Range | Minimum Diameter | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MIR1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIR3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIR4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | In Stock | |
| MIR4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | In Stock | |
| MIR4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £28.00 | 5 days | |
| MIR4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £25.48 | 5 days | |
| MIR5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIR5L15A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIR5L22A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | In Stock | |
| MIR5L22A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIR6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIR6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | In Stock | |
| MIR6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIR6L22A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | In Stock | |
| MIR8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | 5 days | |
| MIR8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | In Stock | |
| MIR1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £24.20 | 5 days | |
| MIR5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIR5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIR6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIR3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIR6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIR2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIR5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIR5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIR6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIR4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIR6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.65 | 5 days | |
| MIR8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days | |
| MIR3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIL1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £34.30 | 5 days | |
| MIL2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £31.18 | 5 days | |
| MIL2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £29.60 | 5 days | |
| MIL3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £21.08 | 5 days | |
| MIL3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIL3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | In Stock | |
| MIL3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIL4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | 5 days | |
| MIL4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | 5 days | |
| MIL4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIL4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIL4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £23.65 | 5 days | |
| MIL4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £21.53 | 5 days | |
| MIL4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £20.45 | 5 days | |
| MIL5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIL5L15A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIL5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIL5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIL5L22A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | 5 days | |
| MIL5L22A60BXC Viewing | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIL5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIL5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIL6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIL6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | 5 days | |
| MIL6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIL6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIL6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIL6L22A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | 5 days | |
| MIL6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIL6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.68 | 5 days | |
| MIL8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | 5 days | |
| MIL8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | 5 days | |
| MIL8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIL8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days |
