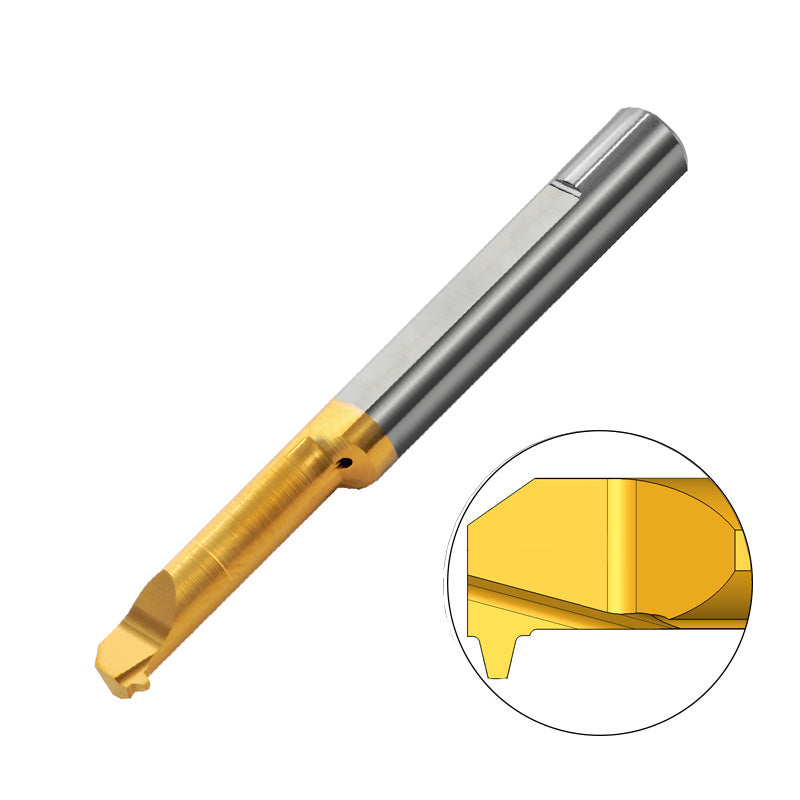

Carmex Carbide Tiny Tool - Threading - MIR - 60° Partial - BXC Grade - 5.1mm Minimum Diameter x 15mm Reach
| Application | Threading (MIR) |
| Thread Form | 60° Partial |
| Pitch or Pitch Range | (1.0-1.25mm) (24-20 TPI) |
| Minimum Diameter | 5.1 |
Learn more about Klarna
Compatible holders
The ones our customers buy most.
Description

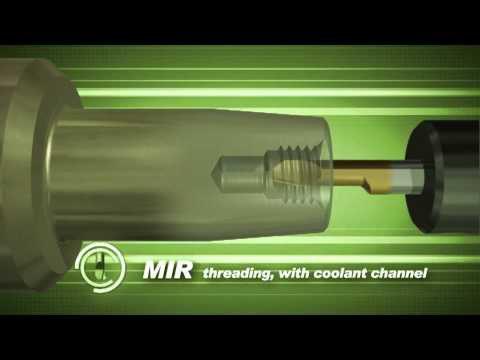

The Carmex Carbide Tiny Tool - Threading - MIR - 60° Partial is a compact carbide threading tool designed for precise partial-profile threads in tight spaces. With a 5.1 mm minimum diameter and a 15 mm reach, it excels at small-diameter work while delivering clean, repeatable results. It can thread bores as small as 1.2 mm (0.05 in), making it suitable for delicate or constrained applications.
As part of a versatile line of partial-profile threading bars, this tool is compatible with 55° profiles to cover common standards. It is offered in two coating grades to match materials and speeds: BXC Grade — a PVD TiN coated option optimized for low cutting speeds and broad stainless steel compatibility (ISO P30-P50 / K25-K40); and BMK Grade — a sub-micron grade with advanced PVD triple coating (ISO K10-K20) that delivers exceptional heat resistance and smooth cutting, making it suitable as a general-purpose choice for all materials.
- Compact, small-diameter, long-reach design: 5.1 mm minimum diameter and 15 mm reach enable threading in tight bores and restricted spaces, while maintaining rigidity for clean, accurate threads. The tool is also capable of threading in bore sizes as small as 1.2 mm.
- Dual coating grades for versatile performance: BXC TiN coating provides reliable cutting at low speeds and broad stainless steel compatibility, while BMK’s sub-micron, triple-coated finish delivers exceptional heat resistance and smooth cutting for demanding materials.
- 60° partial-profile with 55° profile compatibility: Designed for 60° partial-profile threading and compatible with 55° profiles, offering flexible use across common standards and reducing tool-change downtime.
In practice, the Carmex Tiny Tool helps you complete small-diameter threading tasks more efficiently, with consistent thread quality and longer tool life. The combination of carbide hardness, specialized coatings, and profile compatibility means fewer tool changes, better surface finishes, and reliable performance across a wide range of materials and applications—making it a dependable choice for engineers, fabricators, and hobbyists alike.
Part Numbers
- Protool Part Number
- MIR5L15A60BXC
- Brand
- Carmex
- Category
- Tiny Tool Inserts
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Small Threading Partial Profile 60° Tool (MIR)
View full collection →You are viewing MIR5L15A60BXC. Click any other SKU to view its full details.
| Product SKU | Pitch or Pitch Range | Minimum Diameter | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MIR1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIR3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | In Stock | |
| MIR4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | In Stock | |
| MIR4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | In Stock | |
| MIR4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £28.00 | 5 days | |
| MIR4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £25.48 | 5 days | |
| MIR5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIR5L15A60BXC Viewing | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIR5L22A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | In Stock | |
| MIR5L22A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIR6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIR6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | In Stock | |
| MIR6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIR6L22A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | In Stock | |
| MIR8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | 5 days | |
| MIR8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | In Stock | |
| MIR1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £24.20 | 5 days | |
| MIR5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIR5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIR6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIR3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIR6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIR2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIR5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIR5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIR6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIR4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIR6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.65 | 5 days | |
| MIR8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days | |
| MIR3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIL1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £34.30 | 5 days | |
| MIL2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £31.18 | 5 days | |
| MIL2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £29.60 | 5 days | |
| MIL3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £21.08 | 5 days | |
| MIL3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIL3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | In Stock | |
| MIL3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIL4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | 5 days | |
| MIL4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | 5 days | |
| MIL4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIL4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIL4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £23.65 | 5 days | |
| MIL4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £21.53 | 5 days | |
| MIL4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £20.45 | 5 days | |
| MIL5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIL5L15A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIL5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIL5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIL5L22A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | 5 days | |
| MIL5L22A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIL5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIL5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIL6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIL6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | 5 days | |
| MIL6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIL6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIL6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIL6L22A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | 5 days | |
| MIL6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIL6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.68 | 5 days | |
| MIL8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | In Stock | |
| MIL8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | 5 days | |
| MIL8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIL8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days |
