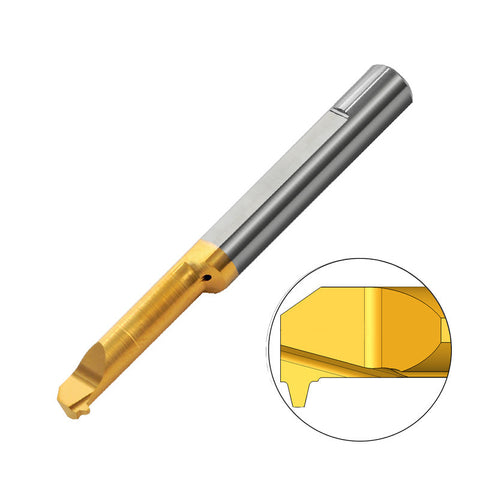

Carmex Carbide Tiny Tool - Threading - MIL - 60° Partial - BMK Grade - 5.1mm Minimum Diameter x 22mm Reach (Left Hand)
SKU:MIL5L22A60BMK
Carmex Carbide Tiny Tool is a compact left‑hand threading bar designed for precision work in tight spaces. Its 60° partial-profile geometry and compatibility with 55° profiles give it versatile t...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Threading (MIL) |
| Thread Form | 60° Partial |
| Pitch or Pitch Range | (1.0-1.25mm) (24-20 TPI) |
| Minimum Diameter | 5.1 |
| Reach | 22 |
| Grade | BMK |
£29.35
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Carmex Carbide Tiny Tool is a compact left‑hand threading bar designed for precision work in tight spaces. Its 60° partial-profile geometry and compatibility with 55° profiles give it versatile threading capability for small components and assemblies where access is limited.
With a 5.1 mm minimum diameter and 22 mm reach, this tool fits into constrained bores and machine setups. It supports a minimum bore diameter of 1.2 mm (0.05 in). Built with BMK‑grade carbide and advanced PVD coatings, it delivers smooth cutting, excellent heat resistance, and broad material versatility, including stainless steels.
- Compact left‑hand threading in a 60° partial profile: Enables precise, repeatable threads in tight bores and restricted access areas, with left-hand operation for compatible assemblies.
- BMK-grade carbide with advanced PVD coating: Sub-micron BMK carbide plus triple PVD coating provides high heat resistance and smooth cutting for reliable performance across many materials.
- BXC TiN-coated option for stainless steels: TiN coating supports low cutting speeds and reduces wear when threading stainless steels, helping extend tool life.
This combination of compact size, coating technologies, and robust threading geometry helps improve workflow by delivering cleaner threads, reducing setup time, and lowering downtime due to wear. It’s a dependable choice for professional shops, job sites, and DIY projects that demand consistent, long‑lasting performance in small bore threading tasks.
| Application | Threading (MIL) |
| Thread Form | 60° Partial |
| Pitch or Pitch Range | (1.0-1.25mm) (24-20 TPI) |
| Minimum Diameter | 5.1 |
| Reach | 22 |
| Grade | BMK |
| Holder | SIM****H5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Small Threading Partial Profile 60° Tool (MIR)
View full collection →You are viewing MIL5L22A60BMK. Click any other SKU to view its full details.
| Product SKU | Pitch or Pitch Range | Minimum Diameter | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MIR1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIR1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | In Stock | |
| MIR2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIR3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIR3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIR4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | In Stock | |
| MIR4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | In Stock | |
| MIR4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £28.00 | 5 days | |
| MIR4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £25.48 | 5 days | |
| MIR5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIR5L15A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIR5L22A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | In Stock | |
| MIR5L22A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIR6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIR6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | In Stock | |
| MIR6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIR6L22A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | In Stock | |
| MIR8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | 5 days | |
| MIR8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | In Stock | |
| MIR1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £24.20 | 5 days | |
| MIR5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIR5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIR6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIR3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIR6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIR2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIR1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIR8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIR5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIR5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIR6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIR4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIR6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.65 | 5 days | |
| MIR8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days | |
| MIR3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £24.93 | 5 days | |
| MIL1.5L6A60BMK | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1.5L6A60BXC | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1.5L6A60K20 | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL1L5A60BMK | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BMK | SIM****H3 | £31.48 | 5 days | |
| MIL1L5A60BXC | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | BXC | SIM****H3 | £28.60 | 5 days | |
| MIL1L5A60K20 | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | K20 | SIM****H3 | £27.18 | 5 days | |
| MIL2L8A60BMK | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BMK | SIM****H3 | £34.30 | 5 days | |
| MIL2L8A60BXC | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | BXC | SIM****H3 | £31.18 | 5 days | |
| MIL2L8A60K20 | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | K20 | SIM****H3 | £29.60 | 5 days | |
| MIL3L14A60BXC | (0.25-0.35mm) (100-72 TPI) | 3.2 | 14 | BXC | SIM****H3 | £21.08 | 5 days | |
| MIL3L15A60BMK | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BMK | SIM****H3 | £27.35 | 5 days | |
| MIL3L15A60BXC | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | BXC | SIM****H3 | £24.93 | In Stock | |
| MIL3L15A60K20 | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | K20 | SIM****H3 | £23.65 | 5 days | |
| MIL4L15A60BMK | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BMK | SIM****H4 | £27.35 | 5 days | |
| MIL4L15A60BXC | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | BXC | SIM****H4 | £24.93 | 5 days | |
| MIL4L15A60K20 | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | K20 | SIM****H4 | £23.65 | 5 days | |
| MIL4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £25.30 | 5 days | |
| MIL4L17A60BMK | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BMK | SIM****H4 | £23.65 | 5 days | |
| MIL4L17A60BXC | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | BXC | SIM****H4 | £21.53 | 5 days | |
| MIL4L17A60K20 | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | K20 | SIM****H4 | £20.45 | 5 days | |
| MIL5L15A60BMK | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BMK | SIM****H5 | £28.00 | 5 days | |
| MIL5L15A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | BXC | SIM****H5 | £25.48 | In Stock | |
| MIL5L15A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | K20 | SIM****H5 | £24.20 | 5 days | |
| MIL5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £25.83 | 5 days | |
| MIL5L22A60BMK Viewing | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BMK | SIM****H5 | £29.35 | 5 days | |
| MIL5L22A60BXC | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | BXC | SIM****H6 | £26.68 | In Stock | |
| MIL5L22A60K20 | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | K20 | SIM****H6 | £25.35 | 5 days | |
| MIL5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £27.05 | 5 days | |
| MIL6L15A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BMK | SIM****H6 | £28.55 | 5 days | |
| MIL6L15A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | BXC | SIM****H6 | £25.93 | 5 days | |
| MIL6L15A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | K20 | SIM****H6 | £24.60 | 5 days | |
| MIL6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £26.30 | 5 days | |
| MIL6L22A60BMK | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BMK | SIM****H6 | £30.00 | 5 days | |
| MIL6L22A60BXC | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | BXC | SIM****H6 | £27.28 | 5 days | |
| MIL6L22A60K20 | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | K20 | SIM****H6 | £25.90 | 5 days | |
| MIL6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £27.68 | 5 days | |
| MIL8L22A60BMK | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BMK | SIM****H8 | £34.30 | 5 days | |
| MIL8L22A60BXC | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | BXC | SIM****H8 | £31.18 | 5 days | |
| MIL8L22A60K20 | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | K20 | SIM****H8 | £29.60 | 5 days | |
| MIL8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £31.63 | 5 days |
