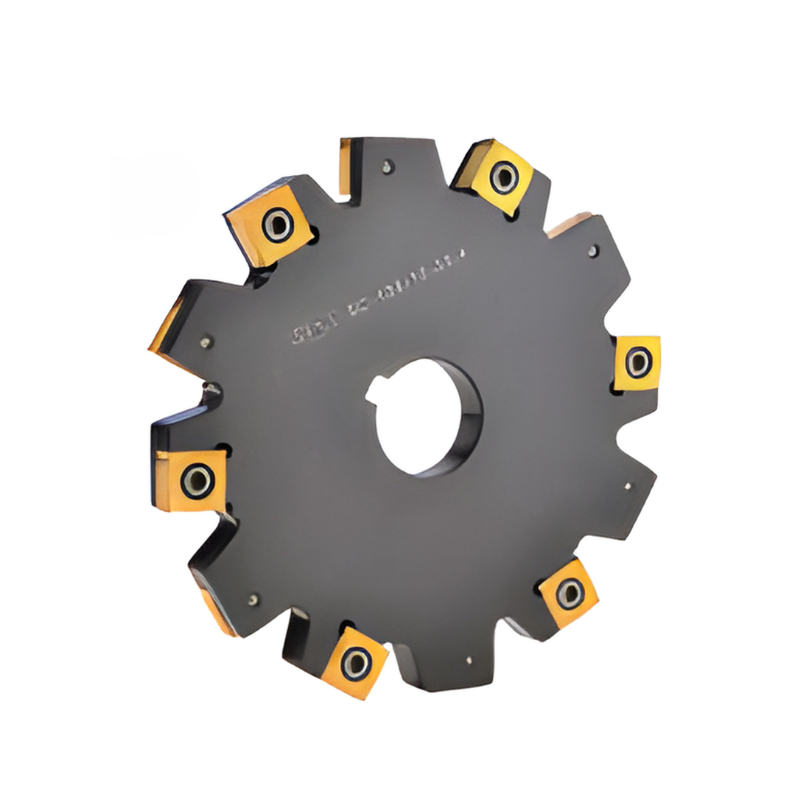

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 80mm Diameter 6mm Insert Thickness 19.5mm Cutting Depth 10 Teeth (SC-80-6-25.4)

The Y.T. Indexable Slitting Saw for SNGX/SNGW inserts delivers precise, high-speed slitting with effortless insert replacement. Designed for machinists and manufacturers, it combines a robust insert clamping system with a smart chip evacuation design for reliable performance in demanding metalworking tasks.

• Diameter: 80 mm
• Insert thickness: 6 mm
• Cutting depth: 19.5 mm
• Teeth: 10
• Model / series: SC-80-6-25.4
• Insert clamping design: Safe and reliable insert clamping ensures secure operation
• Max speed: Certified for up to 17,200 RPM
• Certification: Swedish-certified performance
• Chip evacuation: Patented design prevents chip blockages in the groove
• Insert compatibility: Uses indexable carbide inserts; compatible with over 10 insert types
• Series coverage: Standard thickness 1.4–5.5 mm; cutter diameters 50–300 mm across the series

This slitting saw supports high-speed operation with a maximum 17,200 RPM capability, enabling efficient material removal while maintaining dependable performance. The safe, reliable insert clamping design reduces the risk of insert movement during cutting, while the patented chip evacuation system keeps grooves clear for continuous cuts. With indexable carbide inserts, wear parts are easy to replace, and compatibility with over 10 insert types provides flexibility across different materials and applications. The broad series coverage—diameters from 50 mm to 300 mm and standard insert thicknesses from 1.4 mm to 5.5 mm—offers a versatile solution for varying slitting needs without changing tools.
