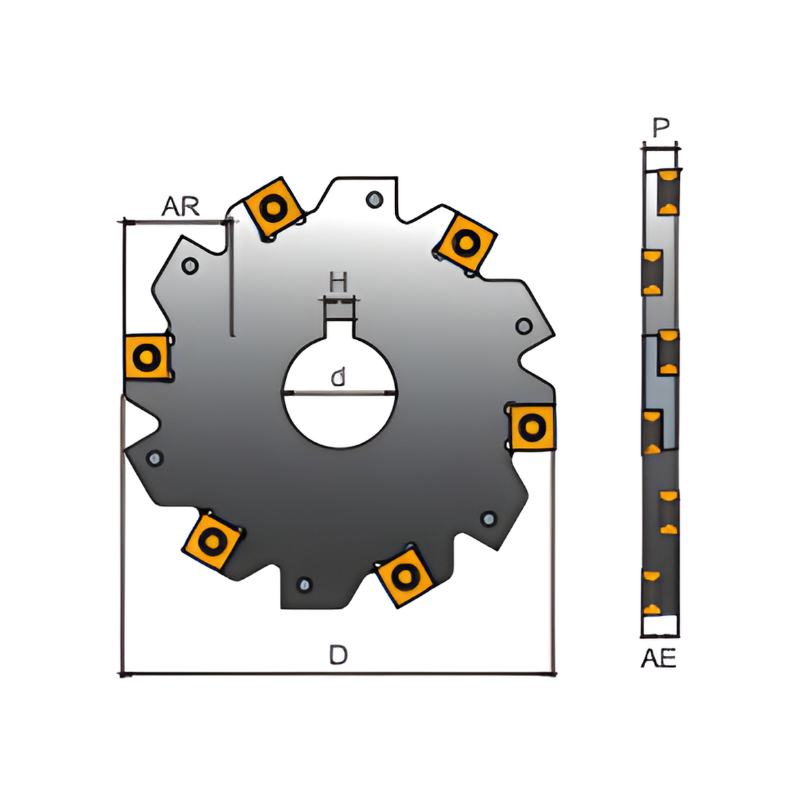

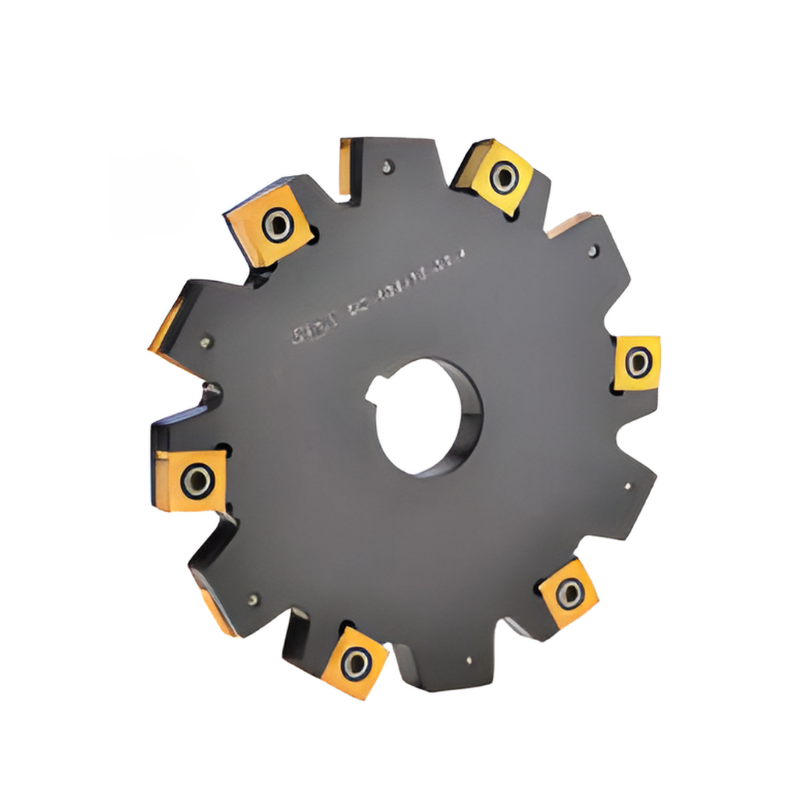

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 100mm Diameter 10mm Insert Thickness 29.5mm Cutting Depth 12 Teeth (SC-100-10-27)

The Y.T. Indexable Slitting Saw for SNGX/SNGW inserts delivers precise, high-speed slitting with a secure clamping system and easy insert replacement, built for workshops that demand reliability and fast setup.

• Diameter: 100 mm
• Insert Thickness: 10 mm
• Cutting Depth: 29.5 mm
• Teeth: 12
• Compatibility: Designed for SNGX/SNGW inserts; compatible with over 10 different insert types
• Clamping Design: Safe and reliable insert clamping ensures secure operation at high speeds
• Speed Rating: Certified performance up to 17,200 RPM (Swedish customer certification)
• Chip Evacuation: Patented chip evacuation design prevents chip blockages in the groove
• Inserts: Indexable carbide inserts for easy replacement; same cutter works with more than 10 insert types
• Series Thickness Range: Standard thicknesses from 1.4 mm to 5.5 mm; broader diameter range from 50 mm to 300 mm across the series

This cutter is built for efficient tool changes and consistent performance: swap in fresh carbide inserts to extend edge life without retooling, maintain stable cuts at high RPMs thanks to the robust clamping, and rely on the integrated chip evacuation to keep grooves clear. The 100 mm diameter, 29.5 mm cutting depth, and 12-tooth configuration are tuned for reliable slitting operations with SNGX/SNGW inserts, delivering predictable results across a range of materials and depths while supporting a versatile family of insert geometries.
