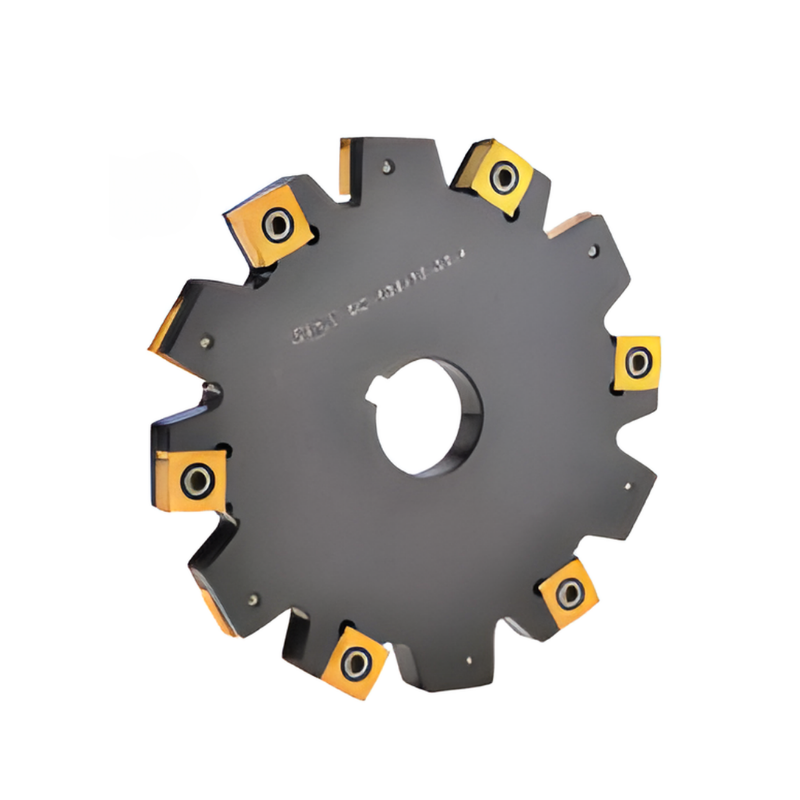

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 80mm Diameter 7mm Insert Thickness 19.5mm Cutting Depth 10 Teeth (SC-80-7-25.4)

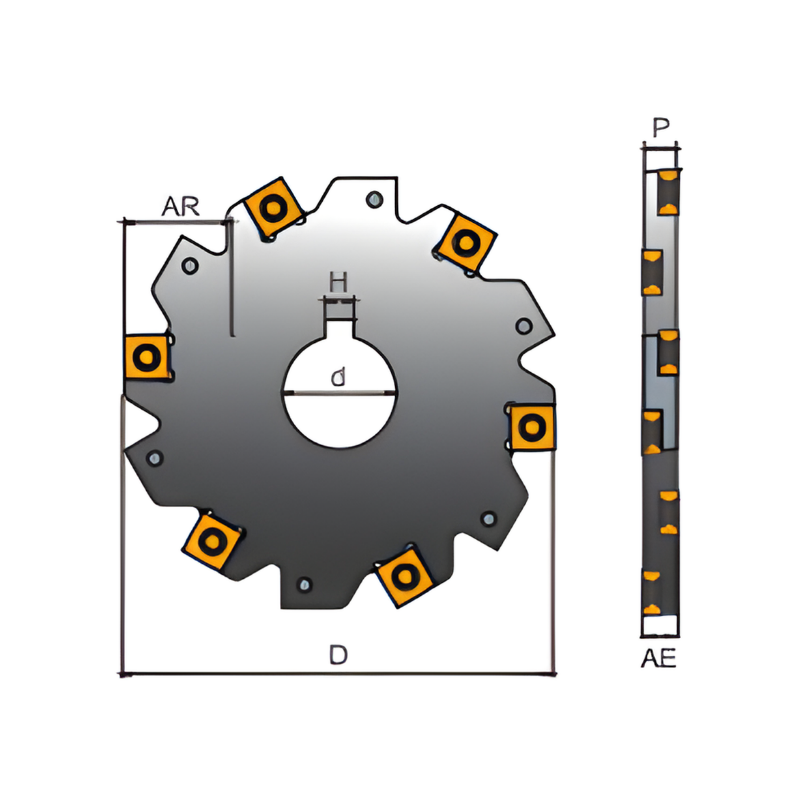

| Saw Diameter (D) | 80 |
| Insert Thickness (AE) | 7 |
| Cutting Depth (AR) | 19.5 |
| Number of Teeth (Z) | 10 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Y.T. Indexable Slitting Saw is a precision cutting tool designed for SNGX/SNGW inserts, delivering reliable grooves with replaceable carbide inserts. This 80 mm diameter cutter features a 7 mm insert thickness, a 19.5 mm cutting depth, and 10 teeth for steady, accurate cuts.
- Diameter: 80 mm
- Insert thickness: 7 mm
- Cutting depth: 19.5 mm
- Teeth: 10
- Insert system: Compatible with SNGX/SNGW inserts
- Replaceable inserts: Indexable carbide inserts; the cutter accepts over 10 insert types
- Clamping design: Safe and reliable insert clamping for secure seating
- Chip evacuation: Patented chip evacuation design prevents blockages in the groove
- Performance certification: Functionally tested up to 17,200 RPM (certified by Swedish customers)
This slitting saw enables quick edge refreshes through replaceable inserts, reducing downtime and tooling costs. The robust clamping and dedicated chip‑evacuation system help maintain consistent groove quality and smooth finishes at high speeds, making it a dependable choice for demanding precision milling tasks.
Part Numbers
- Protool Part Number
- PRO2201623
- Brand
- Y.T.
- Category
- Indexable Slitting Saws
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable Side Milling Cutters For SNGX/SNGW 120 Inserts
View full collection →You are viewing PRO2201623. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201592 | 160 | 14 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201593 | 160 | 16 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201594 | 160 | 18 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201595 | 160 | 20 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201596 | 160 | 22 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201597 | 160 | 25 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201598 | 160 | 30 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201599 | 200 | 14 | 54 | 16 | £988.08 | 5 days | |
| PRO2201600 | 200 | 16 | 54 | 16 | £988.08 | 5 days | |
| PRO2201601 | 200 | 18 | 54 | 16 | £988.08 | 5 days | |
| PRO2201602 | 200 | 20 | 54 | 16 | £1,036.81 | 5 days | |
| PRO2201603 | 200 | 22 | 54 | 12 | £1,036.81 | 5 days | |
| PRO2201604 | 200 | 25 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201605 | 200 | 30 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201606 | 250 | 14 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201607 | 250 | 16 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201608 | 250 | 18 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201609 | 250 | 20 | 79 | 20 | £1,491.60 | 5 days | |
| PRO2201610 | 250 | 22 | 79 | 16 | £1,491.60 | 5 days | |
| PRO2201611 | 250 | 25 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201612 | 250 | 30 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201613 | 80 | 4 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201614 | 80 | 5 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201615 | 80 | 6 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201616 | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201617 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201618 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201619 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201620 | 80 | 4 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201621 | 80 | 5 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201622 | 80 | 6 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201623 Viewing | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201624 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201625 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201626 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201627 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201628 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201629 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201630 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201631 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201632 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201633 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201634 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201635 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201636 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201637 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201638 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201639 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201640 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201641 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201642 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201643 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201644 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201645 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201646 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201647 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201648 | 125 | 4 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201649 | 125 | 5 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201650 | 125 | 6 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201651 | 125 | 7 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201652 | 125 | 8 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201653 | 125 | 10 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201654 | 125 | 12 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201655 | 125 | 4 | 42 | 12 | £692.11 | 5 days | |
| PRO2201656 | 125 | 5 | 42 | 12 | £692.11 | 5 days | |
| PRO2201657 | 125 | 6 | 42 | 12 | £692.11 | 5 days | |
| PRO2201658 | 125 | 7 | 42 | 12 | £692.11 | 5 days | |
| PRO2201659 | 125 | 8 | 42 | 12 | £692.11 | 5 days | |
| PRO2201660 | 125 | 10 | 42 | 12 | £692.11 | 5 days | |
| PRO2201661 | 125 | 12 | 42 | 12 | £692.11 | 5 days | |
| PRO2201662 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201663 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201664 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201665 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201666 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201667 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201668 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201669 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201670 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201671 | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201672 | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201673 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201674 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201675 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201676 | 160 | 4 | 52 | 16 | £883.34 | 5 days | |
| PRO2201677 | 160 | 5 | 52 | 16 | £883.34 | 5 days | |
| PRO2201678 | 160 | 6 | 52 | 16 | £883.34 | 5 days | |
| PRO2201679 | 160 | 7 | 52 | 16 | £883.34 | 5 days | |
| PRO2201680 | 160 | 8 | 52 | 16 | £883.34 | 5 days | |
| PRO2201681 | 160 | 10 | 52 | 16 | £883.34 | 5 days | |
| PRO2201682 | 160 | 12 | 52 | 16 | £883.34 | 5 days | |
| PRO2201683 | 160 | 4 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201684 | 160 | 5 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201685 | 160 | 6 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201686 | 160 | 7 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201687 | 160 | 8 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201688 | 160 | 10 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201689 | 160 | 12 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201690 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201691 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201692 | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201693 | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201694 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201695 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201696 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days |
