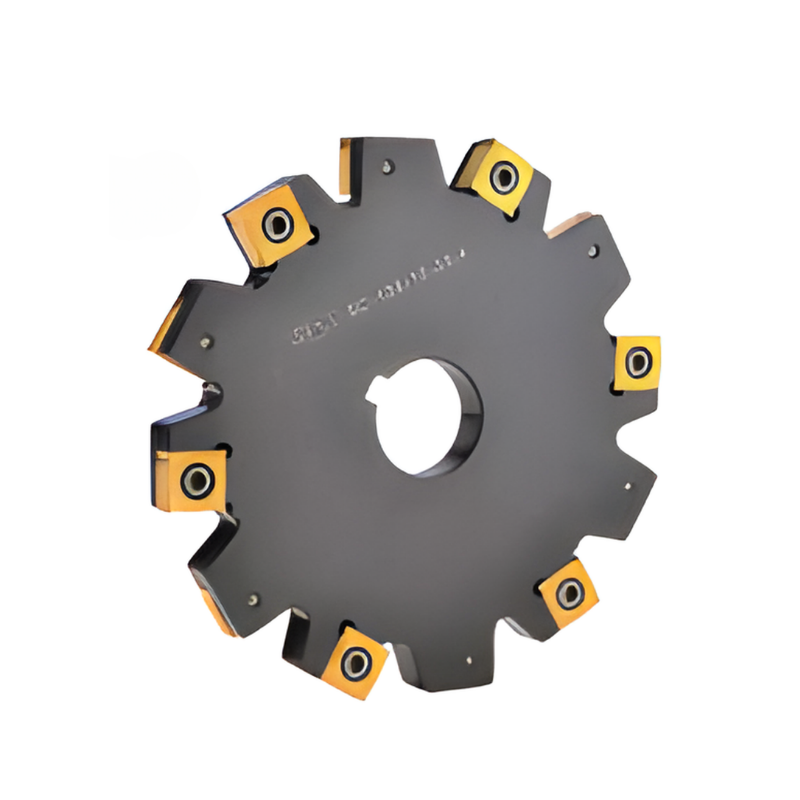

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 6mm Insert Thickness 56.5mm Cutting Depth 16 Teeth (SC-160-6-31.75)
SKU:PRO2201692
The Y.T. Indexable Slitting Saw for SNGX/SNGW inserts is a durable, high-precision cutting tool designed for slotting applications. It features a 160 mm diameter, 6 mm insert thickness, 56.5 mm cu...
Read more ↓
Specification
View all specifications ↓
Download Cutting Data
| Saw Diameter (D) | 160 |
| Insert Thickness (AE) | 6 |
| Cutting Depth (AR) | 56.5 |
| Number of Teeth (Z) | 16 |
| d | 31.75 |
| Blade Width (P) | 5 |
£883.34
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Y.T. Indexable Slitting Saw for SNGX/SNGW inserts is a durable, high-precision cutting tool designed for slotting applications. It features a 160 mm diameter, 6 mm insert thickness, 56.5 mm cutting depth, and 16 teeth, delivering reliable performance in demanding machining environments.
- Diameter: 160 mm
- Insert thickness: 6 mm
- Cutting depth: 56.5 mm
- Teeth: 16
- Mounting compatibility: for SNGX/SNGW inserts
- Safe insert clamping design: certified by Swedish customers to securely handle up to 17,200 RPM
- Chip evacuation design: patented system prevents chip blockages within the groove
- Indexable carbide inserts: easy replacement; same cutter compatible with over 10 insert types
- Series range: standard thicknesses from 1.4 mm to 5.5 mm; diameters from 50 mm to 300 mm across the series
The tool is built to maximize uptime and versatility: swap worn inserts quickly without changing the cutter body, maintain steady feed rates with a 16-tooth configuration, and rely on advanced chip evacuation to reduce downtime due to chip buildup. Its broad insert compatibility and configurable thickness options ensure you can tailor performance to your material, fixture, and machine, making it a reliable choice for precision groove and slotting work.
| Saw Diameter (D) | 160 |
| Insert Thickness (AE) | 6 |
| Cutting Depth (AR) | 56.5 |
| Number of Teeth (Z) | 16 |
| d | 31.75 |
| Blade Width (P) | 5 |
| KG | 0.84 |
| Max RPM | 8300 |
| H | 8 |
| Insert SNG/SNGW | 1203 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Y.T. Indexable Side Milling Cutters For SNGX/SNGW 120 Inserts
View full collection →You are viewing PRO2201692. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201592 | 160 | 14 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201593 | 160 | 16 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201594 | 160 | 18 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201595 | 160 | 20 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201596 | 160 | 22 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201597 | 160 | 25 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201598 | 160 | 30 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201599 | 200 | 14 | 54 | 16 | £988.08 | 5 days | |
| PRO2201600 | 200 | 16 | 54 | 16 | £988.08 | 5 days | |
| PRO2201601 | 200 | 18 | 54 | 16 | £988.08 | 5 days | |
| PRO2201602 | 200 | 20 | 54 | 16 | £1,036.81 | 5 days | |
| PRO2201603 | 200 | 22 | 54 | 12 | £1,036.81 | 5 days | |
| PRO2201604 | 200 | 25 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201605 | 200 | 30 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201606 | 250 | 14 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201607 | 250 | 16 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201608 | 250 | 18 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201609 | 250 | 20 | 79 | 20 | £1,491.60 | 5 days | |
| PRO2201610 | 250 | 22 | 79 | 16 | £1,491.60 | 5 days | |
| PRO2201611 | 250 | 25 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201612 | 250 | 30 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201613 | 80 | 4 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201614 | 80 | 5 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201615 | 80 | 6 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201616 | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201617 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201618 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201619 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201620 | 80 | 4 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201621 | 80 | 5 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201622 | 80 | 6 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201623 | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201624 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201625 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201626 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201627 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201628 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201629 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201630 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201631 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201632 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201633 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201634 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201635 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201636 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201637 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201638 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201639 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201640 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201641 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201642 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201643 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201644 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201645 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201646 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201647 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201648 | 125 | 4 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201649 | 125 | 5 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201650 | 125 | 6 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201651 | 125 | 7 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201652 | 125 | 8 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201653 | 125 | 10 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201654 | 125 | 12 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201655 | 125 | 4 | 42 | 12 | £692.11 | 5 days | |
| PRO2201656 | 125 | 5 | 42 | 12 | £692.11 | 5 days | |
| PRO2201657 | 125 | 6 | 42 | 12 | £692.11 | 5 days | |
| PRO2201658 | 125 | 7 | 42 | 12 | £692.11 | 5 days | |
| PRO2201659 | 125 | 8 | 42 | 12 | £692.11 | 5 days | |
| PRO2201660 | 125 | 10 | 42 | 12 | £692.11 | 5 days | |
| PRO2201661 | 125 | 12 | 42 | 12 | £692.11 | 5 days | |
| PRO2201662 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201663 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201664 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201665 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201666 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201667 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201668 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201669 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201670 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201671 | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201672 | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201673 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201674 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201675 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201676 | 160 | 4 | 52 | 16 | £883.34 | 5 days | |
| PRO2201677 | 160 | 5 | 52 | 16 | £883.34 | 5 days | |
| PRO2201678 | 160 | 6 | 52 | 16 | £883.34 | 5 days | |
| PRO2201679 | 160 | 7 | 52 | 16 | £883.34 | 5 days | |
| PRO2201680 | 160 | 8 | 52 | 16 | £883.34 | 5 days | |
| PRO2201681 | 160 | 10 | 52 | 16 | £883.34 | 5 days | |
| PRO2201682 | 160 | 12 | 52 | 16 | £883.34 | 5 days | |
| PRO2201683 | 160 | 4 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201684 | 160 | 5 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201685 | 160 | 6 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201686 | 160 | 7 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201687 | 160 | 8 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201688 | 160 | 10 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201689 | 160 | 12 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201690 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201691 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201692 Viewing | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201693 | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201694 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201695 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201696 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days |
