Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 12mm Insert Thickness 59.5mm Cutting Depth 16 Teeth (SC-160-12-25.4)

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 12mm Insert Thickness 59.5mm Cutting Depth 16 Teeth (SC-160-12-25.4)

SKU:PRO2201689

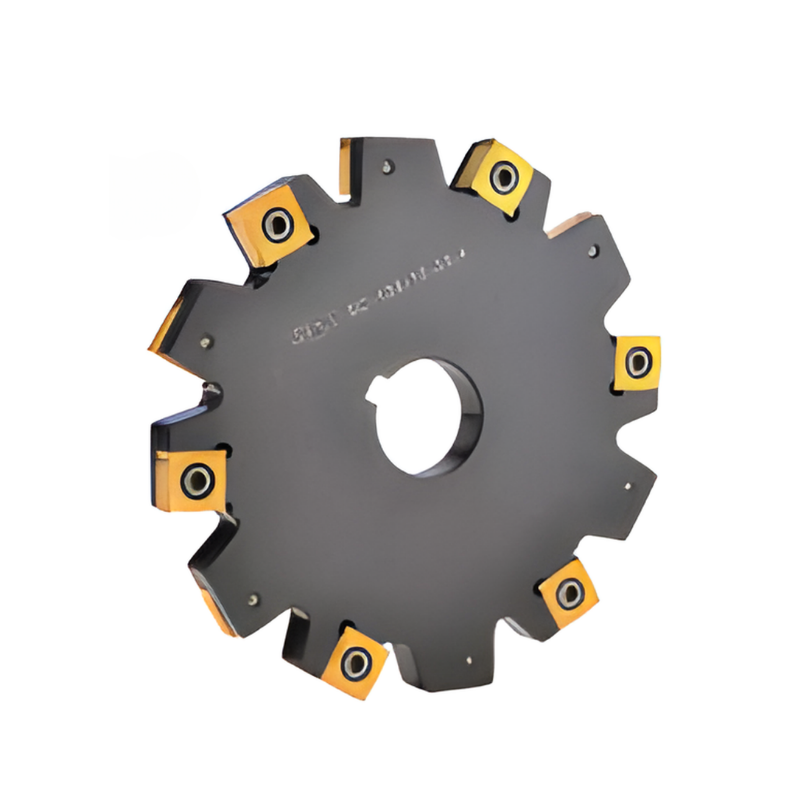

The Y.T. Indexable Slitting Saw is a durable, interchangeable cutting tool designed for SNGX/SNGW inserts. With a 160 mm diameter and 12 mm insert thickness, it delivers precise slotting performa... Read more ↓
Specification
Saw Diameter (D)160
Insert Thickness (AE)12
Cutting Depth (AR)59.5
Number of Teeth (Z)16
d25.4
Blade Width (P)11
View all specifications ↓
Download Cutting Data
£883.34
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Inserts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Y.T. Indexable Slitting Saw is a durable, interchangeable cutting tool designed for SNGX/SNGW inserts. With a 160 mm diameter and 12 mm insert thickness, it delivers precise slotting performance at high speeds.

  • Diameter: 160 mm
  • Insert Thickness: 12 mm
  • Cutting Depth: 59.5 mm
  • Teeth: 16
  • Insert Clamping Design: Safe, reliable insert clamping; Swedish-certified to function securely up to 17,200 RPM
  • Chip Evacuation: Patented design prevents chip blockages within the groove during operation
  • Insert System: Indexable carbide inserts for easy replacement; compatible with over 10 insert types
  • Series Coverage: Standard thicknesses from 1.4 mm to 5.5 mm; diameters from 50 mm to 300 mm across the series

With secure insert retention, quick insert replacement, and an efficient chip-evacuation system, this slitting saw delivers consistent, clean cuts at high RPMs while minimizing downtime between jobs.

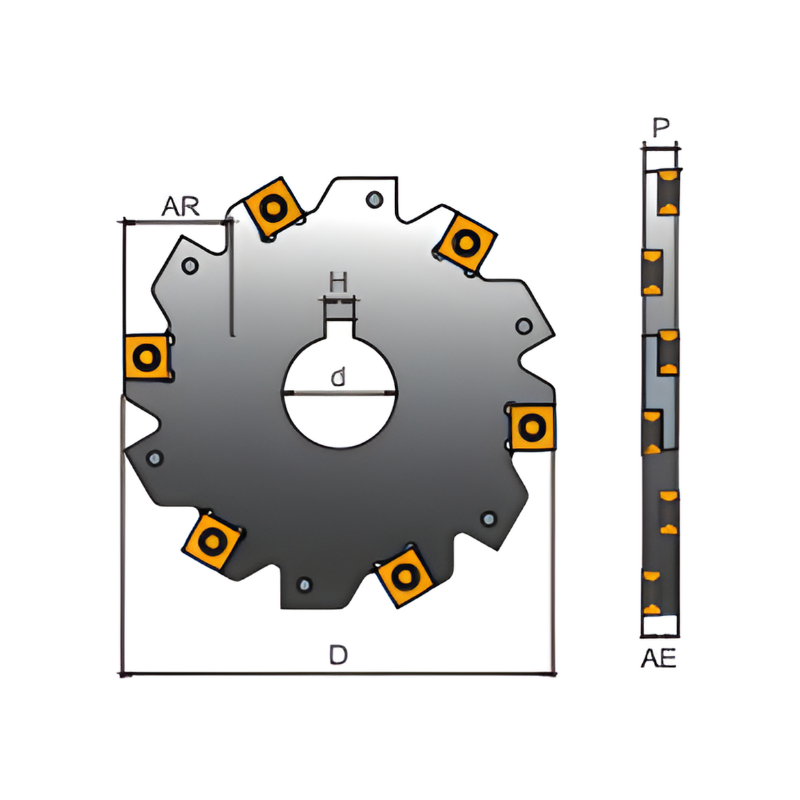

Saw Diameter (D) 160
Insert Thickness (AE) 12
Cutting Depth (AR) 59.5
Number of Teeth (Z) 16
d 25.4
Blade Width (P) 11
KG 1.55
Max RPM 8300
H 6.35
Insert SNG/SNGW 1207

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Y.T. Indexable Side Milling Cutters For SNGX/SNGW 120 Inserts

View full collection →

You are viewing PRO2201689. Click any other SKU to view its full details.

Product SKUSaw Diameter (D)Insert Thickness (AE)Cutting Depth (AR)Number of Teeth (Z)PriceStock Order
PRO2201592 1601446.512£953.38 5 days
PRO2201593 1601646.512£953.38 5 days
PRO2201594 1601846.512£953.38 5 days
PRO2201595 1602046.512£997.09 5 days
PRO2201596 1602246.512£997.09 5 days
PRO2201597 1602546.512£1,088.62 5 days
PRO2201598 1603046.512£1,088.62 5 days
PRO2201599 200145416£988.08 5 days
PRO2201600 200165416£988.08 5 days
PRO2201601 200185416£988.08 5 days
PRO2201602 200205416£1,036.81 5 days
PRO2201603 200225412£1,036.81 5 days
PRO2201604 200255412£1,357.35 5 days
PRO2201605 200305412£1,357.35 5 days
PRO2201606 250147920£1,426.48 5 days
PRO2201607 250167920£1,426.48 5 days
PRO2201608 250187920£1,426.48 5 days
PRO2201609 250207920£1,491.60 5 days
PRO2201610 250227916£1,491.60 5 days
PRO2201611 250257916£1,629.32 5 days
PRO2201612 250307916£1,629.32 5 days
PRO2201613 80422.510£446.24 5 days
PRO2201614 80522.510£446.24 5 days
PRO2201615 80622.510£446.24 5 days
PRO2201616 80719.510£446.24 5 days
PRO2201617 80819.510£446.24 5 days
PRO2201618 801019.510£446.24 5 days
PRO2201619 801219.510£446.24 5 days
PRO2201620 80419.510£446.24 5 days
PRO2201621 80519.510£446.24 5 days
PRO2201622 80619.510£446.24 5 days
PRO2201623 80719.510£446.24 5 days
PRO2201624 80819.510£446.24 5 days
PRO2201625 801019.510£446.24 5 days
PRO2201626 801219.510£446.24 5 days
PRO2201627 100429.512£555.51 5 days
PRO2201628 100529.512£555.51 5 days
PRO2201629 100629.512£555.51 5 days
PRO2201630 100729.512£555.51 5 days
PRO2201631 100829.512£555.51 5 days
PRO2201632 1001029.512£555.51 5 days
PRO2201633 1001229.512£555.51 5 days
PRO2201634 100429.512£555.51 5 days
PRO2201635 100529.512£555.51 5 days
PRO2201636 100629.512£555.51 5 days
PRO2201637 100729.512£555.51 5 days
PRO2201638 100829.512£555.51 5 days
PRO2201639 1001029.512£555.51 5 days
PRO2201640 1001229.512£555.51 5 days
PRO2201641 12543912£692.11 5 days
PRO2201642 12553912£692.11 5 days
PRO2201643 12563912£692.11 5 days
PRO2201644 12573912£692.11 5 days
PRO2201645 12583912£692.11 5 days
PRO2201646 125103912£692.11 5 days
PRO2201647 125123912£692.11 5 days
PRO2201648 125434.512£692.11 5 days
PRO2201649 125534.512£692.11 5 days
PRO2201650 125634.512£692.11 5 days
PRO2201651 125734.512£692.11 5 days
PRO2201652 125834.512£692.11 5 days
PRO2201653 1251034.512£692.11 5 days
PRO2201654 1251234.512£692.11 5 days
PRO2201655 12544212£692.11 5 days
PRO2201656 12554212£692.11 5 days
PRO2201657 12564212£692.11 5 days
PRO2201658 12574212£692.11 5 days
PRO2201659 12584212£692.11 5 days
PRO2201660 125104212£692.11 5 days
PRO2201661 125124212£692.11 5 days
PRO2201662 12543912£692.11 5 days
PRO2201663 12553912£692.11 5 days
PRO2201664 12563912£692.11 5 days
PRO2201665 12573912£692.11 5 days
PRO2201666 12583912£692.11 5 days
PRO2201667 125103912£692.11 5 days
PRO2201668 125123912£692.11 5 days
PRO2201669 160456.516£883.34 5 days
PRO2201670 160556.516£883.34 5 days
PRO2201671 160656.516£883.34 5 days
PRO2201672 160756.516£883.34 5 days
PRO2201673 160856.516£883.34 5 days
PRO2201674 1601056.516£883.34 5 days
PRO2201675 1601256.516£883.34 5 days
PRO2201676 16045216£883.34 5 days
PRO2201677 16055216£883.34 5 days
PRO2201678 16065216£883.34 5 days
PRO2201679 16075216£883.34 5 days
PRO2201680 16085216£883.34 5 days
PRO2201681 160105216£883.34 5 days
PRO2201682 160125216£883.34 5 days
PRO2201683 160459.516£883.34 5 days
PRO2201684 160559.516£883.34 5 days
PRO2201685 160659.516£883.34 5 days
PRO2201686 160759.516£883.34 5 days
PRO2201687 160859.516£883.34 5 days
PRO2201688 1601059.516£883.34 5 days
PRO2201689 Viewing1601259.516£883.34 5 days
PRO2201690 160456.516£883.34 5 days
PRO2201691 160556.516£883.34 5 days
PRO2201692 160656.516£883.34 5 days
PRO2201693 160756.516£883.34 5 days
PRO2201694 160856.516£883.34 5 days
PRO2201695 1601056.516£883.34 5 days
PRO2201696 1601256.516£883.34 5 days
