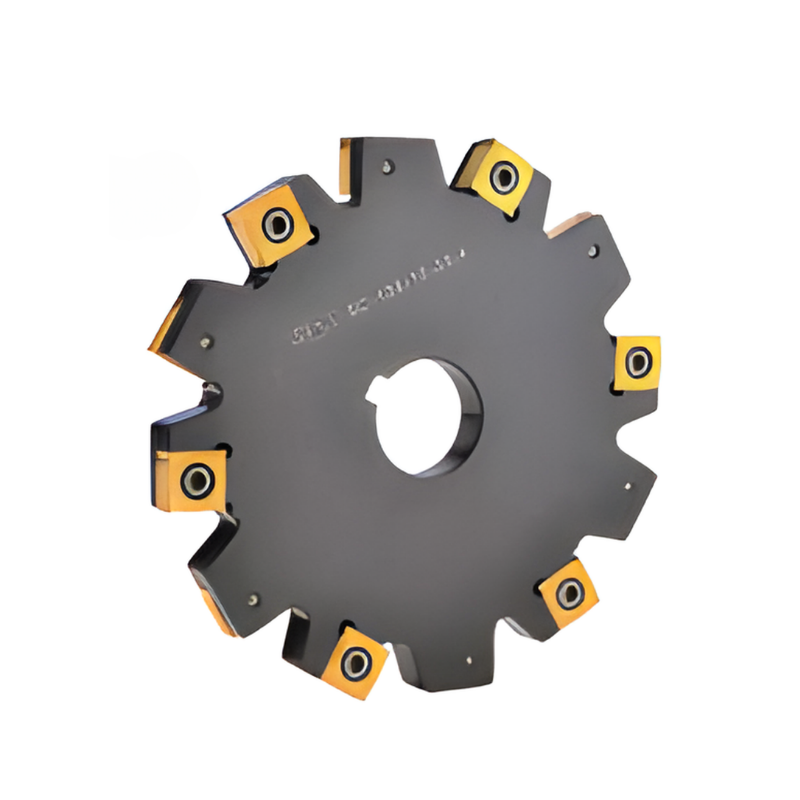

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 5mm Insert Thickness 56.5mm Cutting Depth 16 Teeth (SC-160-5-32)

The Y.T. Indexable Slitting Saw for SNGX/SNGW inserts is a precision cutting tool designed for high-speed groove and slotting applications. With a 160 mm diameter, 56.5 mm cutting depth, and 16 teeth, it’s built to deliver reliable performance in demanding metalworking environments.

• Model/Designation: SC-160-5-32
• Diameter: 160 mm
• Insert Thickness: 5 mm
• Cutting Depth: 56.5 mm
• Teeth: 16
• Insert Compatibility: Uses indexable carbide inserts; compatible with over 10 insert types
• Clamping Design: Safe and reliable insert clamping design
• Chip Evacuation: Patented chip evacuation design prevents chip blockages in the groove
• Max Speed: Certified for up to 17,200 RPM (Swedish customer verification)

Designed to keep downtime minimal and cutting quality consistent, this indexable slitting saw supports quick insert swaps without compromising stability. Its secure clamping, combined with an efficient chip evacuation system, helps maintain clear grooves and steady feeds, even at high rotation speeds. The broad compatibility with multiple insert types gives you flexible, cost-efficient maintenance, while the durable carbide inserts provide long service life for sustained productivity.
