Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 125mm Diameter 5mm Insert Thickness 34.5mm Cutting Depth 12 Teeth (SC-125-5-40)

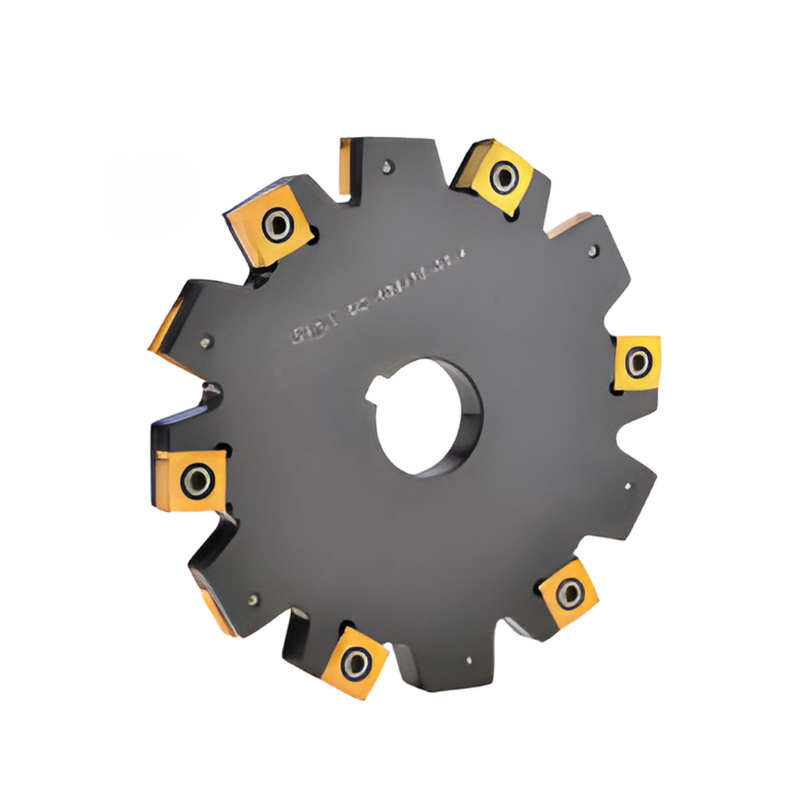

The Y.T. SC-125-5-40 Indexable Slitting Saw is a precision cutting tool designed for machinists using SNGX/SNGW inserts. It combines a 125 mm diameter with a 34.5 mm cutting depth and 12 teeth to deliver reliable, high-speed slitting, up to 17,200 RPM.

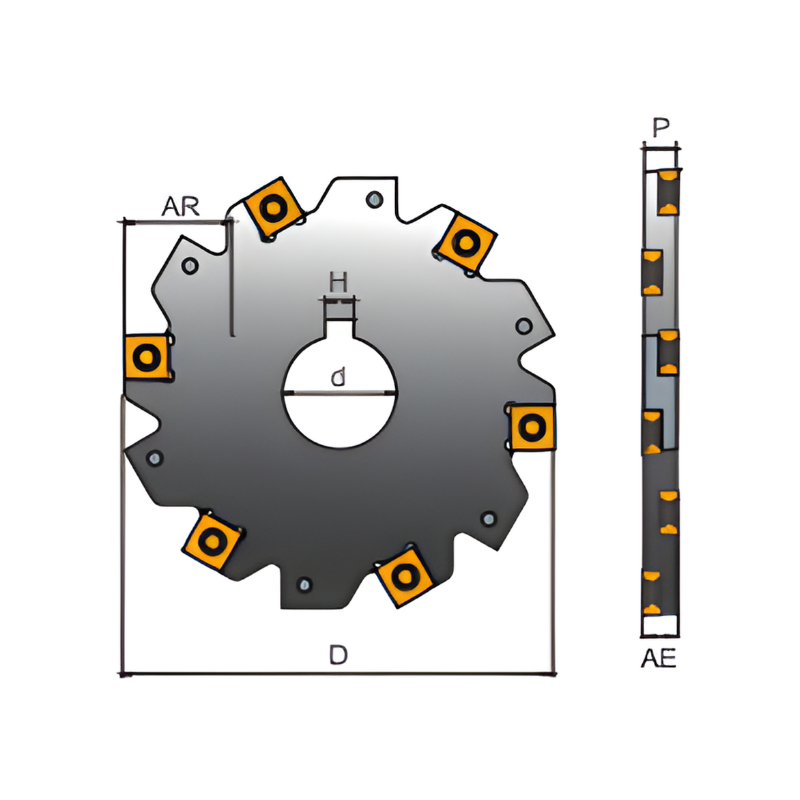

• Diameter: 125 mm
• Insert thickness: 5 mm
• Cutting depth: 34.5 mm
• Teeth: 12
• Model: SC-125-5-40
• Insert compatibility: Indexable carbide inserts; compatible with over 10 different insert types
• Clamping design: Safe, reliable insert clamping; Swedish-certified for secure operation up to 17,200 RPM
• Chip evacuation: Patented design prevents chip blockages in the groove
• Replacement flexibility: The same cutter accepts a variety of inserts, reducing tool inventory
• Series coverage: Cutter diameters range from 50 mm to 300 mm across the full Y.T. indexable slitting saw lineup; standard thicknesses from 1.4 mm to 5.5 mm

This slitting saw minimizes downtime with easy insert replacement and a robust clamping mechanism that maintains alignment at high speeds. The patented chip evacuation design helps sustain consistent cutting performance by preventing debris buildup in the groove, while broad insert compatibility provides versatility across multiple materials and job types. Ideal for precise, repeatable slitting on SNGX/SNGW inserts, the SC-125-5-40 combines reliability, flexibility, and efficient maintenance in a single cutter.
