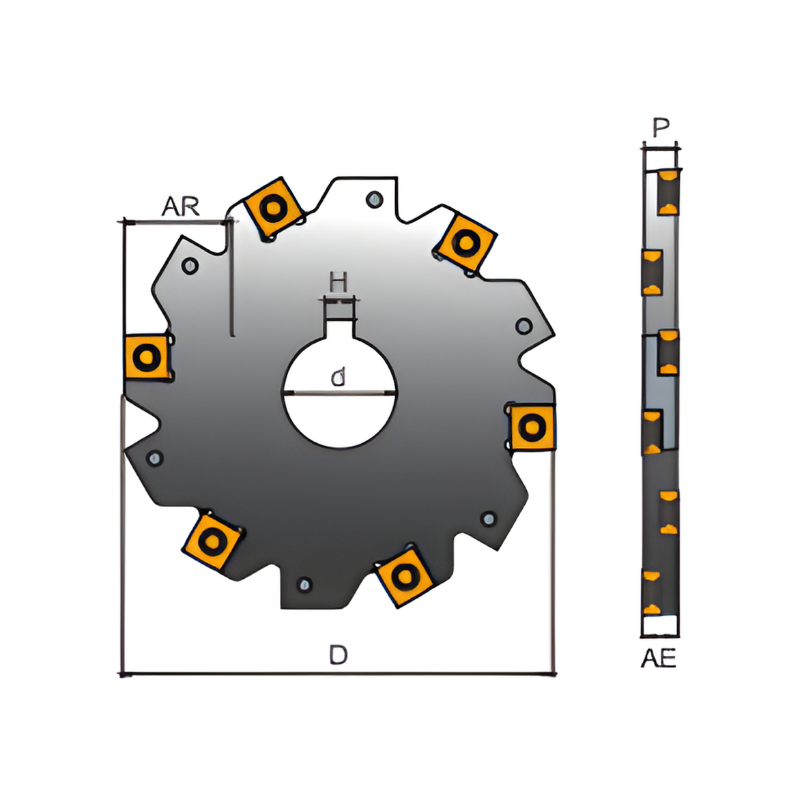

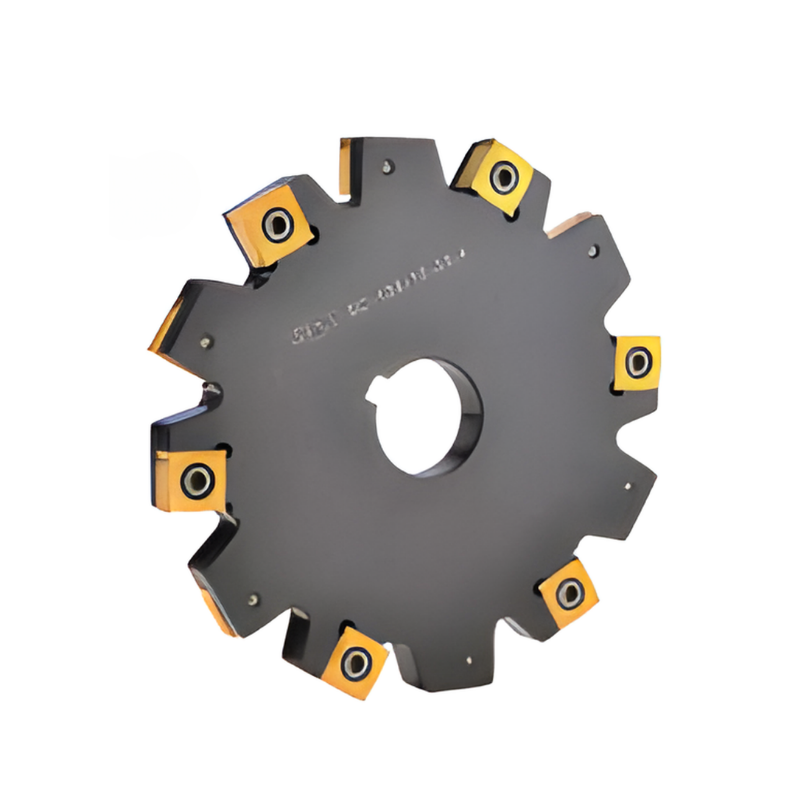

Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 125mm Diameter 8mm Insert Thickness 42mm Cutting Depth 12 Teeth (SC-125-8-25.4)

Y.T. Indexable Slitting Saw for SNGX/SNGW Inserts delivers reliable, high-speed metal cutting with easily replaceable carbide inserts and a robust insert-clamping design. Certified for safe operation and proven in demanding environments, it ensures consistent performance at up to 17,200 RPM.

• Diameter: 125 mm cutter diameter for versatile slotting and finishing passes
• Insert thickness: 8 mm insert thickness to match SNGX/SNGW insert interfaces
• Cutting depth: 42 mm maximum cutting depth for efficient material removal
• Teeth: 12 teeth designed to balance cutting speed with chip control
• Clamping design: Safe, reliable insert clamping that maintains seating under high-speed operation
• Speed rating: Certified to perform securely up to 17,200 RPM
• Chip evacuation: Patented chip-evacuation design prevents chip blockages in the groove
• Insert compatibility: Indexable carbide inserts allow quick replacements and compatibility with over 10 insert types
• Series range: Part of a broader series spanning 50–300 mm diameters for future scalability
• Standard thickness options: Available in thicknesses from 1.4 mm to 5.5 mm to suit different cutting needs

This slitting saw is built to minimize downtime and maximize precision. The indexable inserts cut cleanly and can be swapped without removing the entire cutter, while the chip-evacuation system keeps grooves clear for smooth, consistent passes. With a secure clamp and high-speed capability, it’s well-suited for precise slotting, finishing passes, and material-specific tuning across a range of metals.
