Y.T. Indexable Slitting Saw For SNGX/SNGW Inserts - 160mm Diameter 8mm Insert Thickness 59.5mm Cutting Depth 16 Teeth (SC-160-8-25.4)
SKU:PRO2201687
The Y.T. Indexable Slitting Saw is a precision cutting tool designed for SNGX/SNGW inserts, offering reliable groove and slotting performance with a 160 mm diameter and 16 teeth. Built for demandi...
Read more ↓
Specification
View all specifications ↓
Download Cutting Data

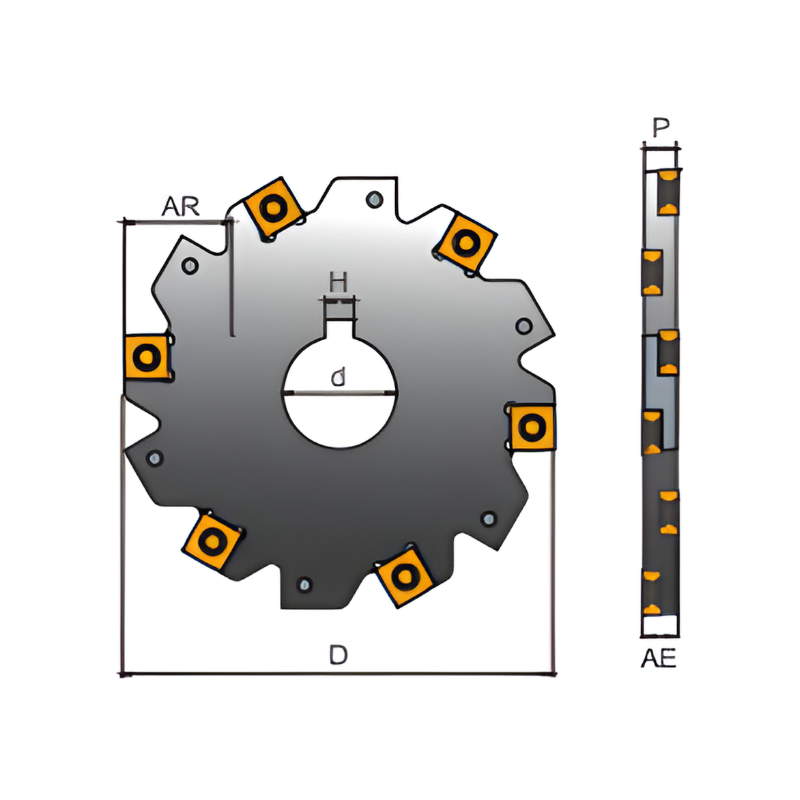

| Saw Diameter (D) | 160 |
| Insert Thickness (AE) | 8 |
| Cutting Depth (AR) | 59.5 |
| Number of Teeth (Z) | 16 |
| d | 25.4 |
| Blade Width (P) | 7 |
£883.34
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Y.T. Indexable Slitting Saw is a precision cutting tool designed for SNGX/SNGW inserts, offering reliable groove and slotting performance with a 160 mm diameter and 16 teeth. Built for demanding workshops, it combines a safe insert-clamping design with efficient chip evacuation and easy insert replacement.
- Diameter: 160 mm
- Insert Thickness: 8 mm
- Cutting Depth: 59.5 mm
- Teeth: 16
- Model: SC-160-8-25.4
- Max Speed: 17,200 RPM (certified by Swedish customers)
- Clamping Design: Safe and reliable insert clamping design
- Chip Evacuation: Patented chip evacuation design prevents chip blockages within the groove
- Inserts Compatibility: Indexable carbide inserts for easy replacement; compatible with over 10 insert types
- Series Thickness Range: Standard thicknesses from 1.4 mm to 5.5 mm
- Series Diameter Range: Cutter diameters from 50 mm to 300 mm across the series

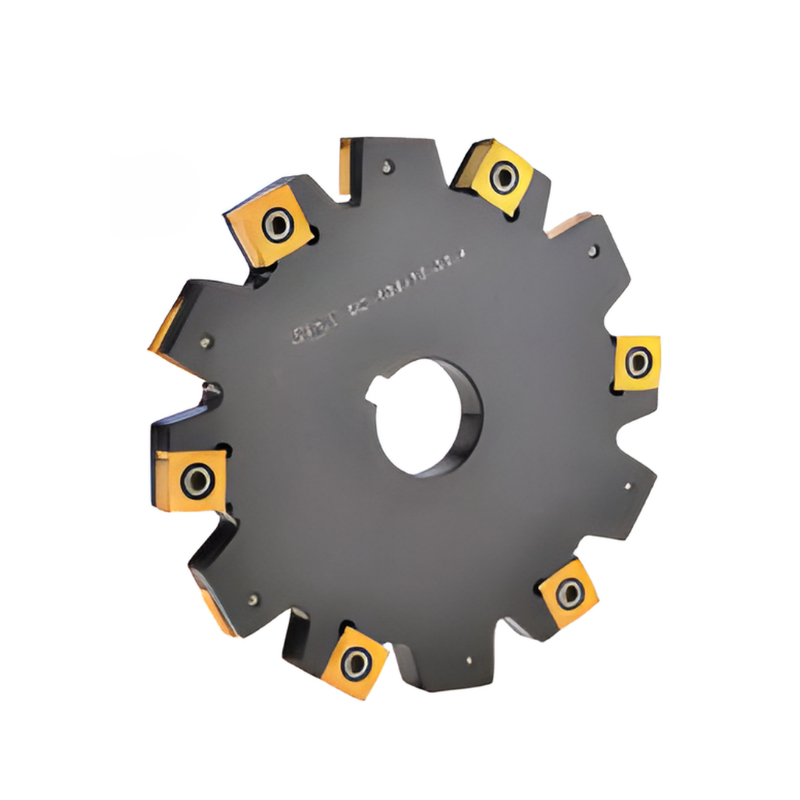

Engineered for durability and consistent performance, this slitting saw minimizes downtime through quick insert swaps and a secure clamping system. Its high-speed capability enables efficient material removal, while the patented chip evacuation design reduces groove blockages for cleaner cuts and longer tool life. The versatile insert compatibility provides flexible options for different materials and applications, all within a single, reliable cutter configuration shown in the product image.
| Saw Diameter (D) | 160 |
| Insert Thickness (AE) | 8 |
| Cutting Depth (AR) | 59.5 |
| Number of Teeth (Z) | 16 |
| d | 25.4 |
| Blade Width (P) | 7 |
| KG | 1.06 |
| Max RPM | 8300 |
| H | 6.35 |
| Insert SNG/SNGW | 12045 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Y.T. Indexable Side Milling Cutters For SNGX/SNGW 120 Inserts
View full collection →You are viewing PRO2201687. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Thickness (AE) | Cutting Depth (AR) | Number of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2201592 | 160 | 14 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201593 | 160 | 16 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201594 | 160 | 18 | 46.5 | 12 | £953.38 | 5 days | |
| PRO2201595 | 160 | 20 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201596 | 160 | 22 | 46.5 | 12 | £997.09 | 5 days | |
| PRO2201597 | 160 | 25 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201598 | 160 | 30 | 46.5 | 12 | £1,088.62 | 5 days | |
| PRO2201599 | 200 | 14 | 54 | 16 | £988.08 | 5 days | |
| PRO2201600 | 200 | 16 | 54 | 16 | £988.08 | 5 days | |
| PRO2201601 | 200 | 18 | 54 | 16 | £988.08 | 5 days | |
| PRO2201602 | 200 | 20 | 54 | 16 | £1,036.81 | 5 days | |
| PRO2201603 | 200 | 22 | 54 | 12 | £1,036.81 | 5 days | |
| PRO2201604 | 200 | 25 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201605 | 200 | 30 | 54 | 12 | £1,357.35 | 5 days | |
| PRO2201606 | 250 | 14 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201607 | 250 | 16 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201608 | 250 | 18 | 79 | 20 | £1,426.48 | 5 days | |
| PRO2201609 | 250 | 20 | 79 | 20 | £1,491.60 | 5 days | |
| PRO2201610 | 250 | 22 | 79 | 16 | £1,491.60 | 5 days | |
| PRO2201611 | 250 | 25 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201612 | 250 | 30 | 79 | 16 | £1,629.32 | 5 days | |
| PRO2201613 | 80 | 4 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201614 | 80 | 5 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201615 | 80 | 6 | 22.5 | 10 | £446.24 | 5 days | |
| PRO2201616 | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201617 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201618 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201619 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201620 | 80 | 4 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201621 | 80 | 5 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201622 | 80 | 6 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201623 | 80 | 7 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201624 | 80 | 8 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201625 | 80 | 10 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201626 | 80 | 12 | 19.5 | 10 | £446.24 | 5 days | |
| PRO2201627 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201628 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201629 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201630 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201631 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201632 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201633 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201634 | 100 | 4 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201635 | 100 | 5 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201636 | 100 | 6 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201637 | 100 | 7 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201638 | 100 | 8 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201639 | 100 | 10 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201640 | 100 | 12 | 29.5 | 12 | £555.51 | 5 days | |
| PRO2201641 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201642 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201643 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201644 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201645 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201646 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201647 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201648 | 125 | 4 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201649 | 125 | 5 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201650 | 125 | 6 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201651 | 125 | 7 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201652 | 125 | 8 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201653 | 125 | 10 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201654 | 125 | 12 | 34.5 | 12 | £692.11 | 5 days | |
| PRO2201655 | 125 | 4 | 42 | 12 | £692.11 | 5 days | |
| PRO2201656 | 125 | 5 | 42 | 12 | £692.11 | 5 days | |
| PRO2201657 | 125 | 6 | 42 | 12 | £692.11 | 5 days | |
| PRO2201658 | 125 | 7 | 42 | 12 | £692.11 | 5 days | |
| PRO2201659 | 125 | 8 | 42 | 12 | £692.11 | 5 days | |
| PRO2201660 | 125 | 10 | 42 | 12 | £692.11 | 5 days | |
| PRO2201661 | 125 | 12 | 42 | 12 | £692.11 | 5 days | |
| PRO2201662 | 125 | 4 | 39 | 12 | £692.11 | 5 days | |
| PRO2201663 | 125 | 5 | 39 | 12 | £692.11 | 5 days | |
| PRO2201664 | 125 | 6 | 39 | 12 | £692.11 | 5 days | |
| PRO2201665 | 125 | 7 | 39 | 12 | £692.11 | 5 days | |
| PRO2201666 | 125 | 8 | 39 | 12 | £692.11 | 5 days | |
| PRO2201667 | 125 | 10 | 39 | 12 | £692.11 | 5 days | |
| PRO2201668 | 125 | 12 | 39 | 12 | £692.11 | 5 days | |
| PRO2201669 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201670 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201671 | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201672 | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201673 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201674 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201675 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201676 | 160 | 4 | 52 | 16 | £883.34 | 5 days | |
| PRO2201677 | 160 | 5 | 52 | 16 | £883.34 | 5 days | |
| PRO2201678 | 160 | 6 | 52 | 16 | £883.34 | 5 days | |
| PRO2201679 | 160 | 7 | 52 | 16 | £883.34 | 5 days | |
| PRO2201680 | 160 | 8 | 52 | 16 | £883.34 | 5 days | |
| PRO2201681 | 160 | 10 | 52 | 16 | £883.34 | 5 days | |
| PRO2201682 | 160 | 12 | 52 | 16 | £883.34 | 5 days | |
| PRO2201683 | 160 | 4 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201684 | 160 | 5 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201685 | 160 | 6 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201686 | 160 | 7 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201687 Viewing | 160 | 8 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201688 | 160 | 10 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201689 | 160 | 12 | 59.5 | 16 | £883.34 | 5 days | |
| PRO2201690 | 160 | 4 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201691 | 160 | 5 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201692 | 160 | 6 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201693 | 160 | 7 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201694 | 160 | 8 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201695 | 160 | 10 | 56.5 | 16 | £883.34 | 5 days | |
| PRO2201696 | 160 | 12 | 56.5 | 16 | £883.34 | 5 days |
