Y.T. Indexable T-Slot Cutter (3T) - Metric - 40 mm Saw Diameter for LNGT Inserts - Insert Width 3 to 4mm (3T1640-3.0)

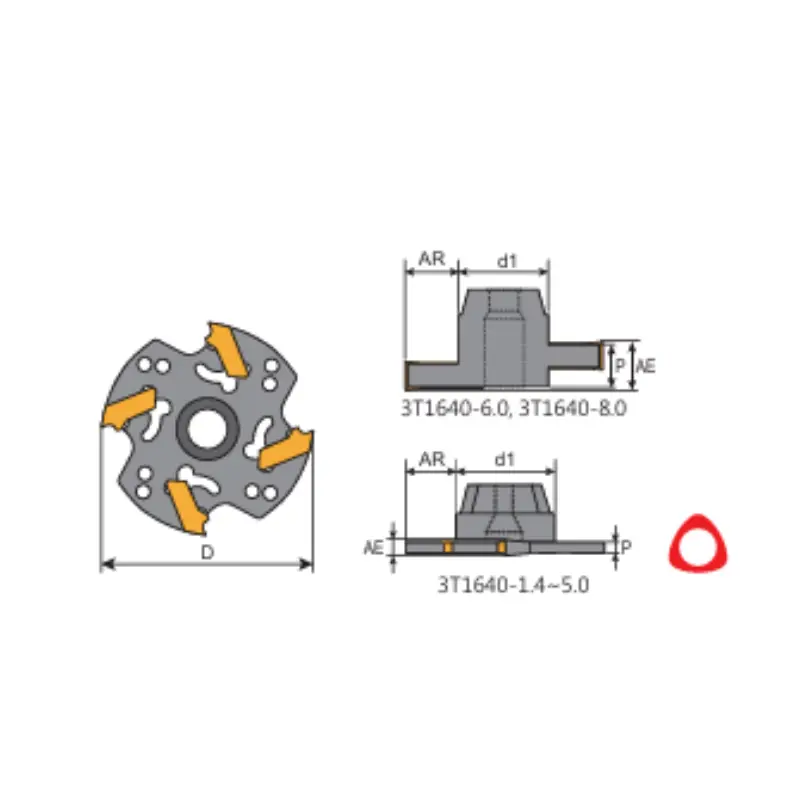

| Saw Diameter (D) | 40 |
| Insert Width (AE) | 3 to 4 |
| Cutting Depth (AR) | 11.5 |
| Number Of Teeth (Z) | 4 |
Learn more about Klarna
Description
The Y.T. Indexable T-Slot Cutter (3T1640-1.8) is a precision metric saw engineered for LNGT and UFO-type inserts, delivering consistent center alignment and rapid tooling changes for efficient T-slot milling and end-milling operations.
- Saw Diameter: 40 mm for stable rotational balance and accurate profile cutting on CNC machining centers.
- Insert Compatibility: Specifically sized for LNGT inserts with a width range of 3 to 4 mm, supported by a broad UFO ecosystem across multiple thicknesses and material grades.
- Tapered-Polygon Connection: Locks the cutter body to the shank with exact angular indexing to eliminate runout and maintain true center positioning under cutting loads.
- Shank Ecosystem Support: Integrates with YIH TROUN T-slot shanks covering the CAPTO standard, providing cross-compatibility with nine cutter styles and over 1,400 indexable insert options.
- Optimized Cutting Geometry: Features a refined rake angle and enhanced flute spacing to direct chips smoothly out of the cut zone, reducing heat buildup and preventing recutting.
Replacing solid HSS or traditionally welded T-slot tools reduces cycle times and lowers per-part costs through faster material removal rates and extended insert service life. The rigid connection interface keeps the tool precisely aligned throughout each pass, which protects spindle components and ensures tight dimensional repeatability batch after batch. Quick insert exchange capabilities minimize machine idle time, allowing operators to replace worn edges without dismantling the full arbor assembly. Built for demanding production floors, this cutter maintains steady performance across diverse alloy grades while simplifying setup and maximizing overall equipment utilization.
Part Numbers
- Protool Part Number
- PRO2200044
- Brand
- Y.T.
- Category
- T-SLOT Cutter
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable T-Slot Cutter's - Metric
View full collection →You are viewing PRO2200044. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Width (AE) | Cutting Depth (AR) | Number Of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2200140 | 60 | 3 to 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200122 | 40 | 1.8 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200120 | 80 | 10 | 27 | 8 | £256.81 | 5 days | |
| PRO2200072 | 60 | 5 | 17 | 6 | £459.61 | 5 days | |
| PRO2200036 | 60 | 1.6 | 17 | 6 | £238.05 | 5 days | |
| PRO2200062 | 40 | 1.4 to 1.5 | 11.5 | 4 | £459.61 | 5 days | |
| PRO2200128 | 80 | 2 to 2.5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200061 | 50 | 4 | 12 | 4 | £276.92 | 5 days | |
| PRO2200143 | 80 | 7 | 27 | 8 | £364.99 | 5 days | |
| PRO2200139 | 32 | 2 to 2.5 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200142 | 80 | 5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200121 | 40 | 5 to 5.5 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200141 | 80 | 4 | 27 | 8 | £398.82 | 5 days | |
| PRO2200045 | 35 | 6 | 9 | 2 | £263.74 | 5 days | |
| PRO2200001 | 50 | 1.8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200060 | 50 | 10 | 12 | 4 | £276.92 | 5 days | |
| PRO2200102 | 32 | 1.4 to 1.5 | 7.5 | 2 | £510.67 | 5 days | |
| PRO2200064 | 50 | 6 | 12 | 4 | £459.61 | 5 days | |
| PRO2200084 | 80 | 1.4 to 1.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200083 | 35 | 2 to 2.5 | 9 | 2 | £459.61 | 5 days | |
| PRO2200051 | 40 | 8 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200030 | 50 | 5 | 12 | 4 | £238.05 | 5 days | |
| PRO2200134 | 40 | 2.5 to 3 | 11.5 | 4 | £390.48 | 5 days | |
| PRO2200123 | 60 | 8 | 17 | 6 | £256.81 | 5 days | |
| PRO2200044 Viewing | 40 | 3 to 4 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200088 | 80 | 5 to 5.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200137 | 60 | 7 | 17 | 6 | £390.48 | 5 days | |
| PRO2200127 | 35 | 1.8 | 9 | 2 | £306.78 | 5 days | |
| PRO2200103 | 35 | 1.4 to 1.5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200094 | 35 | 1.6 | 9 | 2 | £482.69 | 5 days | |
| PRO2200132 | 60 | 1.4 to 1.5 | 17 | 6 | £306.78 | 5 days | |
| PRO2200039 | 50 | 2 to 2.5 | 12 | 4 | £250.04 | 5 days | |
| PRO2200100 | 40 | 6 | 11.5 | 4 | £510.67 | 5 days | |
| PRO2200054 | 60 | 2 to 2.5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200065 | 32 | 5 to 5.5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200017 | 60 | 5 to 5.5 | 17 | 6 | £212.41 | 5 days | |
| PRO2200119 | 35 | 3 to 4 | 9 | 2 | £256.81 | 5 days | |
| PRO2200130 | 60 | 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200145 | 80 | 8 | 27 | 8 | £398.82 | 5 days | |
| PRO2200005 | 35 | 8 | 9 | 2 | £212.41 | 5 days | |
| PRO2200104 | 60 | 1.8 | 17 | 6 | £510.67 | 5 days | |
| PRO2200125 | 50 | 1.4 to 1.5 | 12 | 4 | £256.81 | 5 days | |
| PRO2200085 | 32 | 1.6 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200081 | 32 | 4 to 5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200129 | 80 | 12 | 27 | 8 | £306.78 | 5 days | |
| PRO2200024 | 40 | 1.6 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200078 | 80 | 2.5 to 3 | 27 | 8 | £530.98 | 5 days | |
| PRO2200011 | 40 | 4 to 5 | 11.5 | 4 | £212.41 | 5 days | |
| PRO2200041 | 60 | 4 to 5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200131 | 50 | 3 to 4 | 12 | 4 | £306.78 | 5 days | |
| PRO2200097 | 80 | 4 to 5 | 27 | 8 | £530.98 | 5 days | |
| PRO2200057 | 32 | 3 to 4 | 7.5 | 2 | £263.74 | 5 days | |
| PRO2200004 | 35 | 2.5 to 3 | 9 | 2 | £212.41 | 5 days | |
| PRO2200008 | 50 | 12 | 12 | 4 | £212.41 | 5 days | |
| PRO2200110 | 80 | 1.6 | 27 | 8 | £510.67 | 5 days | |
| PRO2200003 | 50 | 8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200023 | 40 | 2 to 2.5 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200144 | 80 | 6 | 27 | 8 | £306.78 | 5 days | |
| PRO2200113 | 50 | 2.5 to 3 | 12 | 4 | £536.20 | 5 days | |
| PRO2200116 | 50 | 1.6 | 12 | 4 | £589.88 | 5 days | |
| PRO2200136 | 60 | 12 | 17 | 6 | £390.48 | 5 days | |
| PRO2200133 | 60 | 2.5 to 3 | 17 | 6 | £390.48 | 5 days | |
| PRO2200014 | 32 | 2.5 to 3 | 7.5 | 2 | £212.41 | 5 days | |
| PRO2200020 | 50 | 7 | 12 | 4 | £238.05 | 5 days | |
| PRO2200033 | 80 | 1.8 | 27 | 8 | £238.05 | 5 days | |
| PRO2200075 | 80 | 3 to 4 | 27 | 8 | £482.69 | 5 days | |
| PRO2200066 | 60 | 6 | 17 | 6 | £459.61 | 5 days | |
| PRO2200048 | 60 | 10 | 17 | 6 | £263.74 | 5 days | |
| PRO2200107 | 35 | 4 to 5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200135 | 32 | 1.8 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200069 | 50 | 5 to 5.5 | 12 | 4 | £459.61 | 5 days | |
| PRO2200022 | 35 | 5 to 5.5 | 9 | 2 | £238.05 | 5 days | |
| PRO2200027 | 50 | 4 to 5 | 12 | 4 | £238.05 | 5 days |
