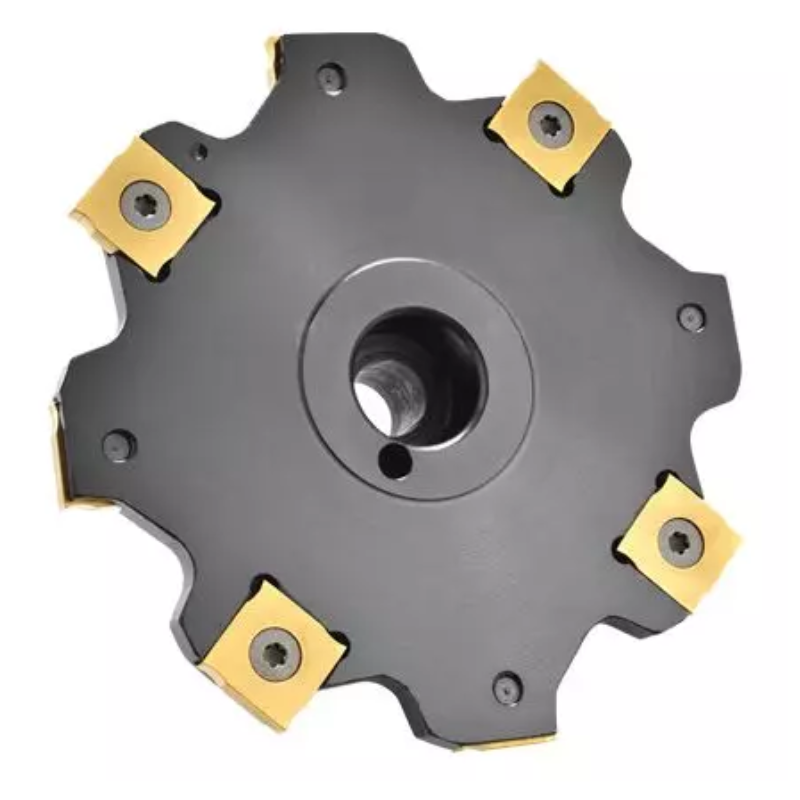

Y.T. Indexable T-Slot Cutter (3TS) - Metric - 80 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 4mm (3T2580-R4)
| Saw Diameter (D) | 80 |
| Insert Width (AE) | 4 |
| Cutting Depth (AR) | 27 |
| Number Of Teeth (Z) | 8 |
| Holder | CB3 Holder |
| Neck Thickness (d1) | 25 |
Learn more about Klarna
The Y.T. Indexable T-Slot Cutter (3TS) is a metric-grade milling solution engineered for high-precision T-slot work using SNGX/SNGW inserts with a 4 mm width. With an 80 mm saw diameter, it delivers a stable cutting path and quick insert exchanges to keep production moving.
- Diameter: 80 mm saw diameter for a stable cutting envelope in T-slot milling.
- Insert compatibility: Designed to pair with SNGX/SNGW inserts, aligning with common tooling ecosystems.
- Insert width: 4 mm insert width supports precise slot dimensions.
- Indexable design: Replaceable inserts enable fast changes without needing a full cutter swap.
- Connection design: Tapered-polygon connection provides precise center positioning, boosting machining accuracy and tool life.
- Chip evacuation and efficiency: Optimized cutting angle and chip removal design improve material removal efficiency and surface finish.
This cutter delivers dependable, repeatable T-slot milling performance with minimal downtime. The indexable inserts and robust connection geometry help maintain tight tolerances, while compatibility with SNGX/SNGW inserts and 4 mm width supports flexible, economical tooling across CAPTO-compatible shank configurations. Operators can expect smoother operations, longer tool life, and consistent results across varying workpiece materials.
| Saw Diameter (D) | 80 |
| Insert Width (AE) | 4 |
| Cutting Depth (AR) | 27 |
| Number Of Teeth (Z) | 8 |
| Holder | CB3 Holder |
| Neck Thickness (d1) | 25 |
| Blade Thickness (P) | 3.4 |
| KG | 0.13 |
| MAX RPM | 14000 |
| Insert SNGX / SNGW | 1102 |
| Wrench (Sold Seperatly) | T9354 |
| Screw | 908-T9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable T-Slot Cutter's - Metric
View full collection →You are viewing PRO2200141. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Width (AE) | Cutting Depth (AR) | Number Of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2200102 | 32 | 1.4 to 1.5 | 7.5 | 2 | £510.67 | 5 days | |
| PRO2200085 | 32 | 1.6 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200135 | 32 | 1.8 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200139 | 32 | 2 to 2.5 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200014 | 32 | 2.5 to 3 | 7.5 | 2 | £212.41 | 5 days | |
| PRO2200057 | 32 | 3 to 4 | 7.5 | 2 | £263.74 | 5 days | |
| PRO2200081 | 32 | 4 to 5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200065 | 32 | 5 to 5.5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200103 | 35 | 1.4 to 1.5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200094 | 35 | 1.6 | 9 | 2 | £482.69 | 5 days | |
| PRO2200127 | 35 | 1.8 | 9 | 2 | £306.78 | 5 days | |
| PRO2200083 | 35 | 2 to 2.5 | 9 | 2 | £459.61 | 5 days | |
| PRO2200004 | 35 | 2.5 to 3 | 9 | 2 | £212.41 | 5 days | |
| PRO2200119 | 35 | 3 to 4 | 9 | 2 | £256.81 | 5 days | |
| PRO2200107 | 35 | 4 to 5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200022 | 35 | 5 to 5.5 | 9 | 2 | £238.05 | 5 days | |
| PRO2200045 | 35 | 6 | 9 | 2 | £263.74 | 5 days | |
| PRO2200005 | 35 | 8 | 9 | 2 | £212.41 | 5 days | |
| PRO2200062 | 40 | 1.4 to 1.5 | 11.5 | 4 | £459.61 | 5 days | |
| PRO2200024 | 40 | 1.6 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200122 | 40 | 1.8 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200023 | 40 | 2 to 2.5 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200134 | 40 | 2.5 to 3 | 11.5 | 4 | £390.48 | 5 days | |
| PRO2200044 | 40 | 3 to 4 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200011 | 40 | 4 to 5 | 11.5 | 4 | £212.41 | 5 days | |
| PRO2200121 | 40 | 5 to 5.5 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200100 | 40 | 6 | 11.5 | 4 | £510.67 | 5 days | |
| PRO2200051 | 40 | 8 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200125 | 50 | 1.4 to 1.5 | 12 | 4 | £256.81 | 5 days | |
| PRO2200116 | 50 | 1.6 | 12 | 4 | £589.88 | 5 days | |
| PRO2200001 | 50 | 1.8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200039 | 50 | 2 to 2.5 | 12 | 4 | £250.04 | 5 days | |
| PRO2200113 | 50 | 2.5 to 3 | 12 | 4 | £536.20 | 5 days | |
| PRO2200131 | 50 | 3 to 4 | 12 | 4 | £306.78 | 5 days | |
| PRO2200027 | 50 | 4 to 5 | 12 | 4 | £238.05 | 5 days | |
| PRO2200069 | 50 | 5 to 5.5 | 12 | 4 | £459.61 | 5 days | |
| PRO2200132 | 60 | 1.4 to 1.5 | 17 | 6 | £306.78 | 5 days | |
| PRO2200036 | 60 | 1.6 | 17 | 6 | £238.05 | 5 days | |
| PRO2200104 | 60 | 1.8 | 17 | 6 | £510.67 | 5 days | |
| PRO2200054 | 60 | 2 to 2.5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200133 | 60 | 2.5 to 3 | 17 | 6 | £390.48 | 5 days | |
| PRO2200140 | 60 | 3 to 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200041 | 60 | 4 to 5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200017 | 60 | 5 to 5.5 | 17 | 6 | £212.41 | 5 days | |
| PRO2200084 | 80 | 1.4 to 1.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200110 | 80 | 1.6 | 27 | 8 | £510.67 | 5 days | |
| PRO2200033 | 80 | 1.8 | 27 | 8 | £238.05 | 5 days | |
| PRO2200128 | 80 | 2 to 2.5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200078 | 80 | 2.5 to 3 | 27 | 8 | £530.98 | 5 days | |
| PRO2200075 | 80 | 3 to 4 | 27 | 8 | £482.69 | 5 days | |
| PRO2200097 | 80 | 4 to 5 | 27 | 8 | £530.98 | 5 days | |
| PRO2200088 | 80 | 5 to 5.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200061 | 50 | 4 | 12 | 4 | £276.92 | 5 days | |
| PRO2200030 | 50 | 5 | 12 | 4 | £238.05 | 5 days | |
| PRO2200064 | 50 | 6 | 12 | 4 | £459.61 | 5 days | |
| PRO2200020 | 50 | 7 | 12 | 4 | £238.05 | 5 days | |
| PRO2200003 | 50 | 8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200060 | 50 | 10 | 12 | 4 | £276.92 | 5 days | |
| PRO2200008 | 50 | 12 | 12 | 4 | £212.41 | 5 days | |
| PRO2200130 | 60 | 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200072 | 60 | 5 | 17 | 6 | £459.61 | 5 days | |
| PRO2200066 | 60 | 6 | 17 | 6 | £459.61 | 5 days | |
| PRO2200137 | 60 | 7 | 17 | 6 | £390.48 | 5 days | |
| PRO2200123 | 60 | 8 | 17 | 6 | £256.81 | 5 days | |
| PRO2200048 | 60 | 10 | 17 | 6 | £263.74 | 5 days | |
| PRO2200136 | 60 | 12 | 17 | 6 | £390.48 | 5 days | |
| PRO2200141 Viewing | 80 | 4 | 27 | 8 | £398.82 | 5 days | |
| PRO2200142 | 80 | 5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200144 | 80 | 6 | 27 | 8 | £306.78 | 5 days | |
| PRO2200143 | 80 | 7 | 27 | 8 | £364.99 | 5 days | |
| PRO2200145 | 80 | 8 | 27 | 8 | £398.82 | 5 days | |
| PRO2200120 | 80 | 10 | 27 | 8 | £256.81 | 5 days | |
| PRO2200129 | 80 | 12 | 27 | 8 | £306.78 | 5 days |
