Y.T. Indexable T-Slot Cutter (3TS) - Metric - 60 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 12mm (3TS2560-12)
| Saw Diameter (D) | 60 |
| Insert Width (AE) | 12 |
| Cutting Depth (AR) | 17 |
| Number Of Teeth (Z) | 6 |
Learn more about Klarna
Description

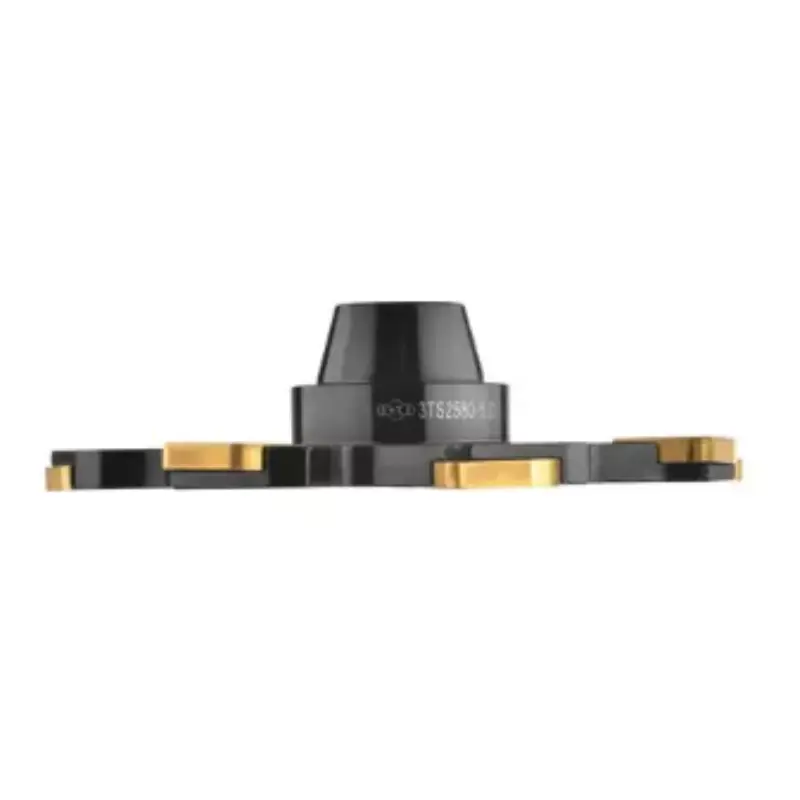

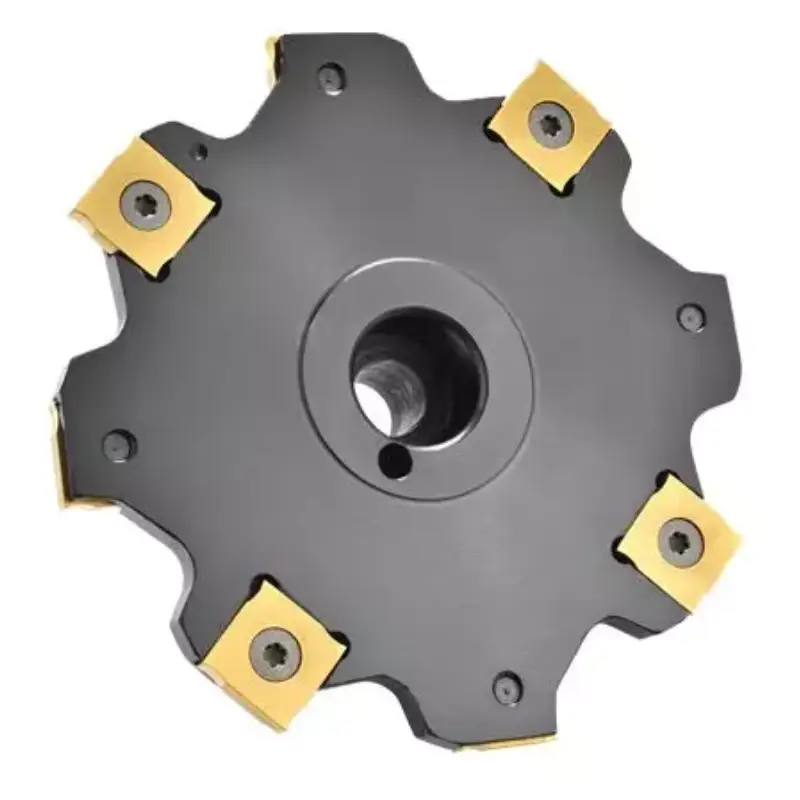

The Y.T. Indexable T-Slot Cutter (model 3TS2580-7.0) is a precision metric cutting tool engineered for consistent T-slot machining using SNGX and SNGW inserts. Built to integrate directly into existing CNC and manual workflows, it delivers reliable dimensional accuracy and rapid tool rotation for machining environments that prioritize uptime.
- Cutting Diameter: 60 mm saw diameter machined to metric standards for precise T-slot profiling.
- Insert Compatibility: Accepts 12 mm wide SNGX and SNGW indexable inserts, enabling individual edge replacement instead of full-body disposal.
- Polygon Connection Mount: Unique tapered-polygon interface guarantees exact center positioning and secure locking for repeatable accuracy across cycles.
- Shank Ecosystem: Interfaces with YIH TROUN T-slot shanks designed for UFO-type inserts; the broader system spans six shanks, nine cutter types, and over 1,400 interchangeable inserts across the CAPTO range.
- Optimized Flute Geometry: Rake angles and clearance surfaces are shaped for efficient chip evacuation, preventing swarf recirculation and stabilizing cutting forces.
- Machining Efficiency: Designed output parameters deliver approximately 300% higher material removal capability compared to traditional solid HSS or welded T-slot cutters under identical operating conditions.
This configuration reduces overall machining cycle time by eliminating complex alignment steps and allowing immediate insert swaps when edges wear. Replaceable inserts lower standby inventory costs while keeping production lines moving during routine maintenance. Consistent center positioning and improved chip clearance protect spindle bearings and workpiece integrity, translating to tighter tolerances and fewer off-spec parts. When integrated with the compatible shank platform, workshops gain a modular tooling approach that scales across multiple bore widths and slot depths without expanding physical storage or requiring extensive recalibration procedures.
Part Numbers
- Protool Part Number
- PRO2200136
- Brand
- Y.T.
- Category
- T-SLOT Cutter
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable T-Slot Cutter's - Metric
View full collection →You are viewing PRO2200136. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Width (AE) | Cutting Depth (AR) | Number Of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2200140 | 60 | 3 to 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200122 | 40 | 1.8 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200120 | 80 | 10 | 27 | 8 | £256.81 | 5 days | |
| PRO2200072 | 60 | 5 | 17 | 6 | £459.61 | 5 days | |
| PRO2200036 | 60 | 1.6 | 17 | 6 | £238.05 | 5 days | |
| PRO2200062 | 40 | 1.4 to 1.5 | 11.5 | 4 | £459.61 | 5 days | |
| PRO2200128 | 80 | 2 to 2.5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200061 | 50 | 4 | 12 | 4 | £276.92 | 5 days | |
| PRO2200143 | 80 | 7 | 27 | 8 | £364.99 | 5 days | |
| PRO2200139 | 32 | 2 to 2.5 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200142 | 80 | 5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200121 | 40 | 5 to 5.5 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200141 | 80 | 4 | 27 | 8 | £398.82 | 5 days | |
| PRO2200045 | 35 | 6 | 9 | 2 | £263.74 | 5 days | |
| PRO2200001 | 50 | 1.8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200060 | 50 | 10 | 12 | 4 | £276.92 | 5 days | |
| PRO2200102 | 32 | 1.4 to 1.5 | 7.5 | 2 | £510.67 | 5 days | |
| PRO2200064 | 50 | 6 | 12 | 4 | £459.61 | 5 days | |
| PRO2200084 | 80 | 1.4 to 1.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200083 | 35 | 2 to 2.5 | 9 | 2 | £459.61 | 5 days | |
| PRO2200051 | 40 | 8 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200030 | 50 | 5 | 12 | 4 | £238.05 | 5 days | |
| PRO2200134 | 40 | 2.5 to 3 | 11.5 | 4 | £390.48 | 5 days | |
| PRO2200123 | 60 | 8 | 17 | 6 | £256.81 | 5 days | |
| PRO2200044 | 40 | 3 to 4 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200088 | 80 | 5 to 5.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200137 | 60 | 7 | 17 | 6 | £390.48 | 5 days | |
| PRO2200127 | 35 | 1.8 | 9 | 2 | £306.78 | 5 days | |
| PRO2200103 | 35 | 1.4 to 1.5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200094 | 35 | 1.6 | 9 | 2 | £482.69 | 5 days | |
| PRO2200132 | 60 | 1.4 to 1.5 | 17 | 6 | £306.78 | 5 days | |
| PRO2200039 | 50 | 2 to 2.5 | 12 | 4 | £250.04 | 5 days | |
| PRO2200100 | 40 | 6 | 11.5 | 4 | £510.67 | 5 days | |
| PRO2200054 | 60 | 2 to 2.5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200065 | 32 | 5 to 5.5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200017 | 60 | 5 to 5.5 | 17 | 6 | £212.41 | 5 days | |
| PRO2200119 | 35 | 3 to 4 | 9 | 2 | £256.81 | 5 days | |
| PRO2200130 | 60 | 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200145 | 80 | 8 | 27 | 8 | £398.82 | 5 days | |
| PRO2200005 | 35 | 8 | 9 | 2 | £212.41 | 5 days | |
| PRO2200104 | 60 | 1.8 | 17 | 6 | £510.67 | 5 days | |
| PRO2200125 | 50 | 1.4 to 1.5 | 12 | 4 | £256.81 | 5 days | |
| PRO2200085 | 32 | 1.6 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200081 | 32 | 4 to 5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200129 | 80 | 12 | 27 | 8 | £306.78 | 5 days | |
| PRO2200024 | 40 | 1.6 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200078 | 80 | 2.5 to 3 | 27 | 8 | £530.98 | 5 days | |
| PRO2200011 | 40 | 4 to 5 | 11.5 | 4 | £212.41 | 5 days | |
| PRO2200041 | 60 | 4 to 5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200131 | 50 | 3 to 4 | 12 | 4 | £306.78 | 5 days | |
| PRO2200097 | 80 | 4 to 5 | 27 | 8 | £530.98 | 5 days | |
| PRO2200057 | 32 | 3 to 4 | 7.5 | 2 | £263.74 | 5 days | |
| PRO2200004 | 35 | 2.5 to 3 | 9 | 2 | £212.41 | 5 days | |
| PRO2200008 | 50 | 12 | 12 | 4 | £212.41 | 5 days | |
| PRO2200110 | 80 | 1.6 | 27 | 8 | £510.67 | 5 days | |
| PRO2200003 | 50 | 8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200023 | 40 | 2 to 2.5 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200144 | 80 | 6 | 27 | 8 | £306.78 | 5 days | |
| PRO2200113 | 50 | 2.5 to 3 | 12 | 4 | £536.20 | 5 days | |
| PRO2200116 | 50 | 1.6 | 12 | 4 | £589.88 | 5 days | |
| PRO2200136 Viewing | 60 | 12 | 17 | 6 | £390.48 | 5 days | |
| PRO2200133 | 60 | 2.5 to 3 | 17 | 6 | £390.48 | 5 days | |
| PRO2200014 | 32 | 2.5 to 3 | 7.5 | 2 | £212.41 | 5 days | |
| PRO2200020 | 50 | 7 | 12 | 4 | £238.05 | 5 days | |
| PRO2200033 | 80 | 1.8 | 27 | 8 | £238.05 | 5 days | |
| PRO2200075 | 80 | 3 to 4 | 27 | 8 | £482.69 | 5 days | |
| PRO2200066 | 60 | 6 | 17 | 6 | £459.61 | 5 days | |
| PRO2200048 | 60 | 10 | 17 | 6 | £263.74 | 5 days | |
| PRO2200107 | 35 | 4 to 5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200135 | 32 | 1.8 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200069 | 50 | 5 to 5.5 | 12 | 4 | £459.61 | 5 days | |
| PRO2200022 | 35 | 5 to 5.5 | 9 | 2 | £238.05 | 5 days | |
| PRO2200027 | 50 | 4 to 5 | 12 | 4 | £238.05 | 5 days |
