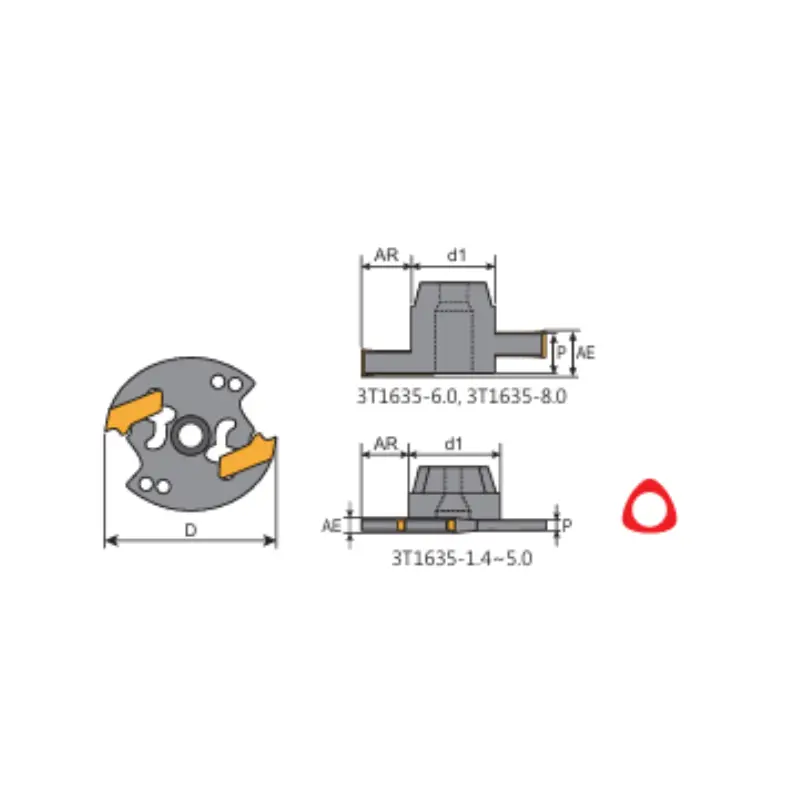

Y.T. Indexable T-Slot Cutter (3T) - Metric - 35 mm Saw Diameter for LNGT Inserts - Insert Width 4 to 5mm (3T1635-4.0)

Engineered for precision T‑slot milling, the Y.T. Indexable T‑Slot Cutter (3T) pairs a 35 mm saw diameter with a dedicated 4–5 mm mounting footprint for LNGT inserts. Built for machine environments requiring tight tolerances and rapid cycle times, this indexable holder maintains consistent cutting conditions while simplifying tool room logistics.

• Saw Diameter & Insert Width: The 35 mm profile seats LNGT inserts measuring 4 to 5 mm wide, preventing lateral play during heavy cuts.
• 3T Indexable Body: Three cutting positions allow operators to index or swap individual segments without replacing the complete cutter, extending service intervals.
• Tapered‑Polygon Interface: Locks the tool into an exact center point, minimizing radial runout and preserving dimensional accuracy throughout prolonged runs.
• UFO Shank Compatibility: Supports up to 400 standard UFO‑type T‑slot insert shanks per body, accepting varying diameters, thicknesses, and carbide grades.
• Geometry & Chip Control: Rake angles and evacuation channels are calibrated to outpace traditional HSS or weld‑on cutters in material removal rate while reducing built-up edge formation.

Machinists reduce unplanned stops by rotating worn indices instead of regrinding or discarding solid tools. The modular shank architecture integrates into a broader CAPTO system covering nine cutter variants and more than 1,400 insert setups, turning fragmented tooling inventories into a unified purchasing stream. Faster chip evacuation keeps cutting forces steady, protecting spindles and workpiece clamping while delivering repeatable tolerance control across high-volume production batches.
