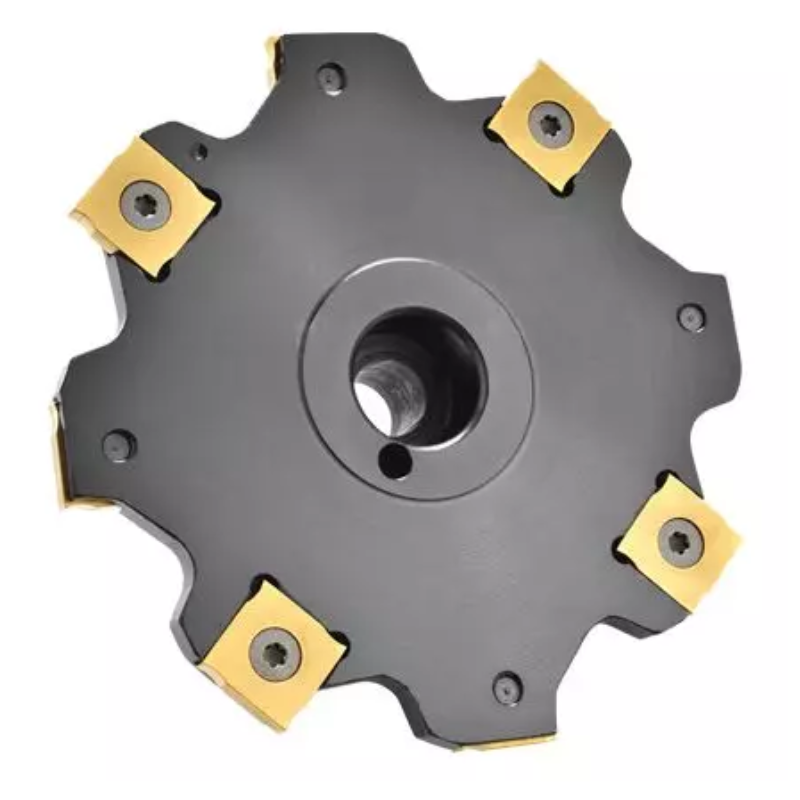

Y.T. Indexable T-Slot Cutter (3TS) - Metric - 80 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 5mm (3T2560-R5)

Y.T. Indexable T-Slot Cutter (3TS) - Metric - 80 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 5mm (3T2560-R5)

SKU:PRO2200142
The UFO T-slot cutters feature a unique tapered-polygon connection design, ensuring precise center positioning that enhances machining accuracy and extends tool life. YIH TROUN offers T-slot shanks... Read more ↓
Specification
Saw Diameter (D)80
Insert Width (AE)5
Cutting Depth (AR)27
Number Of Teeth (Z)8
HolderCB3 Holder
Neck Thickness (d1)25
View all specifications ↓
Download Cutting Data
£306.78
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
View AccessoriesSuitable InsertsUFO Toolholders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The UFO T-slot cutters feature a unique tapered-polygon connection design, ensuring precise center positioning that enhances machining accuracy and extends tool life. YIH TROUN offers T-slot shanks compatible with UFO-type inserts across various diameters, thicknesses, and material grades, with each shank supporting up to 400 UFO inserts. With a total of six shanks covering the entire CAPTO range, users can operate nine different types of cutters, accommodating over 1,400 UFO inserts in total. The optimized cutting angle and chip removal design result in a machining efficiency that is 300% greater compared to traditional HSS or welded T-slot cutters, providing a simple connection and convenient replacement solution.

Saw Diameter (D) 80
Insert Width (AE) 5
Cutting Depth (AR) 27
Number Of Teeth (Z) 8
Holder CB3 Holder
Neck Thickness (d1) 25
Blade Thickness (P) 4.2
KG 0.13
MAX RPM 14000
Insert SNGX / SNGW 1103
Wrench (Sold Seperatly) T9355
Screw 908-T8

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Y.T. Indexable T-Slot Cutter's - Metric

View full collection →

You are viewing PRO2200142. Click any other SKU to view its full details.

Product SKUSaw Diameter (D)Insert Width (AE)Cutting Depth (AR)Number Of Teeth (Z)PriceStock Order
PRO2200102 321.4 to 1.57.52£510.67 5 days
PRO2200085 321.67.52£459.61 5 days
PRO2200135 321.87.52£390.48 5 days
PRO2200139 322 to 2.57.52£390.48 5 days
PRO2200014 322.5 to 37.52£212.41 5 days
PRO2200057 323 to 47.52£263.74 5 days
PRO2200081 324 to 57.52£459.61 5 days
PRO2200065 325 to 5.57.52£459.61 5 days
PRO2200103 351.4 to 1.592£510.67 5 days
PRO2200094 351.692£482.69 5 days
PRO2200127 351.892£306.78 5 days
PRO2200083 352 to 2.592£459.61 5 days
PRO2200004 352.5 to 392£212.41 5 days
PRO2200119 353 to 492£256.81 5 days
PRO2200107 354 to 592£510.67 5 days
PRO2200022 355 to 5.592£238.05 5 days
PRO2200045 35692£263.74 5 days
PRO2200005 35892£212.41 5 days
PRO2200062 401.4 to 1.511.54£459.61 5 days
PRO2200024 401.611.54£238.05 5 days
PRO2200122 401.811.54£256.81 5 days
PRO2200023 402 to 2.511.54£238.05 5 days
PRO2200134 402.5 to 311.54£390.48 5 days
PRO2200044 403 to 411.54£263.74 5 days
PRO2200011 404 to 511.54£212.41 5 days
PRO2200121 405 to 5.511.54£256.81 5 days
PRO2200100 40611.54£510.67 5 days
PRO2200051 40811.54£263.74 5 days
PRO2200125 501.4 to 1.5124£256.81 5 days
PRO2200116 501.6124£589.88 5 days
PRO2200001 501.8124£212.41 5 days
PRO2200039 502 to 2.5124£250.04 5 days
PRO2200113 502.5 to 3124£536.20 5 days
PRO2200131 503 to 4124£306.78 5 days
PRO2200027 504 to 5124£238.05 5 days
PRO2200069 505 to 5.5124£459.61 5 days
PRO2200132 601.4 to 1.5176£306.78 5 days
PRO2200036 601.6176£238.05 5 days
PRO2200104 601.8176£510.67 5 days
PRO2200054 602 to 2.5176£263.74 5 days
PRO2200133 602.5 to 3176£390.48 5 days
PRO2200140 603 to 4176£306.78 5 days
PRO2200041 604 to 5176£263.74 5 days
PRO2200017 605 to 5.5176£212.41 5 days
PRO2200084 801.4 to 1.5278£459.61 5 days
PRO2200110 801.6278£510.67 5 days
PRO2200033 801.8278£238.05 5 days
PRO2200128 802 to 2.5278£306.78 5 days
PRO2200078 802.5 to 3278£530.98 5 days
PRO2200075 803 to 4278£482.69 5 days
PRO2200097 804 to 5278£530.98 5 days
PRO2200088 805 to 5.5278£459.61 5 days
PRO2200061 504124£276.92 5 days
PRO2200030 505124£238.05 5 days
PRO2200064 506124£459.61 5 days
PRO2200020 507124£238.05 5 days
PRO2200003 508124£212.41 5 days
PRO2200060 5010124£276.92 5 days
PRO2200008 5012124£212.41 5 days
PRO2200130 604176£306.78 5 days
PRO2200072 605176£459.61 5 days
PRO2200066 606176£459.61 5 days
PRO2200137 607176£390.48 5 days
PRO2200123 608176£256.81 5 days
PRO2200048 6010176£263.74 5 days
PRO2200136 6012176£390.48 5 days
PRO2200141 804278£398.82 5 days
PRO2200142 Viewing805278£306.78 5 days
PRO2200144 806278£306.78 5 days
PRO2200143 807278£364.99 5 days
PRO2200145 808278£398.82 5 days
PRO2200120 8010278£256.81 5 days
PRO2200129 8012278£306.78 5 days
