Y.T. Indexable T-Slot Cutter (3T) - Metric - 50 mm Saw Diameter for LNGT Inserts - Insert Width 3 to 4mm (3TS2560-10)
SKU:PRO2200131
The Y.T. Indexable T-Slot Cutter (3T) is a metric, 50 mm saw-diameter cutting tool designed for LNGT inserts, with an insert width specification of 3 to 4 mm (3TS2560-10). Its advanced design fea...
Read more ↓
Specification
View all specifications ↓
Download Cutting Data

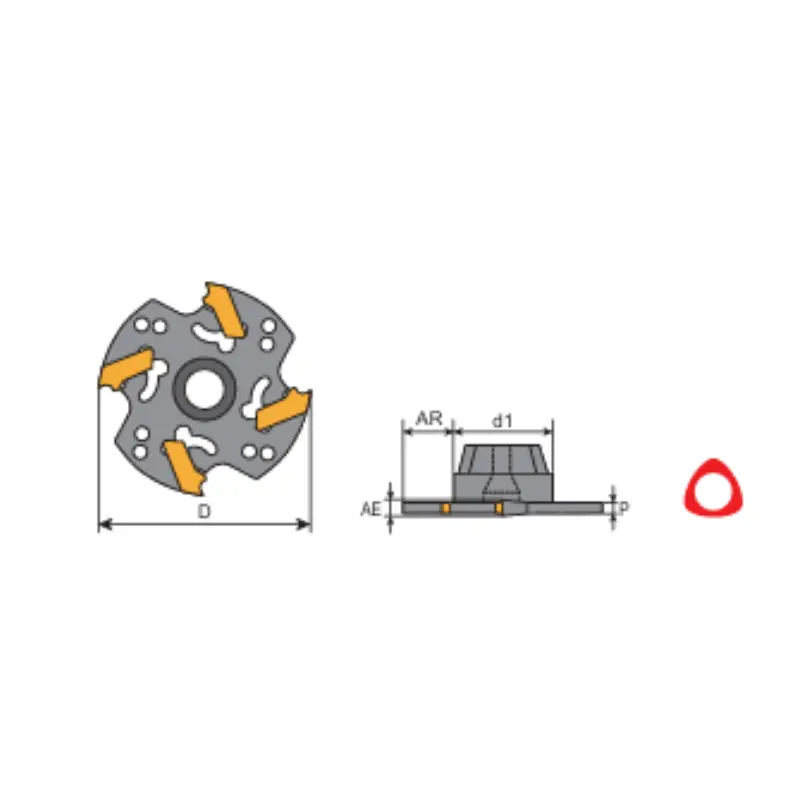

| Saw Diameter (D) | 50 |
| Insert Width (AE) | 3 to 4 |
| Cutting Depth (AR) | 12 |
| Number Of Teeth (Z) | 4 |
| Holder | CB3 Holder |
| Neck Thickness (d1) | 25 |
£306.78
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Y.T. Indexable T-Slot Cutter (3T) is a metric, 50 mm saw-diameter cutting tool designed for LNGT inserts, with an insert width specification of 3 to 4 mm (3TS2560-10). Its advanced design features a tapered-polygon connection for precise center positioning, helping improve machining accuracy and extend tool life.
- Indexable T-slot design: enables quick insert changes and re-indexing to maximize tool life and reduce downtime.
- Unique tapered-polygon connection: ensures precise center positioning, enhancing cutting stability and consistency.
- UFO-type insert ecosystem compatibility: compatible with UFO-type inserts across various diameters, thicknesses, and material grades; each shank supports up to 400 UFO inserts.
- Modular shank system across CAPTO range: part of a six-shank lineup that covers the entire CAPTO range, enabling nine different cutter types and supporting over 1,400 UFO inserts in total.
- Optimized cutting angle and chip removal: designed to maximize material removal efficiency and clear chips effectively, boosting overall productivity.
- Simple connection and replacement solution: delivers straightforward setup and maintenance, reducing setup time and downtime.
This cutter integrates into a broad, modular ecosystem that prioritizes precision, durability, and efficiency. With a 50 mm saw diameter and LNGT insert compatibility, it’s suited for repeatable, high-accuracy T-slot machining, while its reinforced connection design and extensive insert capacity help sustain long production runs with fewer tool changes.
| Saw Diameter (D) | 50 |
| Insert Width (AE) | 3 to 4 |
| Cutting Depth (AR) | 12 |
| Number Of Teeth (Z) | 4 |
| Holder | CB3 Holder |
| Neck Thickness (d1) | 25 |
| Blade Thickness (P) | 2.7 |
| KG | 0.09 |
| MAX RPM | 7000 |
| Insert LNGT | 3030 / 3032 / 3035 |
| Wrench (Sold Seperatly) | 150.10-30 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Y.T. Indexable T-Slot Cutter's - Metric
View full collection →You are viewing PRO2200131. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Width (AE) | Cutting Depth (AR) | Number Of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2200102 | 32 | 1.4 to 1.5 | 7.5 | 2 | £510.67 | 5 days | |
| PRO2200085 | 32 | 1.6 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200135 | 32 | 1.8 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200139 | 32 | 2 to 2.5 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200014 | 32 | 2.5 to 3 | 7.5 | 2 | £212.41 | 5 days | |
| PRO2200057 | 32 | 3 to 4 | 7.5 | 2 | £263.74 | 5 days | |
| PRO2200081 | 32 | 4 to 5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200065 | 32 | 5 to 5.5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200103 | 35 | 1.4 to 1.5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200094 | 35 | 1.6 | 9 | 2 | £482.69 | 5 days | |
| PRO2200127 | 35 | 1.8 | 9 | 2 | £306.78 | 5 days | |
| PRO2200083 | 35 | 2 to 2.5 | 9 | 2 | £459.61 | 5 days | |
| PRO2200004 | 35 | 2.5 to 3 | 9 | 2 | £212.41 | 5 days | |
| PRO2200119 | 35 | 3 to 4 | 9 | 2 | £256.81 | 5 days | |
| PRO2200107 | 35 | 4 to 5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200022 | 35 | 5 to 5.5 | 9 | 2 | £238.05 | 5 days | |
| PRO2200045 | 35 | 6 | 9 | 2 | £263.74 | 5 days | |
| PRO2200005 | 35 | 8 | 9 | 2 | £212.41 | 5 days | |
| PRO2200062 | 40 | 1.4 to 1.5 | 11.5 | 4 | £459.61 | 5 days | |
| PRO2200024 | 40 | 1.6 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200122 | 40 | 1.8 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200023 | 40 | 2 to 2.5 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200134 | 40 | 2.5 to 3 | 11.5 | 4 | £390.48 | 5 days | |
| PRO2200044 | 40 | 3 to 4 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200011 | 40 | 4 to 5 | 11.5 | 4 | £212.41 | 5 days | |
| PRO2200121 | 40 | 5 to 5.5 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200100 | 40 | 6 | 11.5 | 4 | £510.67 | 5 days | |
| PRO2200051 | 40 | 8 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200125 | 50 | 1.4 to 1.5 | 12 | 4 | £256.81 | 5 days | |
| PRO2200116 | 50 | 1.6 | 12 | 4 | £589.88 | 5 days | |
| PRO2200001 | 50 | 1.8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200039 | 50 | 2 to 2.5 | 12 | 4 | £250.04 | 5 days | |
| PRO2200113 | 50 | 2.5 to 3 | 12 | 4 | £536.20 | 5 days | |
| PRO2200131 Viewing | 50 | 3 to 4 | 12 | 4 | £306.78 | 5 days | |
| PRO2200027 | 50 | 4 to 5 | 12 | 4 | £238.05 | 5 days | |
| PRO2200069 | 50 | 5 to 5.5 | 12 | 4 | £459.61 | 5 days | |
| PRO2200132 | 60 | 1.4 to 1.5 | 17 | 6 | £306.78 | 5 days | |
| PRO2200036 | 60 | 1.6 | 17 | 6 | £238.05 | 5 days | |
| PRO2200104 | 60 | 1.8 | 17 | 6 | £510.67 | 5 days | |
| PRO2200054 | 60 | 2 to 2.5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200133 | 60 | 2.5 to 3 | 17 | 6 | £390.48 | 5 days | |
| PRO2200140 | 60 | 3 to 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200041 | 60 | 4 to 5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200017 | 60 | 5 to 5.5 | 17 | 6 | £212.41 | 5 days | |
| PRO2200084 | 80 | 1.4 to 1.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200110 | 80 | 1.6 | 27 | 8 | £510.67 | 5 days | |
| PRO2200033 | 80 | 1.8 | 27 | 8 | £238.05 | 5 days | |
| PRO2200128 | 80 | 2 to 2.5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200078 | 80 | 2.5 to 3 | 27 | 8 | £530.98 | 5 days | |
| PRO2200075 | 80 | 3 to 4 | 27 | 8 | £482.69 | 5 days | |
| PRO2200097 | 80 | 4 to 5 | 27 | 8 | £530.98 | 5 days | |
| PRO2200088 | 80 | 5 to 5.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200061 | 50 | 4 | 12 | 4 | £276.92 | 5 days | |
| PRO2200030 | 50 | 5 | 12 | 4 | £238.05 | 5 days | |
| PRO2200064 | 50 | 6 | 12 | 4 | £459.61 | 5 days | |
| PRO2200020 | 50 | 7 | 12 | 4 | £238.05 | 5 days | |
| PRO2200003 | 50 | 8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200060 | 50 | 10 | 12 | 4 | £276.92 | 5 days | |
| PRO2200008 | 50 | 12 | 12 | 4 | £212.41 | 5 days | |
| PRO2200130 | 60 | 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200072 | 60 | 5 | 17 | 6 | £459.61 | 5 days | |
| PRO2200066 | 60 | 6 | 17 | 6 | £459.61 | 5 days | |
| PRO2200137 | 60 | 7 | 17 | 6 | £390.48 | 5 days | |
| PRO2200123 | 60 | 8 | 17 | 6 | £256.81 | 5 days | |
| PRO2200048 | 60 | 10 | 17 | 6 | £263.74 | 5 days | |
| PRO2200136 | 60 | 12 | 17 | 6 | £390.48 | 5 days | |
| PRO2200141 | 80 | 4 | 27 | 8 | £398.82 | 5 days | |
| PRO2200142 | 80 | 5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200144 | 80 | 6 | 27 | 8 | £306.78 | 5 days | |
| PRO2200143 | 80 | 7 | 27 | 8 | £364.99 | 5 days | |
| PRO2200145 | 80 | 8 | 27 | 8 | £398.82 | 5 days | |
| PRO2200120 | 80 | 10 | 27 | 8 | £256.81 | 5 days | |
| PRO2200129 | 80 | 12 | 27 | 8 | £306.78 | 5 days |
