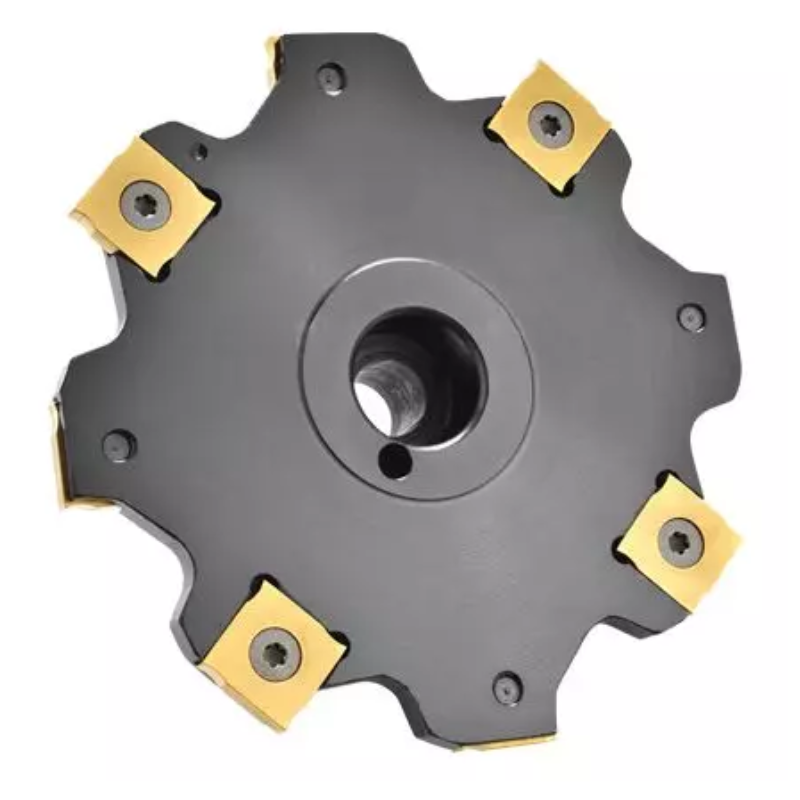

Y.T. Indexable T-Slot Cutter (3TS) - Metric - 60 mm Saw Diameter for SNGX/SNGW Inserts - Insert Width 4mm (3TS2560-4.0)
| Saw Diameter (D) | 60 |
| Insert Width (AE) | 4 |
| Cutting Depth (AR) | 17 |
| Number Of Teeth (Z) | 6 |
Learn more about Klarna
Description
The Y.T. Indexable T-Slot Cutter (3TS2560-8.0) is a precision metric cutting tool designed for efficient T-slot profiling using standard SNGX, SNGW, and UFO-type indexable inserts. Engineered around a 60 mm saw diameter and a tapered-polygon shank interface, it provides accurate slot geometry and rapid insert rotation for continuous production milling.
- Cutter Diameter: 60 mm saw profile optimized specifically for T-slot machining operations
- Insert Compatibility: Accepts SNGX, SNGW, and UFO-type indexable inserts across multiple alloy grades
- Insert Width: Precision-ground pocket accommodates a 4 mm insert width for uniform cut stability
- Mounting Interface: Utilizes a unique tapered-polygon connection that locks the tool to exact center positioning
- Shank Platform: Covers the full CAPTO shank range, with each holder supporting up to 400 UFO inserts and cross-interchanging with nine distinct cutter geometries
- Chip Evacuation Design: Angled rake surfaces and optimized flute clearance streamline chip removal during heavy cuts
This indexable configuration eliminates the need to replace worn cutters entirely, allowing operators to rotate fresh cutting edges in seconds while maintaining original alignment. The tapered mounting system minimizes radial runout, which translates to tighter dimensional tolerances and cleaner T-slot walls. Enhanced chip flow paths reduce secondary cutting and heat generation, extending usable insert life and stabilizing surface finish across cast iron, steel, and alloy workpieces. Consolidating nine cutter profiles onto a standardized six-shank platform also simplifies storage, streamlines tool cribs, and cuts down machine idle time between jobs.
Part Numbers
- Protool Part Number
- PRO2200130
- Brand
- Y.T.
- Category
- T-SLOT Cutter
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Y.T. Indexable T-Slot Cutter's - Metric
View full collection →You are viewing PRO2200130. Click any other SKU to view its full details.
| Product SKU | Saw Diameter (D) | Insert Width (AE) | Cutting Depth (AR) | Number Of Teeth (Z) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| PRO2200140 | 60 | 3 to 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200122 | 40 | 1.8 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200120 | 80 | 10 | 27 | 8 | £256.81 | 5 days | |
| PRO2200072 | 60 | 5 | 17 | 6 | £459.61 | 5 days | |
| PRO2200036 | 60 | 1.6 | 17 | 6 | £238.05 | 5 days | |
| PRO2200062 | 40 | 1.4 to 1.5 | 11.5 | 4 | £459.61 | 5 days | |
| PRO2200128 | 80 | 2 to 2.5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200061 | 50 | 4 | 12 | 4 | £276.92 | 5 days | |
| PRO2200143 | 80 | 7 | 27 | 8 | £364.99 | 5 days | |
| PRO2200139 | 32 | 2 to 2.5 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200142 | 80 | 5 | 27 | 8 | £306.78 | 5 days | |
| PRO2200121 | 40 | 5 to 5.5 | 11.5 | 4 | £256.81 | 5 days | |
| PRO2200141 | 80 | 4 | 27 | 8 | £398.82 | 5 days | |
| PRO2200045 | 35 | 6 | 9 | 2 | £263.74 | 5 days | |
| PRO2200001 | 50 | 1.8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200060 | 50 | 10 | 12 | 4 | £276.92 | 5 days | |
| PRO2200102 | 32 | 1.4 to 1.5 | 7.5 | 2 | £510.67 | 5 days | |
| PRO2200064 | 50 | 6 | 12 | 4 | £459.61 | 5 days | |
| PRO2200084 | 80 | 1.4 to 1.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200083 | 35 | 2 to 2.5 | 9 | 2 | £459.61 | 5 days | |
| PRO2200051 | 40 | 8 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200030 | 50 | 5 | 12 | 4 | £238.05 | 5 days | |
| PRO2200134 | 40 | 2.5 to 3 | 11.5 | 4 | £390.48 | 5 days | |
| PRO2200123 | 60 | 8 | 17 | 6 | £256.81 | 5 days | |
| PRO2200044 | 40 | 3 to 4 | 11.5 | 4 | £263.74 | 5 days | |
| PRO2200088 | 80 | 5 to 5.5 | 27 | 8 | £459.61 | 5 days | |
| PRO2200137 | 60 | 7 | 17 | 6 | £390.48 | 5 days | |
| PRO2200127 | 35 | 1.8 | 9 | 2 | £306.78 | 5 days | |
| PRO2200103 | 35 | 1.4 to 1.5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200094 | 35 | 1.6 | 9 | 2 | £482.69 | 5 days | |
| PRO2200132 | 60 | 1.4 to 1.5 | 17 | 6 | £306.78 | 5 days | |
| PRO2200039 | 50 | 2 to 2.5 | 12 | 4 | £250.04 | 5 days | |
| PRO2200100 | 40 | 6 | 11.5 | 4 | £510.67 | 5 days | |
| PRO2200054 | 60 | 2 to 2.5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200065 | 32 | 5 to 5.5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200017 | 60 | 5 to 5.5 | 17 | 6 | £212.41 | 5 days | |
| PRO2200119 | 35 | 3 to 4 | 9 | 2 | £256.81 | 5 days | |
| PRO2200130 Viewing | 60 | 4 | 17 | 6 | £306.78 | 5 days | |
| PRO2200145 | 80 | 8 | 27 | 8 | £398.82 | 5 days | |
| PRO2200005 | 35 | 8 | 9 | 2 | £212.41 | 5 days | |
| PRO2200104 | 60 | 1.8 | 17 | 6 | £510.67 | 5 days | |
| PRO2200125 | 50 | 1.4 to 1.5 | 12 | 4 | £256.81 | 5 days | |
| PRO2200085 | 32 | 1.6 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200081 | 32 | 4 to 5 | 7.5 | 2 | £459.61 | 5 days | |
| PRO2200129 | 80 | 12 | 27 | 8 | £306.78 | 5 days | |
| PRO2200024 | 40 | 1.6 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200078 | 80 | 2.5 to 3 | 27 | 8 | £530.98 | 5 days | |
| PRO2200011 | 40 | 4 to 5 | 11.5 | 4 | £212.41 | 5 days | |
| PRO2200041 | 60 | 4 to 5 | 17 | 6 | £263.74 | 5 days | |
| PRO2200131 | 50 | 3 to 4 | 12 | 4 | £306.78 | 5 days | |
| PRO2200097 | 80 | 4 to 5 | 27 | 8 | £530.98 | 5 days | |
| PRO2200057 | 32 | 3 to 4 | 7.5 | 2 | £263.74 | 5 days | |
| PRO2200004 | 35 | 2.5 to 3 | 9 | 2 | £212.41 | 5 days | |
| PRO2200008 | 50 | 12 | 12 | 4 | £212.41 | 5 days | |
| PRO2200110 | 80 | 1.6 | 27 | 8 | £510.67 | 5 days | |
| PRO2200003 | 50 | 8 | 12 | 4 | £212.41 | 5 days | |
| PRO2200023 | 40 | 2 to 2.5 | 11.5 | 4 | £238.05 | 5 days | |
| PRO2200144 | 80 | 6 | 27 | 8 | £306.78 | 5 days | |
| PRO2200113 | 50 | 2.5 to 3 | 12 | 4 | £536.20 | 5 days | |
| PRO2200116 | 50 | 1.6 | 12 | 4 | £589.88 | 5 days | |
| PRO2200136 | 60 | 12 | 17 | 6 | £390.48 | 5 days | |
| PRO2200133 | 60 | 2.5 to 3 | 17 | 6 | £390.48 | 5 days | |
| PRO2200014 | 32 | 2.5 to 3 | 7.5 | 2 | £212.41 | 5 days | |
| PRO2200020 | 50 | 7 | 12 | 4 | £238.05 | 5 days | |
| PRO2200033 | 80 | 1.8 | 27 | 8 | £238.05 | 5 days | |
| PRO2200075 | 80 | 3 to 4 | 27 | 8 | £482.69 | 5 days | |
| PRO2200066 | 60 | 6 | 17 | 6 | £459.61 | 5 days | |
| PRO2200048 | 60 | 10 | 17 | 6 | £263.74 | 5 days | |
| PRO2200107 | 35 | 4 to 5 | 9 | 2 | £510.67 | 5 days | |
| PRO2200135 | 32 | 1.8 | 7.5 | 2 | £390.48 | 5 days | |
| PRO2200069 | 50 | 5 to 5.5 | 12 | 4 | £459.61 | 5 days | |
| PRO2200022 | 35 | 5 to 5.5 | 9 | 2 | £238.05 | 5 days | |
| PRO2200027 | 50 | 4 to 5 | 12 | 4 | £238.05 | 5 days |
