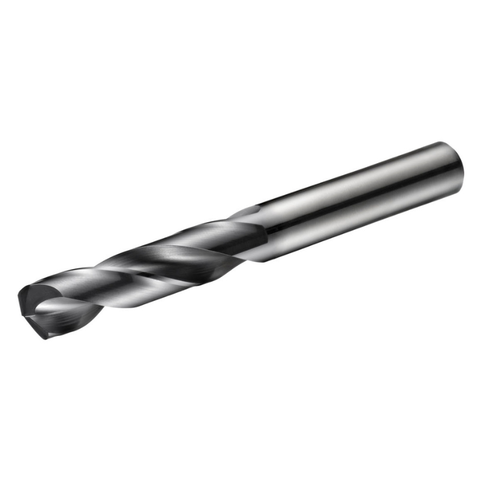

Dormer Pramet R458 3.10 mm CARBIDE TIALN FORCE-X STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Dormer Pramet R458 3.10 mm CARBIDE TIALN FORCE-X STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K

Name: Dormer Pramet R458 3.10 mm CARBIDE TIALN FORCE-X STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K
Brand: Dormer Pramet
SKU: DOR-R4583.1
Price: 35.2 GBP
Availability: InStock

SKU:DOR-R4583.1

Material Compatibility

Specifications at a glance

Type	Short Series
Drill Diameter	3.10
Flute Length	20
Overall Length	62

View all specifications ↓

£35.20

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

The Dormer Pramet R458 3.10 mm carbide TiAlN FORCE-X stepped shank short series drill is built for repeatable, high-precision holemaking. Ideal for engineers, technicians, and hobbyists who need clean, accurate holes in a range of metals, this drill combines a precise guiding point with a durable carbide body and a high-performance coating to extend tool life in demanding work environments. The stepped shank design and DIN 6537 K compatibility help you swap tools quickly and securely, keeping workflows smooth in busy workshops.

140° 4-Facet Split Point: Self-centering start reduces walking and lowers the initial push force for clean entry and accurate hole placement.
TiAlN Coating for Longer Life: Hardened coating extends tool life and maintains performance when drilling harder materials like stainless steel.
CTW Flute Design for Strength and Speed: Reinforced flute geometry supports higher cutting speeds and feeds, improving rigidity and hole quality.

This combination delivers reliable, high-quality holes with tight tolerance (h9) across steel, aluminium, and stainless steel, even at higher speeds. The TiAlN coating minimizes wear, reducing downtime and increasing production efficiency, while the robust carbide core maintains dimensional accuracy through long runs. The DIN 6537 K-compatible stepped shank enables fast, secure tool changes, helping you keep cycles tight and results repeatable.

Part Numbers

Protool Part Number: DOR-R4583.1
Brand: Dormer Pramet
Category: Drill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Dormer Pramet R458 CARBIDE TIALN FORCE-X STEPPED SHANK SHORT SERIES (X3D) DRILLS DIN 6537 K

View full collection →

You are viewing DOR-R4583.1. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-R4583.0	3.00	20	62	6	£35.20	2 days
DOR-R4583.1 Viewing	3.10	20	62	6	£35.20	2 days
DOR-R4581/8	1/8	20	62	6	£35.20	2 days
DOR-R4583.2	3.20	20	62	6	£35.20	2 days
DOR-R4583.3	3.30	20	62	6	£35.20	2 days
DOR-R4583.4	3.40	20	62	6	£35.20	2 days
DOR-R4583.5	3.50	20	62	6	£35.20	2 days
DOR-R4589/64	9/64	20	62	6	£35.20	2 days
DOR-R4583.6	3.60	20	62	6	£35.20	2 days
DOR-R4583.7	3.70	20	62	6	£35.20	2 days
DOR-R4583.73	3.73	24	66	6	£35.20	2 days
DOR-R4583.8	3.80	24	66	6	£35.20	2 days
DOR-R4583.9	3.90	24	66	6	£35.20	2 days
DOR-R4585/32	5/32	24	66	6	£35.20	2 days
DOR-R4584.0	4.00	24	66	6	£35.20	2 days
DOR-R4584.1	4.10	24	66	6	£36.33	2 days
DOR-R4584.2	4.20	24	66	6	£36.33	2 days
DOR-R4584.3	4.30	24	66	6	£36.33	2 days
DOR-R45811/64	11/64	24	66	6	£36.33	2 days
DOR-R4584.4	4.40	24	66	6	£36.33	2 days
DOR-R4584.5	4.50	24	66	6	£36.33	2 days
DOR-R4584.6	4.60	24	66	6	£36.33	2 days
DOR-R4584.7	4.70	24	66	6	£36.33	2 days
DOR-R4583/16	3/16	28	66	6	£36.33	2 days
DOR-R4584.8	4.80	28	66	6	£36.33	2 days
DOR-R4584.9	4.90	28	66	6	£36.33	2 days
DOR-R4585.0	5.00	28	66	6	£36.33	2 days
DOR-R4585.1	5.10	28	66	6	£36.33	2 days
DOR-R45813/64	13/64	28	66	6	£36.33	2 days
DOR-R4585.2	5.20	28	66	6	£36.33	2 days
DOR-R4585.3	5.30	28	66	6	£36.33	2 days
DOR-R4585.4	5.40	28	66	6	£36.33	2 days
DOR-R4585.5	5.50	28	66	6	£36.33	2 days
DOR-R4587/32	7/32	28	66	6	£36.33	2 days
DOR-R4585.6	5.60	28	66	6	£36.33	2 days
DOR-R4585.7	5.70	28	66	6	£36.33	2 days
DOR-R4585.8	5.80	28	66	6	£36.33	2 days
DOR-R4585.9	5.90	28	66	6	£36.33	2 days
DOR-R45815/64	15/64	28	66	6	£36.33	2 days
DOR-R4586.0	6.00	28	66	6	£36.33	2 days
DOR-R4586.1	6.10	34	79	8	£41.78	2 days
DOR-R4586.2	6.20	34	79	8	£41.78	2 days
DOR-R4586.3	6.30	34	79	8	£41.78	2 days
DOR-R4581/4	1/4	34	79	8	£41.78	2 days
DOR-R4586.4	6.40	34	79	8	£41.78	2 days
DOR-R4586.5	6.50	34	79	8	£41.78	2 days
DOR-R4586.6	6.60	34	79	8	£41.78	2 days
DOR-R4586.7	6.70	34	79	8	£41.78	2 days
DOR-R45817/64	17/64	34	79	8	£41.78	2 days
DOR-R4586.8	6.80	34	79	8	£41.78	2 days
DOR-R4586.9	6.90	34	79	8	£41.78	2 days
DOR-R4587.0	7.00	34	79	8	£41.78	2 days
DOR-R4587.1	7.10	41	79	8	£41.78	2 days
DOR-R4589/32	9/32	41	79	8	£41.78	2 days
DOR-R4587.2	7.20	41	79	8	£41.78	2 days
DOR-R4587.3	7.30	41	79	8	£41.78	2 days
DOR-R4587.4	7.40	41	79	8	£41.78	2 days
DOR-R4587.5	7.50	41	79	8	£41.78	2 days
DOR-R45819/64	19/64	41	79	8	£41.78	2 days
DOR-R4587.6	7.60	41	79	8	£41.78	2 days
DOR-R4587.7	7.70	41	79	8	£41.78	2 days
DOR-R4587.8	7.80	41	79	8	£41.78	2 days
DOR-R4587.9	7.90	41	79	8	£41.78	2 days
DOR-R4585/16	5/16	41	79	8	£41.78	2 days
DOR-R4588.0	8.00	41	79	8	£41.78	2 days
DOR-R4588.1	8.10	47	89	10	£47.18	2 days
DOR-R4588.2	8.20	47	89	10	£47.18	2 days
DOR-R4588.3	8.30	47	89	10	£47.18	2 days
DOR-R45821/64	21/64	47	89	10	£47.18	2 days
DOR-R4588.4	8.40	47	89	10	£47.18	2 days
DOR-R4588.5	8.50	47	89	10	£47.18	2 days
DOR-R4588.6	8.60	47	89	10	£47.18	2 days
DOR-R4588.7	8.70	47	89	10	£47.18	2 days
DOR-R45811/32	11/32	47	89	10	£47.18	2 days
DOR-R4588.8	8.80	47	89	10	£47.18	2 days
DOR-R4588.9	8.90	47	89	10	£47.18	2 days
DOR-R4589.0	9.00	47	89	10	£47.18	2 days
DOR-R4589.1	9.10	47	89	10	£47.18	2 days
DOR-R45823/64	23/64	47	89	10	£47.18	2 days
DOR-R4589.2	9.20	47	89	10	£47.18	2 days
DOR-R4589.3	9.30	47	89	10	£47.18	2 days
DOR-R4589.4	9.40	47	89	10	£47.18	2 days
DOR-R4589.5	9.50	47	89	10	£47.18	2 days
DOR-R4583/8	3/8	47	89	10	£47.18	2 days
DOR-R4589.6	9.60	47	89	10	£47.18	2 days
DOR-R4589.7	9.70	47	89	10	£47.18	2 days
DOR-R4589.8	9.80	47	89	10	£47.18	2 days
DOR-R4589.9	9.90	47	89	10	£47.18	2 days
DOR-R45825/64	25/64	47	89	10	£47.18	2 days
DOR-R45810.0	10.00	47	89	10	£47.18	2 days
DOR-R45810.1	10.10	55	102	12	£68.61	2 days
DOR-R45810.2	10.20	55	102	12	£68.61	2 days
DOR-R45810.3	10.30	55	102	12	£68.61	2 days
DOR-R45813/32	13/32	55	102	12	£68.61	2 days
DOR-R45810.4	10.40	55	102	12	£68.61	2 days
DOR-R45810.5	10.50	55	102	12	£68.61	2 days
DOR-R45810.6	10.60	55	102	12	£68.61	2 days
DOR-R45810.7	10.70	55	102	12	£68.61	2 days
DOR-R45827/64	27/64	55	102	12	£68.61	2 days
DOR-R45810.8	10.80	55	102	12	£68.61	2 days
DOR-R45810.9	10.90	55	102	12	£68.61	2 days
DOR-R45811.0	11.00	55	102	12	£68.61	2 days
DOR-R45811.1	11.10	55	102	12	£68.61	2 days
DOR-R4587/16	7/16	55	102	12	£68.61	2 days
DOR-R45811.2	11.20	55	102	12	£68.61	2 days
DOR-R45811.3	11.30	55	102	12	£68.61	2 days
DOR-R45811.4	11.40	55	102	12	£68.61	2 days
DOR-R45811.5	11.50	55	102	12	£68.61	2 days
DOR-R45829/64	29/64	55	102	12	£68.61	2 days
DOR-R45811.6	11.60	55	102	12	£68.61	2 days
DOR-R45811.7	11.70	55	102	12	£68.61	2 days
DOR-R45811.8	11.80	55	102	12	£68.61	2 days
DOR-R45811.9	11.90	55	102	12	£68.61	2 days
DOR-R45815/32	15/32	55	102	12	£68.61	2 days
DOR-R45812.0	12.00	55	102	12	£68.61	2 days
DOR-R45812.1	12.10	60	107	14	£88.86	2 days
DOR-R45812.2	12.20	60	107	14	£88.86	2 days
DOR-R45831/64	31/64	60	107	14	£88.86	2 days
DOR-R45812.5	12.50	60	107	14	£88.86	2 days
DOR-R45812.7	12.70	60	107	14	£88.86	2 days
DOR-R4581/2	1/2	60	107	14	£88.86	2 days
DOR-R45812.8	12.80	60	107	14	£88.86	2 days
DOR-R45813.0	13.00	60	107	14	£88.86	2 days
DOR-R45833/64	33/64	60	107	14	£88.86	2 days
DOR-R45813.3	13.30	60	107	14	£88.86	2 days
DOR-R45817/32	17/32	60	107	14	£88.86	2 days
DOR-R45813.5	13.50	60	107	14	£88.86	2 days
DOR-R45813.8	13.80	60	107	14	£88.86	2 days
DOR-R45835/64	35/64	60	107	14	£88.86	2 days
DOR-R45814.0	14.00	60	107	14	£88.86	2 days
DOR-R45814.25	14.25	65	115	16	£114.17	2 days
DOR-R4589/16	9/16	65	115	16	£114.17	2 days
DOR-R45814.5	14.50	65	115	16	£114.17	2 days
DOR-R45837/64	37/64	65	115	16	£114.17	2 days
DOR-R45814.8	14.80	65	115	16	£114.17	2 days
DOR-R45815.0	15.00	65	115	16	£114.17	2 days
DOR-R45819/32	19/32	65	115	16	£114.17	2 days
DOR-R45815.1	15.10	65	115	16	£114.17	2 days
DOR-R45815.3	15.30	65	115	16	£114.17	2 days
DOR-R45839/64	39/64	65	115	16	£114.17	2 days
DOR-R45815.5	15.50	65	115	16	£114.17	2 days
DOR-R45815.8	15.80	65	115	16	£114.17	2 days
DOR-R4585/8	5/8	65	115	16	£114.17	2 days
DOR-R45816.0	16.00	65	115	16	£114.17	2 days
DOR-R45841/64	41/64	73	123	18	£180.53	2 days
DOR-R45816.5	16.50	73	123	18	£180.53	2 days
DOR-R45821/32	21/32	73	123	18	£180.53	2 days
DOR-R45817.0	17.00	73	123	18	£180.53	2 days
DOR-R45843/64	43/64	73	123	18	£180.53	2 days
DOR-R45811/16	11/16	73	123	18	£180.53	2 days
DOR-R45817.5	17.50	73	123	18	£180.53	2 days
DOR-R45817.8	17.80	73	123	18	£180.53	2 days
DOR-R45845/64	45/64	73	123	18	£180.53	2 days
DOR-R45818.0	18.00	73	123	18	£180.53	2 days
DOR-R45823/32	23/32	79	131	20	£200.78	2 days
DOR-R45818.5	18.50	79	131	20	£200.78	2 days
DOR-R45847/64	47/64	79	131	20	£200.78	2 days
DOR-R45819.0	19.00	79	131	20	£200.78	2 days
DOR-R4583/4	3/4	79	131	20	£200.78	2 days
DOR-R45819.5	19.50	79	131	20	£200.78	2 days
DOR-R45819.8	19.80	79	131	20	£200.78	2 days
DOR-R45820.0	20.00	79	131	20	£200.78	2 days
DOR-R458B	6.05	34	79	8	£41.78	2 days
DOR-R458C	6.15	34	79	8	£41.78	2 days
DOR-R458D	6.25	34	79	8	£41.78	2 days
DOR-R458F	6.53	34	79	8	£41.78	2 days
DOR-R458G	6.63	34	79	8	£41.78	2 days
DOR-R458H	6.76	34	79	8	£41.78	2 days
DOR-R458I	6.91	34	79	8	£41.78	2 days
DOR-R458J	7.04	34	79	8	£41.78	2 days
DOR-R458L	7.37	41	79	8	£41.78	2 days
DOR-R458N	7.67	41	79	8	£41.78	2 days
DOR-R458O	8.03	47	89	10	£47.18	2 days
DOR-R458Q	8.43	47	89	10	£47.18	2 days
DOR-R458R	8.61	47	89	10	£47.18	2 days
DOR-R458S	8.84	47	89	10	£47.18	2 days
DOR-R458T	9.09	47	89	10	£47.18	2 days
DOR-R458U	9.35	47	89	10	£47.18	2 days
DOR-R458V	9.58	47	89	10	£47.18	2 days
DOR-R458X	10.08	55	102	12	£68.61	2 days
DOR-R458Y	10.26	55	102	12	£68.61	2 days
DOR-R458N1	5.79	28	66	6	£36.33	2 days
DOR-R458N2	5.61	28	66	6	£36.33	2 days
DOR-R458N3	5.41	28	66	6	£36.33	2 days
DOR-R458N4	5.31	28	66	6	£36.33	2 days
DOR-R458N5	5.22	28	66	6	£36.33	2 days
DOR-R458N6	5.18	28	66	6	£36.33	2 days
DOR-R458N7	5.11	28	66	6	£36.33	2 days
DOR-R458N8	5.06	28	66	6	£36.33	2 days
DOR-R458N9	4.98	28	66	6	£36.33	2 days
DOR-R458N10	4.92	28	66	6	£36.33	2 days
DOR-R458N11	4.85	28	66	6	£36.33	2 days
DOR-R458N12	4.80	28	66	6	£36.33	2 days
DOR-R458N13	4.70	24	66	6	£36.33	2 days
DOR-R458N14	4.62	24	66	6	£36.33	2 days
DOR-R458N15	4.57	24	66	6	£36.33	2 days
DOR-R458N16	4.50	24	66	6	£36.33	2 days
DOR-R458N17	4.39	24	66	6	£36.33	2 days
DOR-R458N18	4.31	24	66	6	£36.33	2 days
DOR-R458N19	4.22	24	66	6	£36.33	2 days
DOR-R458N20	4.09	24	66	6	£36.33	2 days
DOR-R458N21	4.04	24	66	6	£36.33	2 days
DOR-R458N22	3.99	24	66	6	£35.20	2 days
DOR-R458N23	3.91	24	66	6	£35.20	2 days
DOR-R458N24	3.86	24	66	6	£35.20	2 days
DOR-R458N25	3.80	24	66	6	£35.20	2 days
DOR-R458N26	3.73	24	66	6	£35.20	2 days
DOR-R458N27	3.66	20	62	6	£35.20	2 days
DOR-R458N28	3.57	20	62	6	£35.20	2 days
DOR-R458N29	3.45	20	62	6	£35.20	2 days
DOR-R458N30	3.26	20	62	6	£35.20	2 days

Other sizes in this range

with tools we think you'll like
