Dormer Pramet R458 5.20 mm CARBIDE TIALN FORCE-X STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K

Name: Dormer Pramet R458 5.20 mm CARBIDE TIALN FORCE-X STEPPED SHANK SHORT SERIES (X3D) DRILL DIN 6537 K
Brand: Dormer Pramet
SKU: DOR-R4585.2
Price: 36.33 GBP
Availability: InStock

SKU:DOR-R4585.2

Material Compatibility

Specifications at a glance

Type	Short Series
Drill Diameter	5.20
Flute Length	28
Overall Length	66

View all specifications ↓

£36.33

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

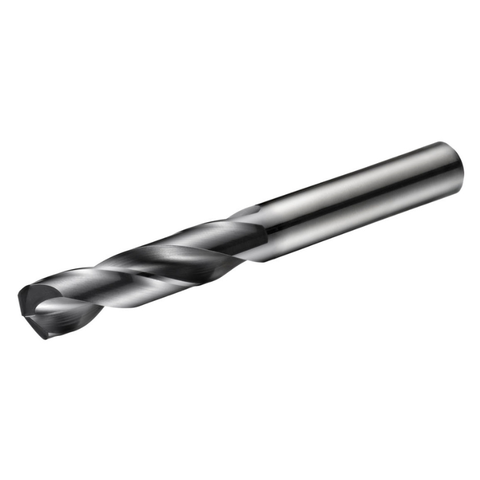

The Dormer Pramet R458 5.20 mm carbide drill is built for precise, reliable metal drilling across a range of materials. With a short stepped shank (X3D) designed to fit standard DIN 6537 K toolholding, it delivers consistent starts and stable performance in demanding jobs. The 140-degree, four-facet split point self-centers and reduces push force, helping you achieve clean holes with less effort.

Coated with Titanium Aluminium Nitride (TiAlN) and machined from premium carbide, this drill combines long life with strong heat resistance. The CTW flute design adds extra rigidity for higher speeds and feeds, enabling high-quality holes even on harder materials like stainless steel, while maintaining h9 hole tolerance for tight, repeatable results.

Self-centering 140° 4‑facet split point: The 140-degree, four-facet geometry promotes easy entry and precise centering, reducing push force and helping you start holes cleanly with minimal wandering.
TiAlN coating for longer life: Titanium aluminium nitride coating provides wear resistance and heat tolerance, extending tool life and maintaining sharpness when drilling harder materials.
CTW flute design and stepped short shank: The reinforced CTW flute geometry and short stepped shank deliver higher rigidity, allowing faster cutting speeds and feeds while ensuring reliable, repeatable performance in DIN 6537 K holders.

In practice, this drill helps you complete precision holes with tight tolerances (h9) faster, with less rework, and with fewer tool changes thanks to its durability and versatility. The R458 drill combines premium carbide with a robust coating and flute design to deliver consistent hole quality and dependable performance across steel, aluminium, and stainless steel workloads.

Part Numbers

Protool Part Number: DOR-R4585.2
Brand: Dormer Pramet
Category: Drill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Dormer Pramet R458 CARBIDE TIALN FORCE-X STEPPED SHANK SHORT SERIES (X3D) DRILLS DIN 6537 K

View full collection →

You are viewing DOR-R4585.2. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-R4583.0	3.00	20	62	6	£35.20	2 days
DOR-R4583.1	3.10	20	62	6	£35.20	2 days
DOR-R4581/8	1/8	20	62	6	£35.20	2 days
DOR-R4583.2	3.20	20	62	6	£35.20	2 days
DOR-R4583.3	3.30	20	62	6	£35.20	2 days
DOR-R4583.4	3.40	20	62	6	£35.20	2 days
DOR-R4583.5	3.50	20	62	6	£35.20	2 days
DOR-R4589/64	9/64	20	62	6	£35.20	2 days
DOR-R4583.6	3.60	20	62	6	£35.20	2 days
DOR-R4583.7	3.70	20	62	6	£35.20	2 days
DOR-R4583.73	3.73	24	66	6	£35.20	2 days
DOR-R4583.8	3.80	24	66	6	£35.20	2 days
DOR-R4583.9	3.90	24	66	6	£35.20	2 days
DOR-R4585/32	5/32	24	66	6	£35.20	2 days
DOR-R4584.0	4.00	24	66	6	£35.20	2 days
DOR-R4584.1	4.10	24	66	6	£36.33	2 days
DOR-R4584.2	4.20	24	66	6	£36.33	2 days
DOR-R4584.3	4.30	24	66	6	£36.33	2 days
DOR-R45811/64	11/64	24	66	6	£36.33	2 days
DOR-R4584.4	4.40	24	66	6	£36.33	2 days
DOR-R4584.5	4.50	24	66	6	£36.33	2 days
DOR-R4584.6	4.60	24	66	6	£36.33	2 days
DOR-R4584.7	4.70	24	66	6	£36.33	2 days
DOR-R4583/16	3/16	28	66	6	£36.33	2 days
DOR-R4584.8	4.80	28	66	6	£36.33	2 days
DOR-R4584.9	4.90	28	66	6	£36.33	2 days
DOR-R4585.0	5.00	28	66	6	£36.33	2 days
DOR-R4585.1	5.10	28	66	6	£36.33	2 days
DOR-R45813/64	13/64	28	66	6	£36.33	2 days
DOR-R4585.2 Viewing	5.20	28	66	6	£36.33	2 days
DOR-R4585.3	5.30	28	66	6	£36.33	2 days
DOR-R4585.4	5.40	28	66	6	£36.33	2 days
DOR-R4585.5	5.50	28	66	6	£36.33	2 days
DOR-R4587/32	7/32	28	66	6	£36.33	2 days
DOR-R4585.6	5.60	28	66	6	£36.33	2 days
DOR-R4585.7	5.70	28	66	6	£36.33	2 days
DOR-R4585.8	5.80	28	66	6	£36.33	2 days
DOR-R4585.9	5.90	28	66	6	£36.33	2 days
DOR-R45815/64	15/64	28	66	6	£36.33	2 days
DOR-R4586.0	6.00	28	66	6	£36.33	2 days
DOR-R4586.1	6.10	34	79	8	£41.78	2 days
DOR-R4586.2	6.20	34	79	8	£41.78	2 days
DOR-R4586.3	6.30	34	79	8	£41.78	2 days
DOR-R4581/4	1/4	34	79	8	£41.78	2 days
DOR-R4586.4	6.40	34	79	8	£41.78	2 days
DOR-R4586.5	6.50	34	79	8	£41.78	2 days
DOR-R4586.6	6.60	34	79	8	£41.78	2 days
DOR-R4586.7	6.70	34	79	8	£41.78	2 days
DOR-R45817/64	17/64	34	79	8	£41.78	2 days
DOR-R4586.8	6.80	34	79	8	£41.78	2 days
DOR-R4586.9	6.90	34	79	8	£41.78	2 days
DOR-R4587.0	7.00	34	79	8	£41.78	2 days
DOR-R4587.1	7.10	41	79	8	£41.78	2 days
DOR-R4589/32	9/32	41	79	8	£41.78	2 days
DOR-R4587.2	7.20	41	79	8	£41.78	2 days
DOR-R4587.3	7.30	41	79	8	£41.78	2 days
DOR-R4587.4	7.40	41	79	8	£41.78	2 days
DOR-R4587.5	7.50	41	79	8	£41.78	2 days
DOR-R45819/64	19/64	41	79	8	£41.78	2 days
DOR-R4587.6	7.60	41	79	8	£41.78	2 days
DOR-R4587.7	7.70	41	79	8	£41.78	2 days
DOR-R4587.8	7.80	41	79	8	£41.78	2 days
DOR-R4587.9	7.90	41	79	8	£41.78	2 days
DOR-R4585/16	5/16	41	79	8	£41.78	2 days
DOR-R4588.0	8.00	41	79	8	£41.78	2 days
DOR-R4588.1	8.10	47	89	10	£47.18	2 days
DOR-R4588.2	8.20	47	89	10	£47.18	2 days
DOR-R4588.3	8.30	47	89	10	£47.18	2 days
DOR-R45821/64	21/64	47	89	10	£47.18	2 days
DOR-R4588.4	8.40	47	89	10	£47.18	2 days
DOR-R4588.5	8.50	47	89	10	£47.18	2 days
DOR-R4588.6	8.60	47	89	10	£47.18	2 days
DOR-R4588.7	8.70	47	89	10	£47.18	2 days
DOR-R45811/32	11/32	47	89	10	£47.18	2 days
DOR-R4588.8	8.80	47	89	10	£47.18	2 days
DOR-R4588.9	8.90	47	89	10	£47.18	2 days
DOR-R4589.0	9.00	47	89	10	£47.18	2 days
DOR-R4589.1	9.10	47	89	10	£47.18	2 days
DOR-R45823/64	23/64	47	89	10	£47.18	2 days
DOR-R4589.2	9.20	47	89	10	£47.18	2 days
DOR-R4589.3	9.30	47	89	10	£47.18	2 days
DOR-R4589.4	9.40	47	89	10	£47.18	2 days
DOR-R4589.5	9.50	47	89	10	£47.18	2 days
DOR-R4583/8	3/8	47	89	10	£47.18	2 days
DOR-R4589.6	9.60	47	89	10	£47.18	2 days
DOR-R4589.7	9.70	47	89	10	£47.18	2 days
DOR-R4589.8	9.80	47	89	10	£47.18	2 days
DOR-R4589.9	9.90	47	89	10	£47.18	2 days
DOR-R45825/64	25/64	47	89	10	£47.18	2 days
DOR-R45810.0	10.00	47	89	10	£47.18	2 days
DOR-R45810.1	10.10	55	102	12	£68.61	2 days
DOR-R45810.2	10.20	55	102	12	£68.61	2 days
DOR-R45810.3	10.30	55	102	12	£68.61	2 days
DOR-R45813/32	13/32	55	102	12	£68.61	2 days
DOR-R45810.4	10.40	55	102	12	£68.61	2 days
DOR-R45810.5	10.50	55	102	12	£68.61	2 days
DOR-R45810.6	10.60	55	102	12	£68.61	2 days
DOR-R45810.7	10.70	55	102	12	£68.61	2 days
DOR-R45827/64	27/64	55	102	12	£68.61	2 days
DOR-R45810.8	10.80	55	102	12	£68.61	2 days
DOR-R45810.9	10.90	55	102	12	£68.61	2 days
DOR-R45811.0	11.00	55	102	12	£68.61	2 days
DOR-R45811.1	11.10	55	102	12	£68.61	2 days
DOR-R4587/16	7/16	55	102	12	£68.61	2 days
DOR-R45811.2	11.20	55	102	12	£68.61	2 days
DOR-R45811.3	11.30	55	102	12	£68.61	2 days
DOR-R45811.4	11.40	55	102	12	£68.61	2 days
DOR-R45811.5	11.50	55	102	12	£68.61	2 days
DOR-R45829/64	29/64	55	102	12	£68.61	2 days
DOR-R45811.6	11.60	55	102	12	£68.61	2 days
DOR-R45811.7	11.70	55	102	12	£68.61	2 days
DOR-R45811.8	11.80	55	102	12	£68.61	2 days
DOR-R45811.9	11.90	55	102	12	£68.61	2 days
DOR-R45815/32	15/32	55	102	12	£68.61	2 days
DOR-R45812.0	12.00	55	102	12	£68.61	2 days
DOR-R45812.1	12.10	60	107	14	£88.86	2 days
DOR-R45812.2	12.20	60	107	14	£88.86	2 days
DOR-R45831/64	31/64	60	107	14	£88.86	2 days
DOR-R45812.5	12.50	60	107	14	£88.86	2 days
DOR-R45812.7	12.70	60	107	14	£88.86	2 days
DOR-R4581/2	1/2	60	107	14	£88.86	2 days
DOR-R45812.8	12.80	60	107	14	£88.86	2 days
DOR-R45813.0	13.00	60	107	14	£88.86	2 days
DOR-R45833/64	33/64	60	107	14	£88.86	2 days
DOR-R45813.3	13.30	60	107	14	£88.86	2 days
DOR-R45817/32	17/32	60	107	14	£88.86	2 days
DOR-R45813.5	13.50	60	107	14	£88.86	2 days
DOR-R45813.8	13.80	60	107	14	£88.86	2 days
DOR-R45835/64	35/64	60	107	14	£88.86	2 days
DOR-R45814.0	14.00	60	107	14	£88.86	2 days
DOR-R45814.25	14.25	65	115	16	£114.17	2 days
DOR-R4589/16	9/16	65	115	16	£114.17	2 days
DOR-R45814.5	14.50	65	115	16	£114.17	2 days
DOR-R45837/64	37/64	65	115	16	£114.17	2 days
DOR-R45814.8	14.80	65	115	16	£114.17	2 days
DOR-R45815.0	15.00	65	115	16	£114.17	2 days
DOR-R45819/32	19/32	65	115	16	£114.17	2 days
DOR-R45815.1	15.10	65	115	16	£114.17	2 days
DOR-R45815.3	15.30	65	115	16	£114.17	2 days
DOR-R45839/64	39/64	65	115	16	£114.17	2 days
DOR-R45815.5	15.50	65	115	16	£114.17	2 days
DOR-R45815.8	15.80	65	115	16	£114.17	2 days
DOR-R4585/8	5/8	65	115	16	£114.17	2 days
DOR-R45816.0	16.00	65	115	16	£114.17	2 days
DOR-R45841/64	41/64	73	123	18	£180.53	2 days
DOR-R45816.5	16.50	73	123	18	£180.53	2 days
DOR-R45821/32	21/32	73	123	18	£180.53	2 days
DOR-R45817.0	17.00	73	123	18	£180.53	2 days
DOR-R45843/64	43/64	73	123	18	£180.53	2 days
DOR-R45811/16	11/16	73	123	18	£180.53	2 days
DOR-R45817.5	17.50	73	123	18	£180.53	2 days
DOR-R45817.8	17.80	73	123	18	£180.53	2 days
DOR-R45845/64	45/64	73	123	18	£180.53	2 days
DOR-R45818.0	18.00	73	123	18	£180.53	2 days
DOR-R45823/32	23/32	79	131	20	£200.78	2 days
DOR-R45818.5	18.50	79	131	20	£200.78	2 days
DOR-R45847/64	47/64	79	131	20	£200.78	2 days
DOR-R45819.0	19.00	79	131	20	£200.78	2 days
DOR-R4583/4	3/4	79	131	20	£200.78	2 days
DOR-R45819.5	19.50	79	131	20	£200.78	2 days
DOR-R45819.8	19.80	79	131	20	£200.78	2 days
DOR-R45820.0	20.00	79	131	20	£200.78	2 days
DOR-R458B	6.05	34	79	8	£41.78	2 days
DOR-R458C	6.15	34	79	8	£41.78	2 days
DOR-R458D	6.25	34	79	8	£41.78	2 days
DOR-R458F	6.53	34	79	8	£41.78	2 days
DOR-R458G	6.63	34	79	8	£41.78	2 days
DOR-R458H	6.76	34	79	8	£41.78	2 days
DOR-R458I	6.91	34	79	8	£41.78	2 days
DOR-R458J	7.04	34	79	8	£41.78	2 days
DOR-R458L	7.37	41	79	8	£41.78	2 days
DOR-R458N	7.67	41	79	8	£41.78	2 days
DOR-R458O	8.03	47	89	10	£47.18	2 days
DOR-R458Q	8.43	47	89	10	£47.18	2 days
DOR-R458R	8.61	47	89	10	£47.18	2 days
DOR-R458S	8.84	47	89	10	£47.18	2 days
DOR-R458T	9.09	47	89	10	£47.18	2 days
DOR-R458U	9.35	47	89	10	£47.18	2 days
DOR-R458V	9.58	47	89	10	£47.18	2 days
DOR-R458X	10.08	55	102	12	£68.61	2 days
DOR-R458Y	10.26	55	102	12	£68.61	2 days
DOR-R458N1	5.79	28	66	6	£36.33	2 days
DOR-R458N2	5.61	28	66	6	£36.33	2 days
DOR-R458N3	5.41	28	66	6	£36.33	2 days
DOR-R458N4	5.31	28	66	6	£36.33	2 days
DOR-R458N5	5.22	28	66	6	£36.33	2 days
DOR-R458N6	5.18	28	66	6	£36.33	2 days
DOR-R458N7	5.11	28	66	6	£36.33	2 days
DOR-R458N8	5.06	28	66	6	£36.33	2 days
DOR-R458N9	4.98	28	66	6	£36.33	2 days
DOR-R458N10	4.92	28	66	6	£36.33	2 days
DOR-R458N11	4.85	28	66	6	£36.33	2 days
DOR-R458N12	4.80	28	66	6	£36.33	2 days
DOR-R458N13	4.70	24	66	6	£36.33	2 days
DOR-R458N14	4.62	24	66	6	£36.33	2 days
DOR-R458N15	4.57	24	66	6	£36.33	2 days
DOR-R458N16	4.50	24	66	6	£36.33	2 days
DOR-R458N17	4.39	24	66	6	£36.33	2 days
DOR-R458N18	4.31	24	66	6	£36.33	2 days
DOR-R458N19	4.22	24	66	6	£36.33	2 days
DOR-R458N20	4.09	24	66	6	£36.33	2 days
DOR-R458N21	4.04	24	66	6	£36.33	2 days
DOR-R458N22	3.99	24	66	6	£35.20	2 days
DOR-R458N23	3.91	24	66	6	£35.20	2 days
DOR-R458N24	3.86	24	66	6	£35.20	2 days
DOR-R458N25	3.80	24	66	6	£35.20	2 days
DOR-R458N26	3.73	24	66	6	£35.20	2 days
DOR-R458N27	3.66	20	62	6	£35.20	2 days
DOR-R458N28	3.57	20	62	6	£35.20	2 days
DOR-R458N29	3.45	20	62	6	£35.20	2 days
DOR-R458N30	3.26	20	62	6	£35.20	2 days

Other sizes in this range

with tools we think you'll like
