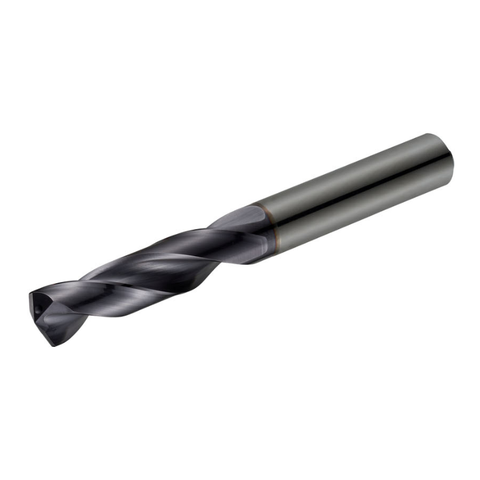

Dormer Pramet R457 9.60 mm CARBIDE TIALN FORCE-X STEPPED SHANK COOLANT FEED SHORT SERIES (X3D) DRILL DIN 6537 K

Name: Dormer Pramet R457 9.60 mm CARBIDE TIALN FORCE-X STEPPED SHANK COOLANT FEED SHORT SERIES (X3D) DRILL DIN 6537 K
Brand: Dormer Pramet
SKU: DOR-R4579.6
Price: 78.17 GBP
Availability: InStock

SKU:DOR-R4579.6

Material Compatibility

Specifications at a glance

Type	Short Series
Drill Diameter	9.60
Flute Length	47
Overall Length	89

View all specifications ↓

£78.17

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

The Dormer Pramet R457 9.60 mm carbide drill is a DIN 6537-K compatible, coolant-fed tool from the FORCE-X line. Built for reliable performance in metalworking—from workshops to production floors—it combines premium carbide, a precision coating, and a smart flute design to deliver consistent, high-quality holes in steel, aluminum, and stainless steel. The short, stepped shank and coolant feed support steady cutting in a range of setups, helping you move from setup to finished hole with confidence.

Designed for precise starts and minimal driving force, the 140-degree, 4-facet split point centers quickly and reduces wandering, so you get accurate hole initiation even in challenging materials. The Titanium Aluminium Nitride (TiAlN) coating extends tool life by resisting wear and helping manage heat, enabling better performance when drilling tougher metals. The CTW flute design combined with coolant delivery provides increased strength and supports higher cutting speeds and feeds, while maintaining effective chip evacuation for smoother, more reliable drilling cycles.

Self-centering 140° 4-facet split point: starts holes cleanly with less push force and reduced wander, improving first-hole accuracy and reducing setup time
TiAlN coating for extended life: delivers greater wear resistance and heat tolerance, enhancing performance on steel, aluminum, and stainless steel
CTW flute design with coolant feed on a short stepped shank: boosts rigidity and cooling efficiency, enabling higher speeds and feeds with reliable chip evacuation

This 9.60 mm carbide drill provides repeatable, high-quality hole quality at the required h9 tolerance, making it a dependable choice for engineers, fabricators, and hobbyists who demand consistent results from first cut to the last. Its rugged construction and intelligent design help reduce downtime, improve workflow, and deliver precise holes with confidence across a variety of metals.

Part Numbers

Protool Part Number: DOR-R4579.6
Brand: Dormer Pramet
Category: Drill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Dormer Pramet R457 CARBIDE TIALN FORCE-X STEPPED SHANK COOLANT FEED SHORT SERIES (X3D) DRILLS DIN 6537 K

View full collection →

You are viewing DOR-R4579.6. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-R4573.0	3.00	20	62	6	£57.93	2 days
DOR-R4573.1	3.10	20	62	6	£57.93	2 days
DOR-R4571/8	1/8	20	62	6	£57.93	2 days
DOR-R4573.2	3.20	20	62	6	£57.93	2 days
DOR-R4573.3	3.30	20	62	6	£57.93	2 days
DOR-R4573.4	3.40	20	62	6	£57.93	2 days
DOR-R4573.5	3.50	20	62	6	£57.93	2 days
DOR-R4579/64	9/64	20	62	6	£57.93	2 days
DOR-R4573.6	3.60	20	62	6	£57.93	2 days
DOR-R4573.7	3.70	20	62	6	£57.93	2 days
DOR-R4573.8	3.80	24	66	6	£57.93	2 days
DOR-R4573.9	3.90	24	66	6	£57.93	2 days
DOR-R4575/32	5/32	24	66	6	£57.93	2 days
DOR-R4574.0	4.00	24	66	6	£57.93	2 days
DOR-R4574.05	4.05	24	66	6	£60.18	2 days
DOR-R4574.1	4.10	24	66	6	£60.18	2 days
DOR-R4574.2	4.20	24	66	6	£60.18	2 days
DOR-R4574.3	4.30	24	66	6	£60.18	2 days
DOR-R45711/64	11/64	24	66	6	£60.18	2 days
DOR-R4574.4	4.40	24	66	6	£60.18	2 days
DOR-R4574.5	4.50	24	66	6	£60.18	2 days
DOR-R4574.6	4.60	24	66	6	£60.18	2 days
DOR-R4574.7	4.70	24	66	6	£60.18	2 days
DOR-R4573/16	3/16	28	66	6	£60.18	2 days
DOR-R4574.8	4.80	28	66	6	£60.18	2 days
DOR-R4574.9	4.90	28	66	6	£60.18	2 days
DOR-R4575.0	5.00	28	66	6	£60.18	2 days
DOR-R4575.05	5.05	28	66	6	£60.18	2 days
DOR-R4575.1	5.10	28	66	6	£60.18	2 days
DOR-R45713/64	13/64	28	66	6	£60.18	2 days
DOR-R4575.2	5.20	28	66	6	£60.18	2 days
DOR-R4575.3	5.30	28	66	6	£60.18	2 days
DOR-R4575.4	5.40	28	66	6	£60.18	2 days
DOR-R4575.5	5.50	28	66	6	£60.18	2 days
DOR-R4577/32	7/32	28	66	6	£60.18	2 days
DOR-R4575.6	5.60	28	66	6	£60.18	2 days
DOR-R4575.7	5.70	28	66	6	£60.18	2 days
DOR-R4575.8	5.80	28	66	6	£60.18	2 days
DOR-R4575.9	5.90	28	66	6	£60.18	2 days
DOR-R45715/64	15/64	28	66	6	£60.18	2 days
DOR-R4576.0	6.00	28	66	6	£60.18	2 days
DOR-R4576.05	6.05	34	79	8	£69.18	2 days
DOR-R4576.1	6.10	34	79	8	£69.18	2 days
DOR-R4576.2	6.20	34	79	8	£69.18	2 days
DOR-R4576.3	6.3	34	79	8	£69.18	2 days
DOR-R4571/4	1/4	34	79	8	£69.18	2 days
DOR-R4576.4	6.40	34	79	8	£69.18	2 days
DOR-R4576.5	6.50	34	79	8	£69.18	2 days
DOR-R4576.6	6.60	34	79	8	£69.18	2 days
DOR-R4576.7	6.70	34	79	8	£69.18	2 days
DOR-R45717/64	17/64	34	79	8	£69.18	2 days
DOR-R4576.8	6.80	34	79	8	£69.18	2 days
DOR-R4576.9	6.90	34	79	8	£69.18	2 days
DOR-R4577.0	7.00	34	79	8	£69.18	2 days
DOR-R4577.1	7.10	41	79	8	£69.18	2 days
DOR-R4579/32	9/32	41	79	8	£69.18	2 days
DOR-R4577.2	7.20	41	79	8	£69.18	2 days
DOR-R4577.3	7.30	41	79	8	£69.18	2 days
DOR-R4577.4	7.40	41	79	8	£69.18	2 days
DOR-R4577.5	7.50	41	79	8	£69.18	2 days
DOR-R45719/64	19/64	41	79	8	£69.18	2 days
DOR-R4577.6	7.60	41	79	8	£69.18	2 days
DOR-R4577.7	7.70	41	79	8	£69.18	2 days
DOR-R4577.8	7.80	41	79	8	£69.18	2 days
DOR-R4577.9	7.90	41	79	8	£69.18	2 days
DOR-R4575/16	5/16	41	79	8	£69.18	2 days
DOR-R4578.0	8.00	41	79	8	£69.18	2 days
DOR-R4578.05	8.05	47	89	10	£78.17	2 days
DOR-R4578.1	8.10	47	89	10	£78.17	2 days
DOR-R4578.2	8.20	47	89	10	£78.17	2 days
DOR-R4578.3	8.30	47	89	10	£78.17	2 days
DOR-R45721/64	21/64	47	89	10	£78.17	2 days
DOR-R4578.4	8.40	47	89	10	£78.17	2 days
DOR-R4578.5	8.50	47	89	10	£78.17	2 days
DOR-R4578.6	8.60	47	89	10	£78.17	2 days
DOR-R4578.7	8.70	47	89	10	£78.17	2 days
DOR-R45711/32	11/32	47	89	10	£78.17	2 days
DOR-R4578.8	8.80	47	89	10	£78.17	2 days
DOR-R4578.9	8.90	47	89	10	£78.17	2 days
DOR-R4579.0	9.00	47	89	10	£78.17	2 days
DOR-R4579.1	9.10	47	89	10	£78.17	2 days
DOR-R45723/64	23/64	47	89	10	£78.17	2 days
DOR-R4579.2	9.20	47	89	10	£78.17	2 days
DOR-R4579.3	9.30	47	89	10	£78.17	2 days
DOR-R4579.4	9.40	47	89	10	£78.17	2 days
DOR-R4579.5	9.50	47	89	10	£78.17	2 days
DOR-R4573/8	3/8	47	89	10	£78.17	2 days
DOR-R4579.6 Viewing	9.60	47	89	10	£78.17	2 days
DOR-R4579.7	9.70	47	89	10	£78.17	2 days
DOR-R4579.8	9.80	47	89	10	£78.17	2 days
DOR-R4579.9	9.90	47	89	10	£78.17	2 days
DOR-R45725/64	25/64	47	89	10	£78.17	2 days
DOR-R45710.0	10.00	47	89	10	£78.17	2 days
DOR-R45710.05	10.05	55	102	12	£113.04	2 days
DOR-R45710.1	10.10	55	102	12	£113.04	2 days
DOR-R45710.2	10.20	55	102	12	£113.04	2 days
DOR-R45710.3	10.30	55	102	12	£113.04	2 days
DOR-R45713/32	13/32	55	102	12	£113.04	2 days
DOR-R45710.4	10.40	55	102	12	£113.04	2 days
DOR-R45710.5	10.50	55	102	12	£113.04	2 days
DOR-R45710.6	10.60	55	102	12	£113.04	2 days
DOR-R45727/64	27/64	55	102	12	£113.04	2 days
DOR-R45710.8	10.80	55	102	12	£113.04	2 days
DOR-R45711.0	11.00	55	102	12	£113.04	2 days
DOR-R4577/16	7/16	55	102	12	£113.04	2 days
DOR-R45711.2	11.20	55	102	12	£113.04	2 days
DOR-R45711.3	11.30	55	102	12	£113.04	2 days
DOR-R45711.4	11.40	55	102	12	£113.04	2 days
DOR-R45711.5	11.50	55	102	12	£113.04	2 days
DOR-R45729/64	29/64	55	102	12	£113.04	2 days
DOR-R45711.6	11.60	55	102	12	£113.04	2 days
DOR-R45711.8	11.80	55	102	12	£113.04	2 days
DOR-R45715/32	15/32	55	102	12	£113.04	2 days
DOR-R45712.0	12.00	55	102	12	£113.04	2 days
DOR-R45712.05	12.05	60	107	14	£146.79	2 days
DOR-R45712.1	12.10	60	107	14	£146.79	2 days
DOR-R45712.2	12.20	60	107	14	£146.79	2 days
DOR-R45731/64	31/64	60	107	14	£146.79	2 days
DOR-R45712.5	12.50	60	107	14	£146.79	2 days
DOR-R45712.7	12.70	60	107	14	£146.79	2 days
DOR-R4571/2	1/2	60	107	14	£146.79	2 days
DOR-R45712.8	12.80	60	107	14	£146.79	2 days
DOR-R45713.0	13.00	60	107	14	£146.79	2 days
DOR-R45713.3	13.30	60	107	14	£146.79	2 days
DOR-R45733/64	33/64	60	107	14	£146.79	2 days
DOR-R45717/32	17/32	60	107	14	£146.79	2 days
DOR-R45713.5	13.50	60	107	14	£146.79	2 days
DOR-R45713.8	13.80	60	107	14	£146.79	2 days
DOR-R45735/64	35/64	60	107	14	£146.79	2 days
DOR-R45714.0	14.00	60	107	14	£146.79	2 days
DOR-R45714.25	14.25	65	115	16	£188.97	2 days
DOR-R4579/16	9/16	65	115	16	£188.97	2 days
DOR-R45714.5	14.50	65	115	16	£188.97	2 days
DOR-R45737/64	37/64	65	115	16	£188.97	2 days
DOR-R45714.8	14.80	65	115	16	£188.97	2 days
DOR-R45715.0	15.00	65	115	16	£188.97	2 days
DOR-R45719/32	19/32	65	115	16	£188.97	2 days
DOR-R45715.1	15.10	65	115	16	£188.97	2 days
DOR-R45715.3	15.30	65	115	16	£188.97	2 days
DOR-R45739/64	39/64	65	115	16	£188.97	2 days
DOR-R45715.5	15.50	65	115	16	£188.97	2 days
DOR-R45715.8	15.80	65	115	16	£188.97	2 days
DOR-R4575/8	5/8	65	115	16	£188.97	2 days
DOR-R45716.0	16.00	65	115	16	£188.97	2 days
DOR-R45741/64	41/64	73	123	18	£297.51	2 days
DOR-R45716.5	16.50	73	123	18	£297.51	2 days
DOR-R45721/32	21/32	73	123	18	£297.51	2 days
DOR-R45717.0	17.00	73	123	18	£297.51	2 days
DOR-R45743/64	43/64	73	123	18	£297.51	2 days
DOR-R45711/16	11/16	73	123	18	£297.51	2 days
DOR-R45717.5	17.50	73	123	18	£297.51	2 days
DOR-R45745/64	45/64	73	123	18	£297.51	2 days
DOR-R45718.0	18.00	73	123	18	£297.51	2 days
DOR-R45723/32	23/32	79	131	20	£330.69	2 days
DOR-R45718.5	18.50	79	131	20	£330.69	2 days
DOR-R45747/64	47/64	79	131	20	£330.69	2 days
DOR-R45718.8	18.80	79	131	20	£330.69	2 days
DOR-R45719.0	19.00	79	131	20	£330.69	2 days
DOR-R4573/4	3/4	79	131	20	£330.69	2 days
DOR-R45719.5	19.50	79	131	20	£330.69	2 days
DOR-R45719.8	19.80	79	131	20	£330.69	2 days
DOR-R45720.0	20.00	79	131	20	£330.69	2 days
DOR-R457A	5.94	28	66	6	£60.18	2 days
DOR-R457B	6.05	34	79	8	£69.18	2 days
DOR-R457C	6.15	34	79	8	£69.18	2 days
DOR-R457D	6.25	34	79	8	£69.18	2 days
DOR-R457F	6.53	34	79	8	£69.18	2 days
DOR-R457G	6.63	34	79	8	£69.18	2 days
DOR-R457I	6.91	34	79	8	£69.18	2 days
DOR-R457J	7.04	41	79	8	£69.18	2 days
DOR-R457N	7.67	41	79	8	£69.18	2 days
DOR-R457O	8.03	47	89	10	£78.17	2 days
DOR-R457P	8.20	47	89	10	£78.17	2 days
DOR-R457Q	8.43	47	89	10	£78.17	2 days
DOR-R457R	8.61	47	89	10	£78.17	2 days
DOR-R457S	8.84	47	89	10	£78.17	2 days
DOR-R457U	9.35	47	89	10	£78.17	2 days
DOR-R457V	9.58	47	89	10	£78.17	2 days
DOR-R457W	9.80	47	89	10	£78.17	2 days
DOR-R457X	10.08	55	102	12	£113.04	2 days
DOR-R457Y	10.26	55	102	12	£113.04	2 days
DOR-R457Z	10.49	55	102	12	£113.04	2 days
DOR-R457N1	5.79	28	66	6	£60.18	2 days
DOR-R457N2	5.61	28	66	6	£60.18	2 days
DOR-R457N3	5.41	28	66	6	£60.18	2 days
DOR-R457N4	5.31	28	66	6	£60.18	2 days
DOR-R457N5	5.22	28	66	6	£60.18	2 days
DOR-R457N6	5.18	28	66	6	£60.18	2 days
DOR-R457N7	5.11	28	66	6	£60.18	2 days
DOR-R457N8	5.06	28	66	6	£60.18	2 days
DOR-R457N9	4.98	28	66	6	£60.18	2 days
DOR-R457N11	4.85	28	66	6	£60.18	2 days
DOR-R457N14	4.62	24	66	6	£60.18	2 days
DOR-R457N15	4.57	24	66	6	£60.18	2 days
DOR-R457N16	4.50	24	66	6	£60.18	2 days
DOR-R457N17	4.39	24	66	6	£60.18	2 days
DOR-R457N18	4.31	24	66	6	£60.18	2 days
DOR-R457N20	4.09	24	66	6	£60.18	2 days
DOR-R457N21	4.04	24	66	6	£60.18	2 days
DOR-R457N22	3.99	24	66	6	£57.93	2 days
DOR-R457N23	3.91	24	66	6	£57.93	2 days
DOR-R457N24	3.86	24	66	6	£57.93	2 days
DOR-R457N25	3.80	24	66	6	£57.93	2 days
DOR-R457N26	3.73	24	66	6	£57.93	2 days
DOR-R457N27	3.66	20	62	6	£57.93	2 days
DOR-R457N28	3.57	20	62	6	£57.93	2 days
DOR-R457N29	3.45	20	62	6	£57.93	2 days
DOR-R457N30	3.26	20	62	6	£57.93	2 days

Other sizes in this range

with tools we think you'll like
